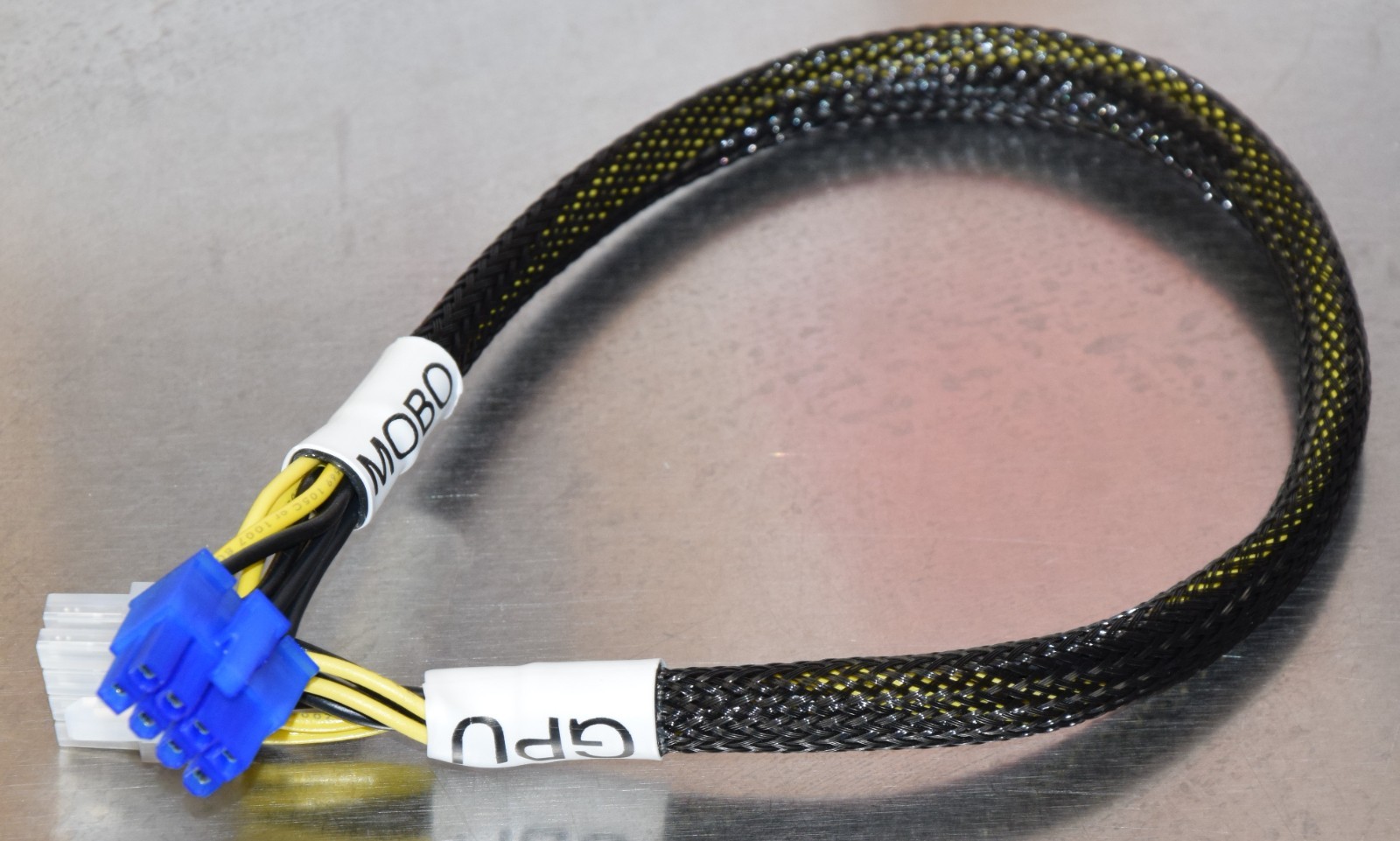

These are custom/professionally built cables I designed to use in PrecisionT3610, T7610, 5810, and 7810 workstations. Electrically they are wired correctly. They do require some careful routing to fit inside. From connector to connector they measure 16" long give or take .25". They should work fine with all cards that use EPS 12V.
These are only for cards that require EPS 12V power. They are designed to only be plugged in one way. The connector with the label GPU plugs into the
Tesla Referral. The blue connector labeled MOBO plugs into the power distribution board. The keying will only allow this cable to be plugged in one way. Installing it the wrong way will damage your workstation and card.
If you are unsure about compatibility there are other cables out there. I do encourage reasonable questions before purchase as I am becoming somewhat of an expert on these cables. This is for the cable only. You will need to source a SATA to 4-pin fan power adapter for fans to cool your GPU.
Current known compatibility list:
Workstations:
- Dell Precision T3610
- Dell Precision T7610
- Dell Precision 5810 (AKA T5810)
- Dell Precision 7810 (AKA T7810)
GPUs:
NOTE: ThisIS NOTcompatible with the
Tesla Referral M10. The
Tesla Referral M10 requires a PCI express 8-pin power connection. I don't have a compatible cable for sale for those cards.
