• 12V POE SPLITTER - Split IEEE802.3af/at POE to 10/100Mbps Data and DC12V 1A power outputs. Also comes with a DC 12V connectors for connecting devices of different DC port.
• WATERPROOF DESIGN- POE port design with waterproof plug, ensure POE Spitter operating safely outdoor. It is suitable for harsh working environments from -4℉ to 131℉ or -20℃ to 55℃
• POE INPUT - Compliant to IEEE802.3af/at standard. Support POE Mode A and POE Mode B, Compatible with more POE Supply Devices. Wide voltage range enables connection with power supplier(poe switch/poe injector) of 44-57V DC voltage.
• SURGE PROTECTION - Reaching 4KV surge protection, the PoE ports owns the capacity to keep the PoE splitter cable from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
• APPLICATION - Plug and play, no configuration is required. Suitable for CCTV surveillance system to power IP camera, other non-PoE devices like microphone, AP, VoIP Phone, etc.
• PACKAGE INCLUDED - 2 x Waterproof POE Splitter and 2 x DC connector

Product description

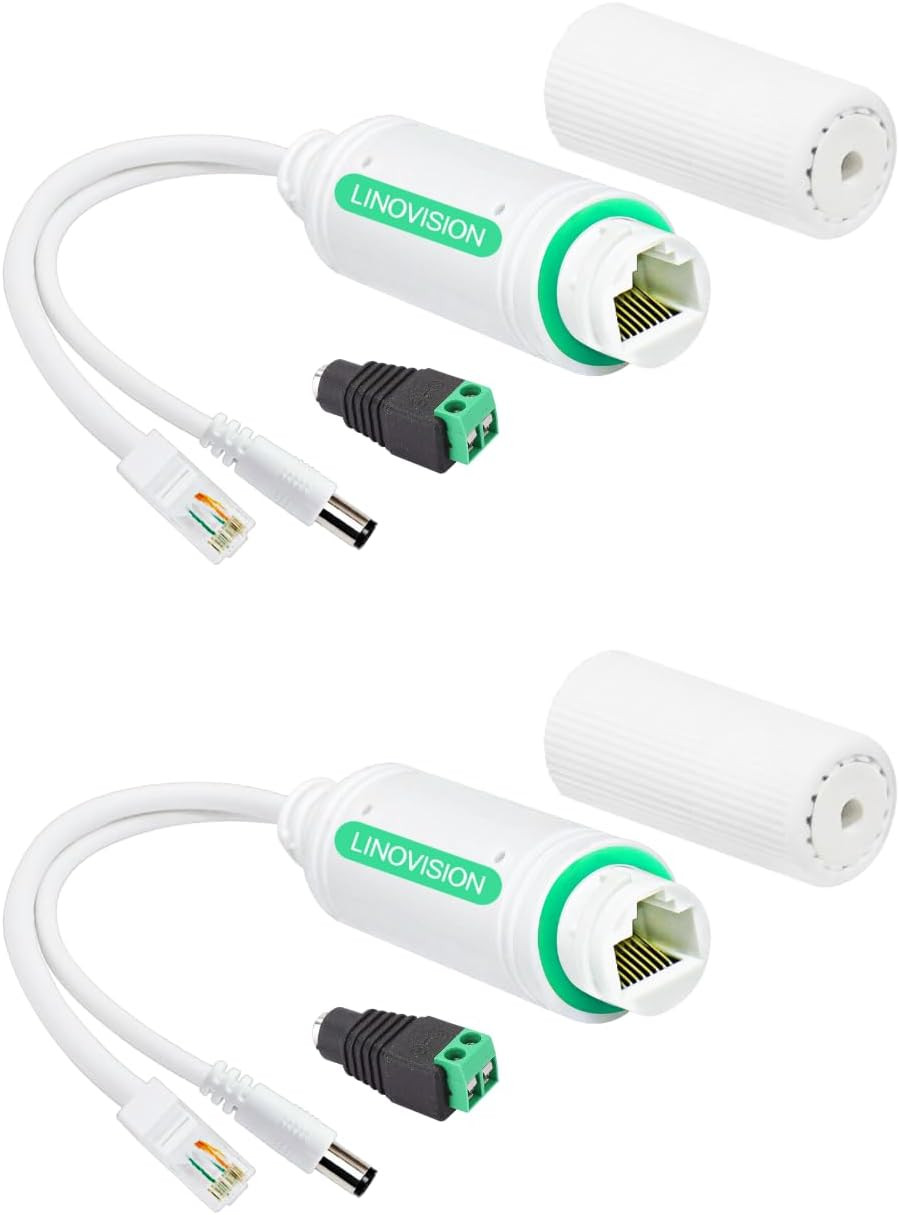

LINOVISION DC12V Waterproof POE Splitter, 10/100Mbps Outdoor Power Over Ethernet Splitter, IEEE802.3af/at POE to DC Power Supply for Security Cameras, AP, VoIP Phone

Outstanding Feature DC Output with DC Connector

Comes with a DC12V connectors for connecting devices of different DC port.

DC Connector can also power 2 DC12V devices at the same time

Waterproof Design

POE port design with waterproof plug, ensure POE Spitter operating safely outdoor.

Compatible with More PoE Supply Devices

This PoE Splitter uses all 8 pins to transmit PoE Power, so it is compatible to both PoE Mode A and PoE Mode B, while some PoE Splitter are working with one mode of PoE Power Supply Devices.

Run DC Devices More Stable and Safer

4KV surge protection, Support short circuit, over current and over temperature protectio, 3500V high-voltage isolation, the splitters could run your devices more stable and safer.

1 Network Devices 2 Non-POE IP Camera 3 Two DC12V Devices Specifications Model POE-SP01P Input IEEE 802.3af/at PoE, 44-57VDC Output 1 x 10/100BASE-T Ethernet , 1 x DC 12V 2A Output with additional two pin DC Connector Output Voltage Default 12VDC± 1.5V, 1A Power Pin Assignment 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-) Power Consumption Standby<1W, Full Load<15W Temperature -4℉ to 131℉ or -20℃ to 55℃ Humidity 5~90%, (non-condensing) Selection Guide of Linovision POE Splitter Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 96 4.1 out of 5 stars 96 4.1 out of 5 stars 96 3.8 out of 5 stars 14 4.2 out of 5 stars 66 4.8 out of 5 stars 10 4.2 out of 5 stars 21 Price $19.99$19.99 $21.99$21.99 $21.99$21.99 $35.00$35.00 — $78.99$78.99 $42.99$42.99 PoE Input IEEE 802.3af/at IEEE 802.3af/at, Max 30W IEEE 802.3af, Max 15W IEEE 802.3af/at IEEE 802.3af/at IEEE802.3af/at/bt IEEE 802.3af/at PoE Output / / / / Passive PoE 12V/24V IEEE802.3bt/at/af PoE / DC Output DC12V 1A Output DC12V 2A Output DC5V 2.4A DC 5/9/12/18V DC 12/24V DC 5/9/12/24V 9V/2.22A or 5V/2A, Max19.98W DC Output Interface DC Jack DC Jack USB C DC Jack DC Jack/Terminal blocks Terminal blocks 2-in-1 USB C Data Speed 10/100Mbps 10/100Mbps 10/100Mbps Gigabit Gigabit Gigabit 10/100Mbps Waterproof ✔ ✘ ✘ ✘ ✘ ✘ ✘ Installation Method Desktop Desktop Desktop Wall-Mount DIN-Rail DIN Rail Desktop
