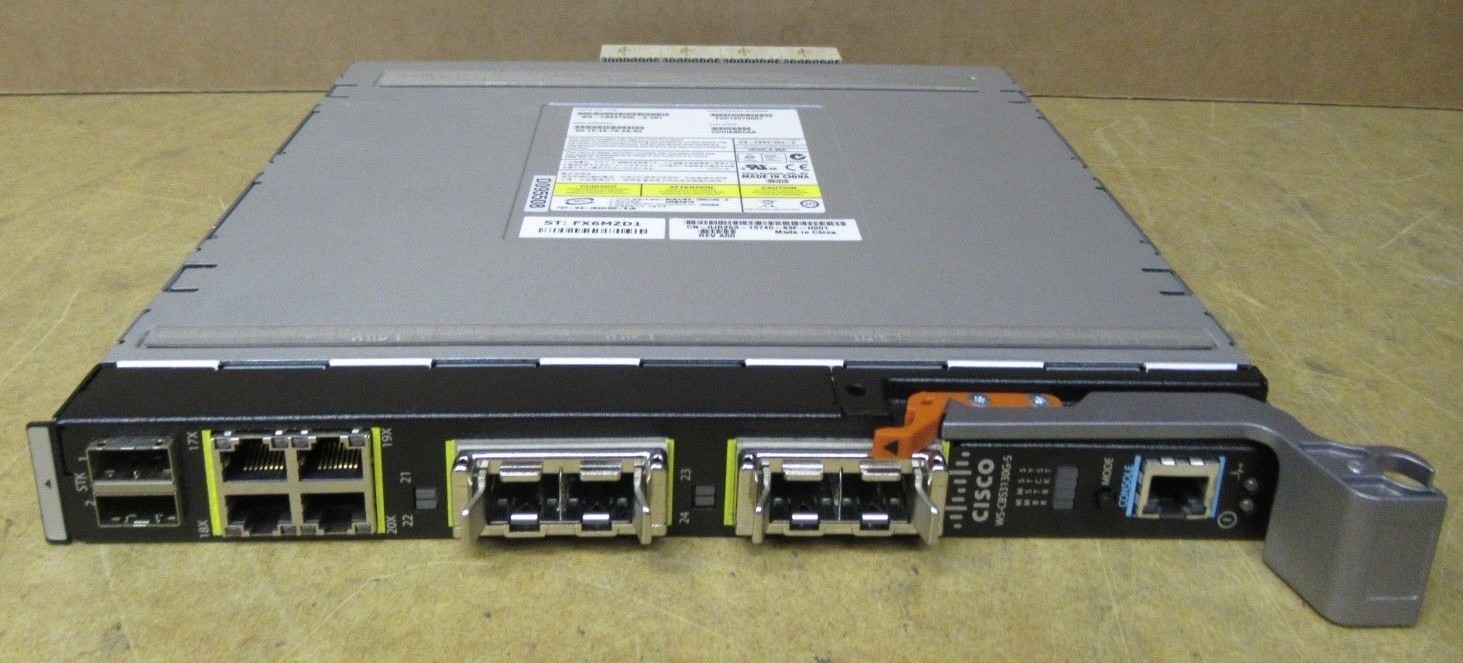

Dell Cisco WS-CBS3130G-S Catalyst Blade Switch 3130G forDell Blade M1000E JR253Model No: WS-CBS3130G-SDell P/N: JR253
In Good ConditionIn Full Working Orderadvipservices Licenseipservices Licenseipbase LicenseIncluded

• 1 xDell Cisco WS-CBS3130G-S Catalyst Blade Switch 3130G for Dell Blade M1000E JR253
• 2 x Cisco Twingig Converter Module - CVR-X2-SFP

OverviewThe Cisco Catalyst Blade Server 3130 represents the networking solution for blade server environments. Built on the market-leading Cisco hardware and Cisco IOS Software, the Cisco Catalyst Blade Switch 3130 is engineered with unique technologies specifically designed to meet the rigors of blade server-based application infrastructure. Specifically, the switch is designed to deliver scalable, high-performance, highly resilient connectivity while supporting ongoing IT initiatives to reduce server infrastructure complexity and total cost of ownership.
Virtual Blade Switch (VBS) TechnologyWith the Cisco Catalyst Blade Switch 3130, Cisco introduces a unique technology called the Virtual Blade Switch (VBS). This switch virtualization technology treats the interconnected physical switches within a rack as one logical switch (Figure 2). This innovation is the foundation of the switches' capability to deliver increased performance and resilience while simplifying operations and management.The VBS delivers a number of specific advantages:

• By significantly simplifying data center design and operations, the VBS reduces infrastructure complexity, improves network resiliency, and increases the operational manageability of the blade-switching environment.
• By providing up to160 Gbps upstream, the VBS provides exceptional performance. In addition, the VBS can double the bandwidth available to a server.
• Because the VBS appears as a single node, both the Layer 2 and Layer 3 topologies are greatly simplified, increasing fabric stability and reducing convergence times after a topology change. The VBS offers several layers of link virtualization, which increases redundancy and available bandwidth.
• The VBS uses the same Cisco IOS Software interface, MIBs, and management tools as the rest of the Cisco Catalyst family, which simplifies operations and management, helping ensure consistent implementation and operation of end-to-end features such as quality of service (QoS).
• A number of VBS features reduce TCO. Link virtualization increases utilization and reduces potential port count. Similarly, the capability to mix-and-match 10 Gigabit Ethernet switches provides customers with a cost-effective migration path. In addition, the advanced operations and troubleshooting tools reduce operating expenses.

Specifications

Description

Specification

Performance

• Up to 128-Gbps switching fabric• Forwarding rate based on 64-byte packets; up to 59.2 million packets per second (mpps)• 256 MB double-data-rate (DDR) synchronous dynamic RAM (SDRAM) and 64 MB Flash memory• Configurable maximum transmission units (MTUs) of up to 9018 bytes (jumbo frames)• MAC, routing, security, and QoS scalability numbers depend on the type of template used in the switch:

Default Template

Access Template

VLAN Template

Routing Template

MAC address

6K

4K

12K

3K

IGMP groups and multicast routes

1K

1K

1K

1K

Total unicast routes

8K

6K

0

11K

Directly connected hosts

6K

4K

0

3K

Indirect routes

2K

2K

0

8K

Security ACEs (access control entries)

1K

2K

1K

1K

QoS ACEs (access control entries)

0.5K

0.5K

0.5K

0.5K

PBR ACEs (access control entries)

0

0.5K

0

0.5K

Connectors and cabling

SKU 1: Cisco Catalyst Blade Switch 3130G

• Supports up to 8 Gigabit Ethernet uplink ports: 4 10/100/1000BASE-T ports and 4 SFP-based Gigabit ports (using Cisco TwinGig Converter Modules in the X2 slots)

SKU 2: Cisco Catalyst Blade Switch 3130X

• Supports up to 4 10/100/1000BASE-T ports and 2 X2 based 10 Gigabit ports• SFP and X2 cage supports only SFP and X2 modules from Cisco

Common on both SKUs

• 4 external 10/100/1000BASE-T ports• Management console port: RJ-45-to-DB9 cable for PC connections• 2 high-speed stack connectors

Power consumption

12V at 6.25A (75W) (max)

Indicators

Total of 19 LEDs on the faceplate:

• 12 LEDs for uplink port status• 5 switch-status LEDs• 2 Dell-specific LEDs

Dimensions (L x W x H)

24.8 cm x 2.9 cm x 23.1 cm

Weight

Approximately 4.0 lb

Environmental ranges

• Operating temperature: 0 to 40°C• Storage temperature: -25 to 70°C• Operating relative humidity: 10 to 85% noncondensing• Storage relative humidity: 5 to 95% noncondensing

Predicted mean time between failure (MTBF)

Approximately 390,000 hours

Management and Standards Support

Description

Specification

MIB support

• BRIDGE-MIB• CISCO-CDP-MIB• CISCO-CLUSTER-MIB• CISCO-CONFIG-MAN-MIB• CISCO-ENTITY-FRU-CONTROL-MIB• CISCO-ENVMON-MIB• CISCO-FLASH-MIB• CISCO-FTP-CLIENT-MIB• CISCO-HSRP-MIB• CISCO-HSRP-EXT-MIB• CISCO-IGMP-FILTER-MIB• CISCO-IMAGE-MIB• CISCO-IP-STAT-MIB• CISCO-L2L3-INTERFACE-CONFIG-MIB• CISCO-POE-EXTENSIONS-MIB• CISCO-MAC-NOTIFICATION-MIB• CISCO-MEMORY-POOL-MIB• CISCO-PAGP-MIB• CISCO-PING-MIB• CISCO-PROCESS-MIB• CISCO-RTTMON-MIB• CISCO-STP-EXTENSIONS-MIB• CISCO-SYSLOG-MIB• CISCO-TCP-MIB• CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB• CISCO-VLAN-MEMBERSHIP-MIB• CISCO-VTP-MIB• ENTITY-MIB• ETHERLIKE-MIB• IF-MIB• IGMP-MIB• IPMROUTE-MIB• OLD-CISCO-CHASSIS-MIB• OLD-CISCO-FLASH-MIB• OLD-CISCO-INTERFACES-MIB• OLD-CISCO-IP-MIB• OLD-CISCO-SYS-MIB• OLD-CISCO-TCP-MIB• OLD-CISCO-TS-MIB• OSPF-MIB (RFC 1253)• PIM-MIB• RFC1213-MIB• RFC1253-MIB• RMON-MIB• RMON2-MIB• SNMP-FRAMEWORK-MIB• SNMP-MPD-MIB• SNMP-NOTIFICATION-MIB• SNMP-TARGET-MIB• SNMPv2-MIB• TCP-MIB• UDP-MIB

Standards

• IEEE 802.1s• IEEE 802.1w• IEEE 802.1x• IEEE 802.3ad• IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports• IEEE 802.1D Spanning Tree Protocol• IEEE 802.1p CoS Prioritization• IEEE 802.1Q VLAN• IEEE 802.3 10BASE-T specification• IEEE 802.3u 100BASE-TX specification• IEEE 802.3ab 1000BASE-T specification• IEEE 802.3z 1000BASE-X specification• 1000BASE-SX• 1000BASE-LX/LH• 10GBASE-SR• 10GBASE-LRM• 10GBASE-CX4• 10GBASE-LX4• 10GBASE-LR• RMON I and II standards• SNMPv1, SNMPv2c, and SNMPv3

Safety and Compliance

Description

Specification

Safety certifications

• UL/CUL Recognition to UL/CSA 60950-1• TUV Bauart to EN 60950-1• CB report and certificate to IEC 60950-1 with all country deviations• CE Marking

Electromagnetic compatibility certifications

• FCC Part 15 Class A• EN 55022 Class A (CISPR22 Class A)• EN55024 (CISPR24)• VCCI Class A• AS/NZS CISPR22 Class A• MIC• China EMC requirements• GOST

Telecommunications

CLEI code

Bootlog

Switch#sh ver

Cisco IOSSoftware, CBS31X0 Software (CBS31X0-UNIVERSAL-M), Version 12.2(50)SE3, RELEASESOFTWARE (fc1)

TechnicalSupport: http://www.cisco.com/techsupport

Copyright (c)1986-2009 by Cisco Systems, Inc.

Compiled Wed22-Jul-09 09:10 by prod_rel_team

Image text-base:0x00003000, data-base: 0x02400000

ROM: Bootstrapprogram is CBS31X0 boot loader

BOOTLDR: CBS31X0Boot Loader (CBS31X0-HBOOT-M) Version 12.2(0.0.951)SE3, CISCO DEVELOPMENT TESTVERSION

Switch uptime is4 minutes

System returnedto ROM by power-on

System image class="MsoNoSpacing">

License Level:ipbase

License Type:Permanent

Next reloadlicense Level: ipbase

ciscoWS-CBS3130G-S (PowerPC405) processor (revision F0) with 262144K bytes ofmemory.

Processor boardID FOC1420H064

Last reset frompower-on

1 VirtualEthernet interface

1 FastEthernetinterface

24 GigabitEthernet interfaces

512K bytes offlash-simulated non-volatile configuration memory.

Base ethernet MACAddress : 04:FE:7F:D1:1B:00

Motherboardserial number : FOC14203EPS

Model revisionnumber : F0

Model number : WS-CBS3130G-S

System serialnumber : FOC1420H064

Top Assembly PartNumber : 800-30087-02

Top AssemblyRevision Number : B0

Version ID : V02

CLEI Code Number : COUIAZMCAA

Hardware BoardRevision Number : 0x03

Switch PortsModel SW Version SW Image

------ ---------- ---------- ----------

* 1 24WS-CBS3130G-S12.2(50)SE3 CBS31X0-UNIVERSAL-M

Switch#sh inv

NAME:"1", DESCR: "WS-CBS3130G-S"

PID:WS-CBS3130G-S , VID: V02, SN:FOC1420H064

NAME:"Switch 1 - Slot 1 - TwinGig Converter Module", DESCR: "TwinGigConverter Module"

PID: 800-27645-02 , VID: B0 , SN: FDO14171J5V

NAME:"Switch 1 - Slot 2 - TwinGig Converter Module", DESCR: "TwinGigConverter Module"

PID:800-27645-02 , VID: B0 , SN:FDO141817T3

Switch#sh lic

Index 1 Feature:advipservices

Period left: 0 minute0 second

Index 2 Feature:ipservices

Period left: 8 weeks 4days

License Type: Evaluation

License State: Active, Not in Use, EULAnot accepted

License Priority: None

License Count: Non-Counted

Index 3 Feature: ipbase

Period left: Life time

License Type: Permanent

License State: Active, In Use

License Priority: Medium

License Count: Non-Counted

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£200 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKTH 208602 - 2
