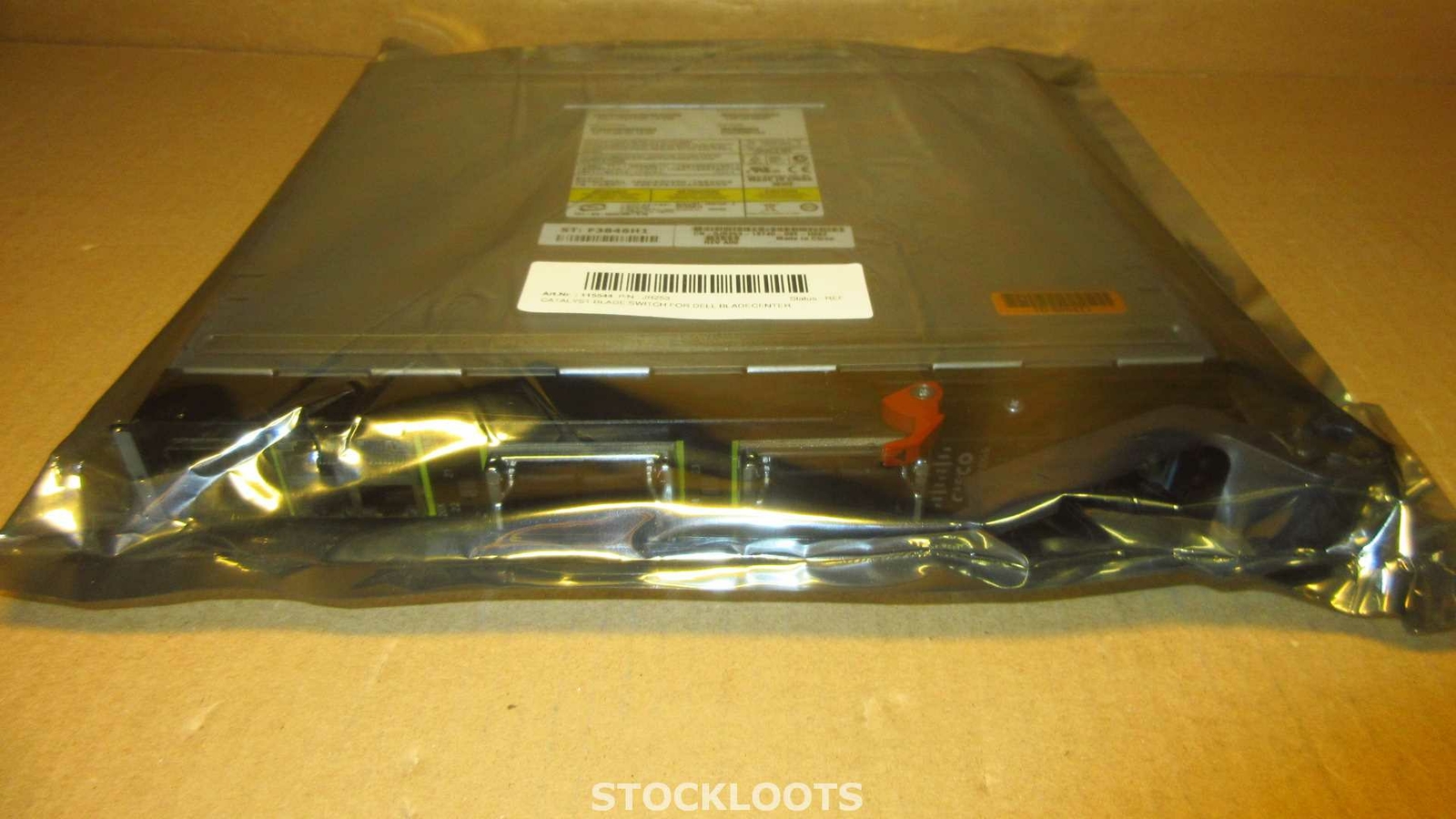

Dell JR253 Cisco WS-CBS3130G-S Blade Switch 3130G for Blade M1000E REFURBISHED
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
REFURBISHED IN ANTI STATIC BAG
EXCLUDING NETWORK CABLES
See photos for actual item!
Price is for 1 item.
Specifications
Description
Specification
Performance
• Up to 128-Gbps switching fabric • Forwarding rate based on 64-byte packets; up to 59.2 million packets per second (mpps) • 256 MB double-data-rate (DDR) synchronous dynamic RAM (SDRAM) and 64 MB Flash memory • Configurable maximum transmission units (MTUs) of up to 9018 bytes (jumbo frames) • MAC, routing, security, and QoS scalability numbers depend on the type of template used in the switch:
Default Template
Access Template
VLAN Template
Routing Template
MAC address
6K
4K
12K
3K
IGMP groups and multicast routes
1K
1K
1K
1K
Total unicast routes
8K
6K
0
11K
Directly connected hosts
6K
4K
0
3K
Indirect routes
2K
2K
0
8K
Security ACEs (access control entries)
1K
2K
1K
1K
QoS ACEs (access control entries)
0.5K
0.5K
0.5K
0.5K
PBR ACEs (access control entries)
0
0.5K
0
0.5K
Connectors and cabling
SKU 1: Cisco Catalyst Blade Switch 3130G
• Supports up to 8 Gigabit Ethernet uplink ports: 4 10/100/1000BASE-T ports and 4 SFP-based Gigabit ports (using Cisco TwinGig Converter Modules in the X2 slots)
SKU 2: Cisco Catalyst Blade Switch 3130X
• Supports up to 4 10/100/1000BASE-T ports and 2 X2 based 10 Gigabit ports • SFP and X2 cage supports only SFP and X2 modules from Cisco
Common on both SKUs
• 4 external 10/100/1000BASE-T ports • Management console port: RJ-45-to-DB9 cable for PC connections • 2 high-speed stack connectors
Power consumption
12V at 6.25A (75W) (max)
Indicators
Total of 19 LEDs on the faceplate:
• 12 LEDs for uplink port status • 5 switch-status LEDs • 2 Dell-specific LEDs
Dimensions (L x W x H)
24.8 cm x 2.9 cm x 23.1 cm
Weight
Approximately 4.0 lb
Environmental ranges
• Operating temperature: 0 to 40°C • Storage temperature: -25 to 70°C • Operating relative humidity: 10 to 85% noncondensing • Storage relative humidity: 5 to 95% noncondensing
Predicted mean time between failure (MTBF)
Approximately 390,000 hours
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
