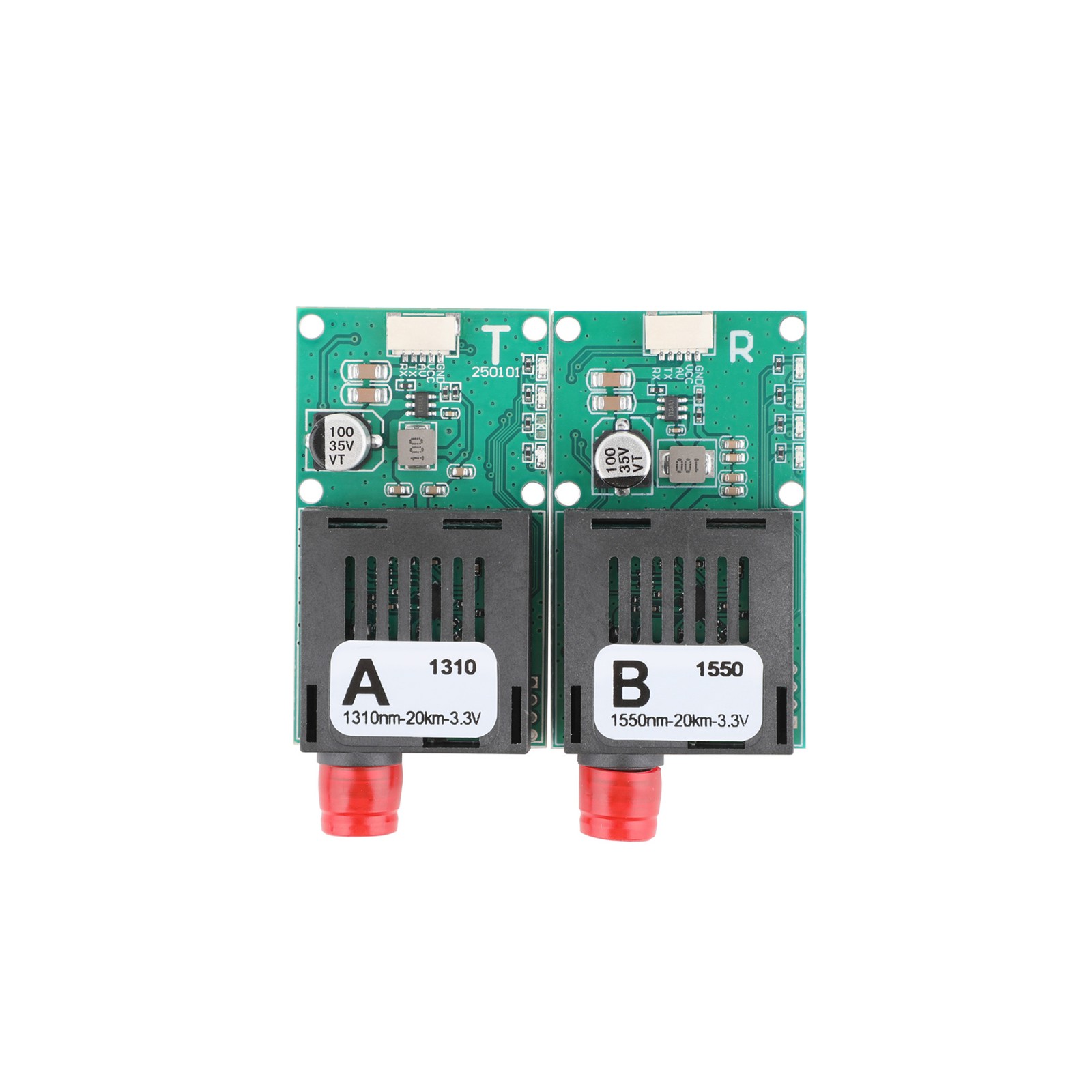

Drone TTL Fiber Optic Transceiver, Sky/Ground End 20/40/60/80/100KM
AP Management: 1
Product Type: Fiber Optic Transceiver
WAN Access Points: 1
Mounting Method: Direct Mount
Model: Sky End A / Ground End B / Sky End A + Ground End B
Package Type: SOP-2
Video Interface: BNC or Pin Pin
Video Input/Output Impedance: 75Ω (Unbalanced)
Video Bandwidth: 8MHz
Video Compatible Formats: PAL, NTSC, SECAM
Video Voltage: 1VP-P
Video Signal-to-Noise Ratio: 70dB
Applicable Cameras: Analog Cameras, CVBS Cameras
Serial Port Type: UART
Baud Rate: 115.2Kbps
Fiber Optic Interface: FC Standard Optical Module 1*9
Transmission Distance: 20KM~100KM
Product Weight: 14.5g
Operating Wavelength:
1. Sky End A 20KM/40KM/60KM/80KM: 1310nm
2. Sky End A 100KM: 1490nm
3. Ground End B 20KM/40KM/60KM/80KM/100KM: 1550nm
4. Sky End A + Ground End B 20KM/40KM/60KM/80KM: 1310/1550nm
5. Sky End A + Ground End B 100KM: 1490nm
1.Long-distance, zero-attenuation transmission: Supports transmission up to 60km (100km optional), with no signal attenuation, real-time low latency, suitable for FPV drones and long-distance inspection, stable and lag-free.
2.Strong anti-interference: Dual-wavelength fiber optic technology, unaffected by electromagnetic interference, stable transmission in deep-sea/high-temperature/high-pressure scenarios, suitable for underwater/exploration robots.
3.Plug and play: Driver-free plug and play, rapid deployment; ultra-lightweight design of only 14.5g, low load, high efficiency and energy saving, extended battery life.
4.Wide compatibility: Compatible with PAL/NTSC/SECAM formats, adaptable to analog/CVBS cameras and UART serial ports, covering multiple industries such as power, surveying, and plant protection.
5.Industrial grade: Uses high-quality chips and FC standard optical modules, 70dB high signal-to-noise ratio, strict quality control, reliable performance guaranteed.
100% brand new and high quality.
Shape and Color: Same as shown in the picture
Type is your choice!!
Quantity is your choice!!
Thank you for your patronage and wish you a pleasant cooperation!!
Note: Due to the characteristics of the product and the measuring tools, plus the pure manual measurement and cutting of the cable, the length may have an error of 1%-5%.
