Dual Compact Flash CF to 44 Pin IDE/PATA 2.5" Adapter Enclosure, Black SD-ADA...
Price: US $19.99

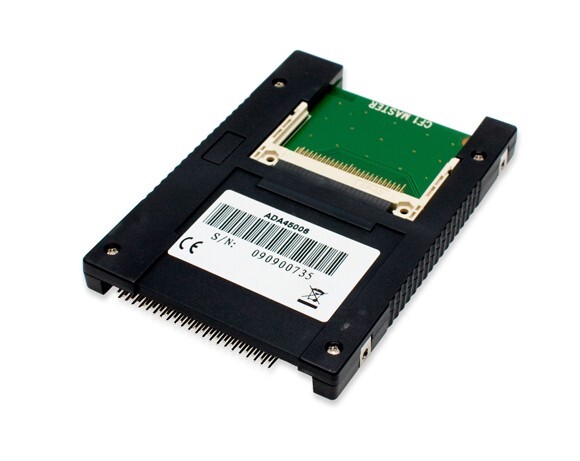

This Syba SD-ADA45006 dual compact flash to 44 Pin IDE 2.5" adapter enclosure allows you to connect a Compact Flash card to a host computer through a 44 Pin IDE connection that lets you use solid state storage in place of a 2.5" IDE hard disk drive.


Convert two Compact Flash into a 2.5" IDE 44-pin Form Factor. Designated CF Slot for Master and Slave IDE

Standard 2.5" IDE storage device form factor (100.2mm x 69.9mm x 9.8mm)

LED indicators: Power On, Master and Slave Card Detect, and Disk Activity

Power supply via IDE interface (44-pin SFF IDE connector, +5V)

Supports PIO mode, DMA and Ultra-DMA mode with data transfer rate up to 150M Byte/sec depends on CF card speed)

Can be a primary bootable device containing the OS and applications depends on CF card specifications.

Does not support hot swap on CF interface.
