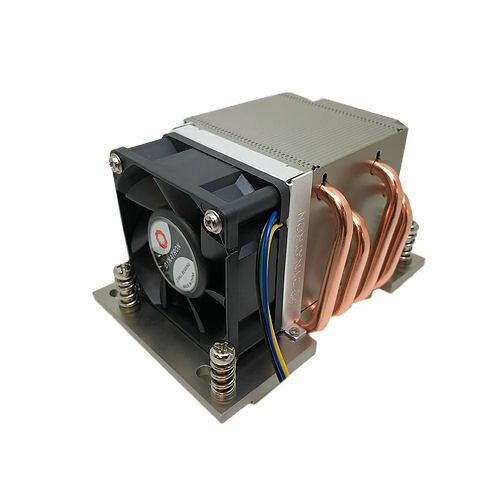

AMD EPYC Processor Socket SP3 Side-Blower 60x60x25mm PWM fan Cooler for 2U Server and Up.
CPU Support AMD
CPU Socket SP3
Solution 2U Server and Up
Dimensions 119.0 x 79.0 x 65.0 mm
Weight 450g
Material Aluminum Heatsink with Heatpipe Embedded
Fan Dimension 60 x 60 x 25 mm
Speed At Duty Cycle 20%: 1600 ± 200 RPMAt Duty Cycle 50%: 4000 ± 10% RPMAt Duty Cycle 100%: 8000 ± 10% RPM
Power At Duty Cycle 20%: 1.2 WAt Duty Cycle 50%: 2.28 WAt Duty Cycle 100%: 7.2 W
Bearing Ball Type, Double
Rated Voltage 12V
Air Flow At Duty Cycle 20%: 8.85 CFMAt Duty Cycle 50%: 21.88 CFMAt Duty Cycle 100%: 43.75 CFM
Noise Level At Duty Cycle 20%: 18 dBAAt Duty Cycle 50%: 37.9 dBAAt Duty Cycle 100%: 53 dBA
Air Pressure At Duty Cycle 20%: 0.76 mm-H2OAt Duty Cycle 50%: 4.76 mm-H2OAt Duty Cycle 100%: 19.04 mm-H2O
Lead Wire Pin Out Pin1- (-)Pin2- (+)Pin3- (Techometer/Signal output)Pin4- (PWM)
