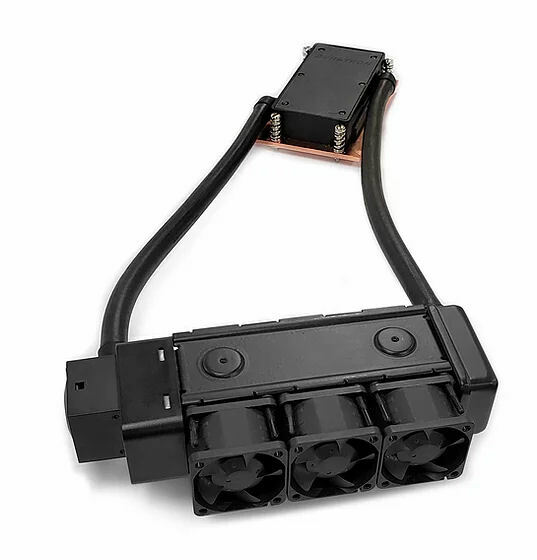

Recommend for AMD® Processor, Socket sTRX4/TR4/SP3, All-in-one Liquid Cooler for 1U Server,Three 4 cm cooling fans with 4-pin PWM Connector,Fully Support CPU Overclocking Powered Heat Dissipation.CPU Support
AMD®CPU Socket
Socket SP3/TR4/sTRX4Solution
1U ServerFan Dimension 40.0 x 40.0 x 28.0 mmSpeed
At Duty Cycle 0~20%: 2500±10% RPMAt Duty Cycle 50%: 6700±10% RPMAt Duty Cycle 100%: 12000±10% RPMBearing
2 Ball BearingRated Voltage
12VPower
At Duty Cycle 0~20%: 1.2 WAt Duty Cycle 50%: 3.0 WAt Duty Cycle 100%: 8.4 WAir Flow
At Duty Cycle 0~20%: 5.18 CFMAt Duty Cycle 50%: 13.87 CFMAt Duty Cycle 100%: 24.84 CFMNoise Level
At Duty Cycle 0~20%: 18.7 dBAAt Duty Cycle 50%: 40.2 dBAAt Duty Cycle 100%: 52.8 dBAAir Pressure
At Duty Cycle 0~ 20%: 1.39 mm-H2OAt Duty Cycle 50%: 9.98 mm-H2OAt Duty Cycle 100%: 32.01 mm-H2OLead Wire Pin Out
Pin1- (-)Pin2- (+)
Pin3- (Tachometer output)
Pin4- (PWM Control)
Water Pump
Stand-alone Water Pump in flow rate 1.7 Liter Per Minute
