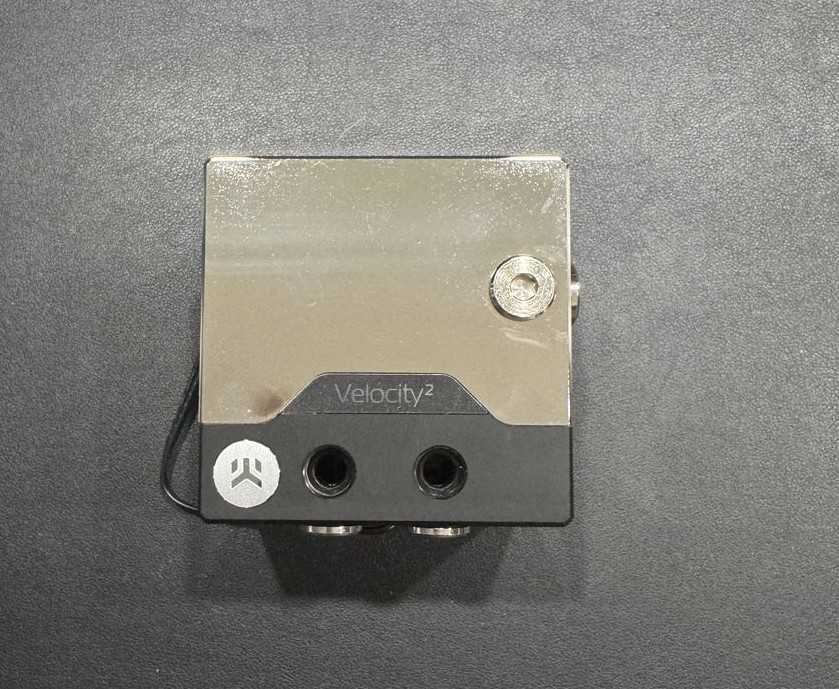

EK-Quantum Velocity2 DDC 4.2 PWM D-RGB LGA1700 1851 Nickel Plexi CPU Block Pump Combo

Condition: Open box.

A four-in-one unit: CPU water block, genuine DDC 4.2 PWM pump, integrated reservoir and pump heatsink in a single assembly. EK markets it specifically for SFF and ITX builds where a separate pump and reservoir will not fit. Nickel-plated cold plate with an acrylic (Plexi) reservoir window and D-RGB lighting.

This SKU is discontinued by EK and no longer available new from most retailers.

Technical and Material Specifications:

• Socket: Intel LGA1700 (12th, 13th and 14th Gen Core) and LGA1851 (Core Ultra 200S) - same mounting pattern
• Materials: nickel-plated copper cold plate, nickel-plated brass top, acrylic reservoir section
• Dimensions: approx. 94.5 x 60.7 x 94.5 mm (EK's own manual states 94.5 x 94.5 x 70.6 mm for the same unit; sources disagree on axis labelling, so treat as approximate)
• Reservoir volume: 64 ml
• Ports: 6x G1/4", including 2 dedicated fill ports
• D-RGB: 3-pin 5 V digital header, 14 addressable LEDs, approx. 50 cm cable
• Mounting: EK-ExactMount system, LGA1700 / LGA1851
• Pump motor (per EK's standalone DDC 4.2 PWM motor listing, not a combo-specific datasheet): 12 V DC, approx. 18 W, max flow approx. 1000 l/h, max head approx. 5.2 m, SATA power plus 4-pin PWM
