ESP32-P4-WIFI6-POE-ETH High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE), With integrated PoE Module For PoE Power supply ESP32-P4-WIFI6-POE-ETH
High-performance Development Board Based On ESP32-P4 And ESP32-C6
Rich Human-machine Interfaces
Development Board Introduction

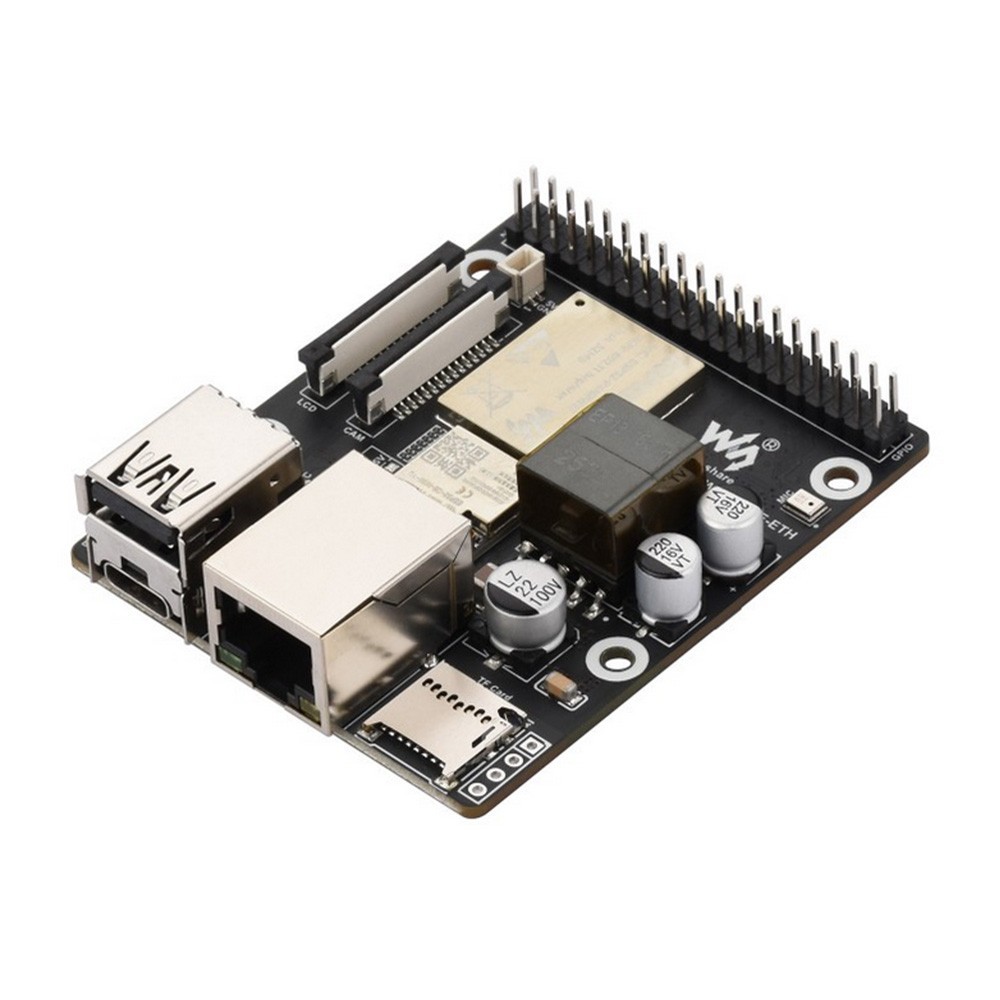

The ESP32-P4-WIFI6-POE-ETH is a multimedia development board based on ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE) wireless connectivity. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with PoE functionality.
The ESP32-P4 adopts a 360MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-WIFI6-POE-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.
Key features include:
- High-performance MCU with RISC-V 32-bit dual-core and single-core processors
- 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
- 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash
- Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header and RTC Batt. header, etc.
- Adapting 2*20 GPIO headers with 28 x remaining programmable GPIOs
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
Kit Selection Kit Connection Examples DSI Capacitive Touch Display
Optional For DSI Capacitive Touch Display, IPS Screen, Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience
Model 10.1-DSI-TOUCH-A Resolution 800 × 1280 (H × V) Communication Interface MIPI-DSI (2-lane) Brightness 400cd/m² (supports customization for 1000cd/m² high brightness version) Touch Chip GT9271 Outline Dimension 147.0 × 239.0 (mm) Display area 135.36 × 216.58 (mm) Pixel pitch 0.1692 (H) × 0.1692 (V) (mm) Contrast ratio 800:1 Operation temperature 0℃~60℃
* the DSI LCD is only included in the ESP32-P4-WIFI6-POE-ETH-D kit.
Raspberry Pi Camera (B)
5MP | Manual Focus
Compatible with Raspberry Pi series boards
Sensor OV5647 CMOS size 1/4inch PIXELS 5MP Aperture F2.0 Focal length 6mm Field of view 60.6° Night Vision function Not support FOCUSING Manual Focus
for reference only, please refer to the package content for detailed part list.
Highly Integrated And Powerful Performance
Adopts ESP32-P4-Core Module, Featuring 32MB PSRAM And Onboard 32MB Nor Flash
Wi-Fi 6 And Bluetooth Module
Onboard ESP32-C6-MINI Module To Extend 2.4GHz Wi-Fi 6 And Bluetooth 5 (LE) For ESP32-P4-WIFI6-POE-ETH, Using SDIO Interface Protocol For Communication, Stable Connection and Efficient Transmission
Integrated PoE Module
More Flexible for Power Supply
Supports PoE Power Supply
Provides Both Network Connection And Power Supply for ESP32-P4-WIFI6-POE-ETH board with Only One Ethernet Cable
for reference only, please refer to the package content for detailed part list.
Supports AI Speech Interaction
Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc.
*The DSI LCD is only included in the ESP32-P4-WIFI6-POE-ETH-D kit.
Pin Definition
outline dimensions
