Description
ESP32-P4-WIFI6-POE-ETH High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE), With integrated PoE Module For PoE Power supply ESP32-P4-WIFI6-POE-ETH

TheESP32-P4-WIFI6-POE-ETHis a multimedia development board based on ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and Bluetooth 5 (LE) wireless connectivity. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, onboard RJ45 Ethernet port with PoE functionality.

The ESP32-P4 adopts a 360MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-WIFI6-POE-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

Optional For DSI Capacitive Touch Display, IPS Screen, Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle. Supports 10-Point Touch, provides clear image and excellent visual experience
Model 10.1-DSI-TOUCH-A Resolution 800 × 1280 (H × V) Communication Interface MIPI-DSI (2-lane) Brightness 400cd/m² (supports customization for 1000cd/m² high brightness version) Touch Chip GT9271 Outline Dimension 147.0 × 239.0 (mm) Display area 135.36 × 216.58 (mm) Pixel pitch 0.1692 (H) × 0.1692 (V) (mm) Contrast ratio 800:1 Operation temperature 0℃~60℃

* the DSI LCD is only included in the ESP32-P4-WIFI6-POE-ETH-D kit.

Raspberry Pi Camera (B)

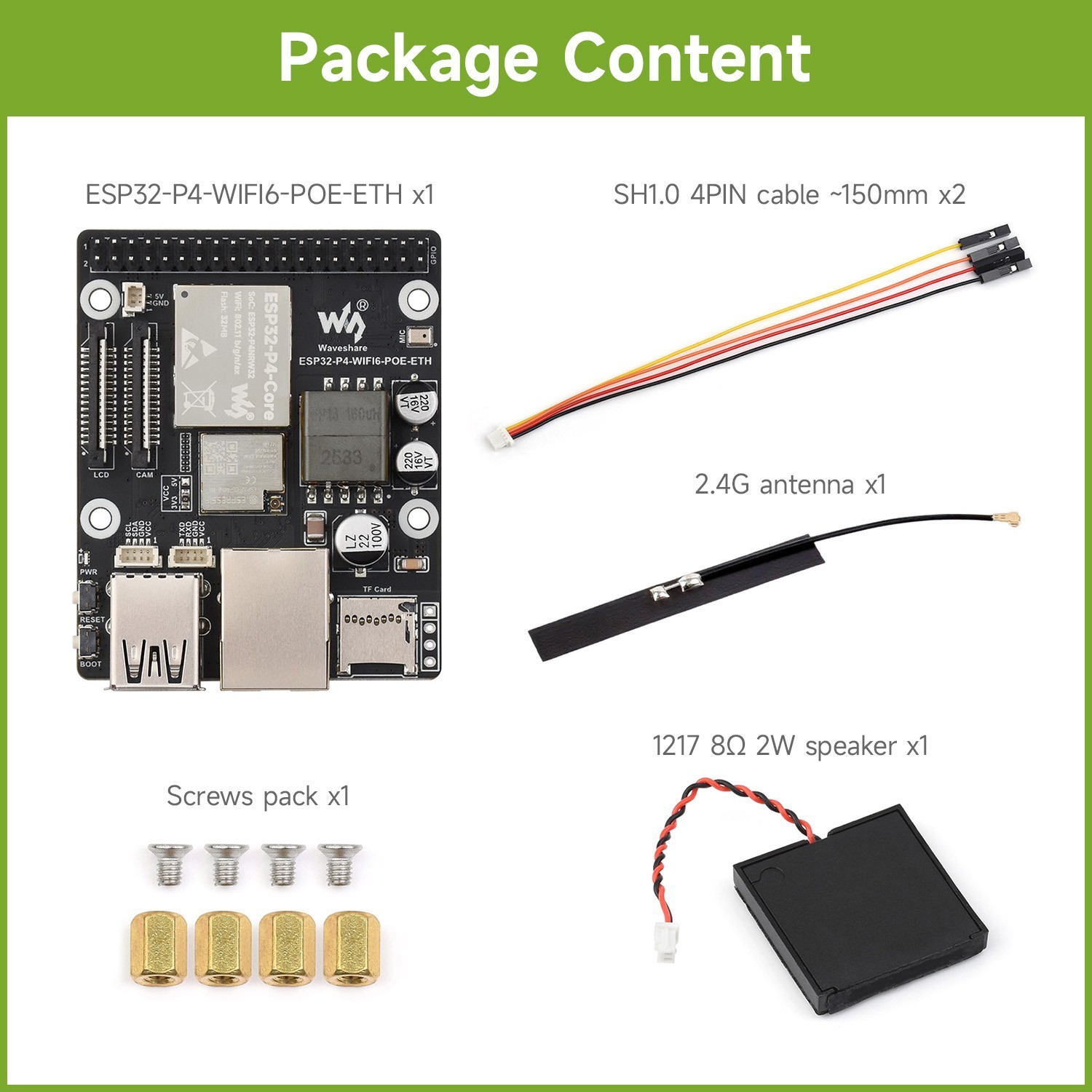

for reference only, please refer to the package content for detailed part list.

Highly integrated and powerful performance

Adopts ESP32-P4-Core Module, featuring 32MB PSRAM and onboard 32MB Nor Flash


Onboard ESP32-C6-MINI module to extend 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4-WIFI6-POE-ETH, using SDIO interface protocol for communication, stable connection and efficient transmission
Integrated PoE Module

Provides Both Network Connection And Power Supply for ESP32-P4-WIFI6-POE-ETH board with Only One Ethernet Cable

for reference only, please refer to the package content for detailed part list.


*The DSI LCD is only included in the ESP32-P4-WIFI6-POE-ETH-D kit.

ESP32-P4-WIFI6-POE-ETH
1 2 3 4 5 6 7 ESP32-P4-WIFI6-POE-ETH-D
