Purchase Options:
This kit has purchasing options.
option has a touch screen, and the other has a non-touch screen.
Overview:
This is a screen with onboard dual-core 32-bit 240 MHz ESP32-S3 microcontroller.
This kit helps you learn ESP32-S3, LVGL GUI library and connection with AI (LLM).
We provide free technical support to help you with any questions and problems.
Tutorial and Code:
Comes with detailed tutorial and code. (Download or view online, no paper tutorial.)
Including several typical projects with code and explanations.
The tutorial link can be found on the product box.
Contents of Main Tutorial:
(Note: The LVGL chapters are mainly for touch screen.)
Preface
Chapter 1 Serial
Chapter 2 RGB
Chapter 3 Button
Chapter 4 Button Interrupt
Chapter 5 Voltage
Chapter 6 Memory Card
Chapter 7 Play Music
Chapter 8 BLE
Chapter 9 WIFI Web Server
Chapter 10 TFT Screen
(The following chapters are mainly for touch screen.)
Chapter 11 TFT Touch
Chapter 12 TFT Touch Draw
Chapter 13 LVGL Text
Chapter 14 LVGL Picture
Chapter 15 LVGL Timer
Chapter 16 LVGL RGB
Chapter 17 LVGL Music
Chapter 18 LVGL Multifunctionality
Chapter 19 LVGL Demo
What's Next?
Contents of XiaoZhiAI Tutorial:
Please refer to tutorial for details.

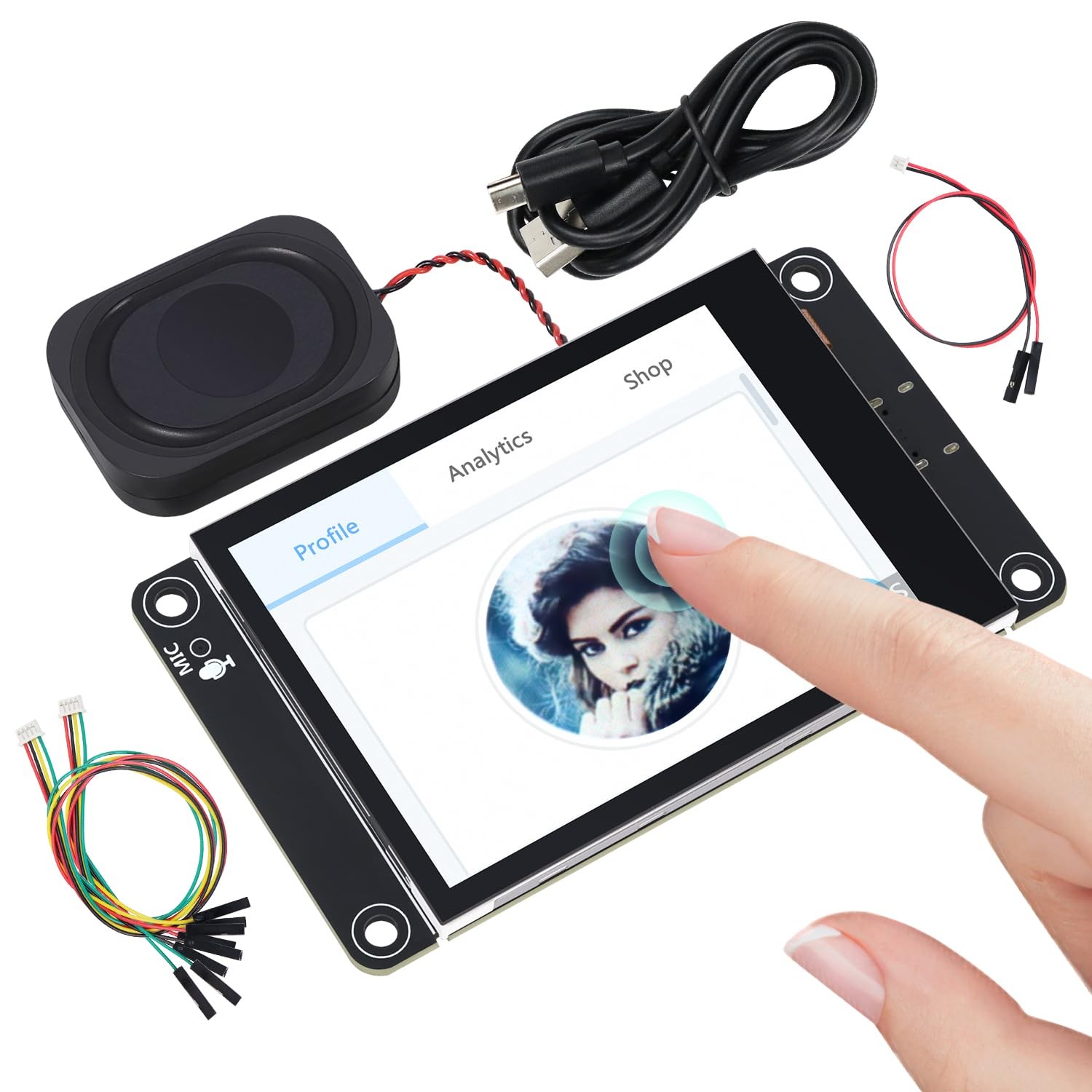

Package Includes:
1 x Screen monitor
1 x Speaker
1 x USB A to C cable
2 x Connecting cable (4P)
1 x Connecting cable (2P)Talk to AI (LLM): Continuous and natural communication, just like talking to a human, without needing to press a button or say a wake-up word (Notes: Service provided by XiaoZhiAI, registration and login required. Free service, may be unavailable in some regions. Please refer to tutorial for details)
Onboard ESP32-S3 Chipset: Dual-core 32-bit microprocessor up to 240 MHz, 16 MB flash, 8 MB PSRAM, 512 KB SRAM, 384 KB ROM, 2.4 GHz Wi-Fi and Bluetooth 5 (LE), with USB-C code uploader
Onboard Screen: 2.8 inch, 240x320 pixel, IPS type wide viewing angle, ILI9341 driver IC, 4-wire SPI communication, single-point capacitive touch screen
Ports and Devices: Memory card slot, USB-C port, serial port, I2C port, I/O pin port, battery port, RGB LED, BOOT key, RESET key, microphone, speaker port (Comes with a speaker)
Tutorial and Code: Example projects for ESP32-S3 and LVGL GUI library, and connection with AI (The tutorial link can be found on the product box, no paper tutorial)
