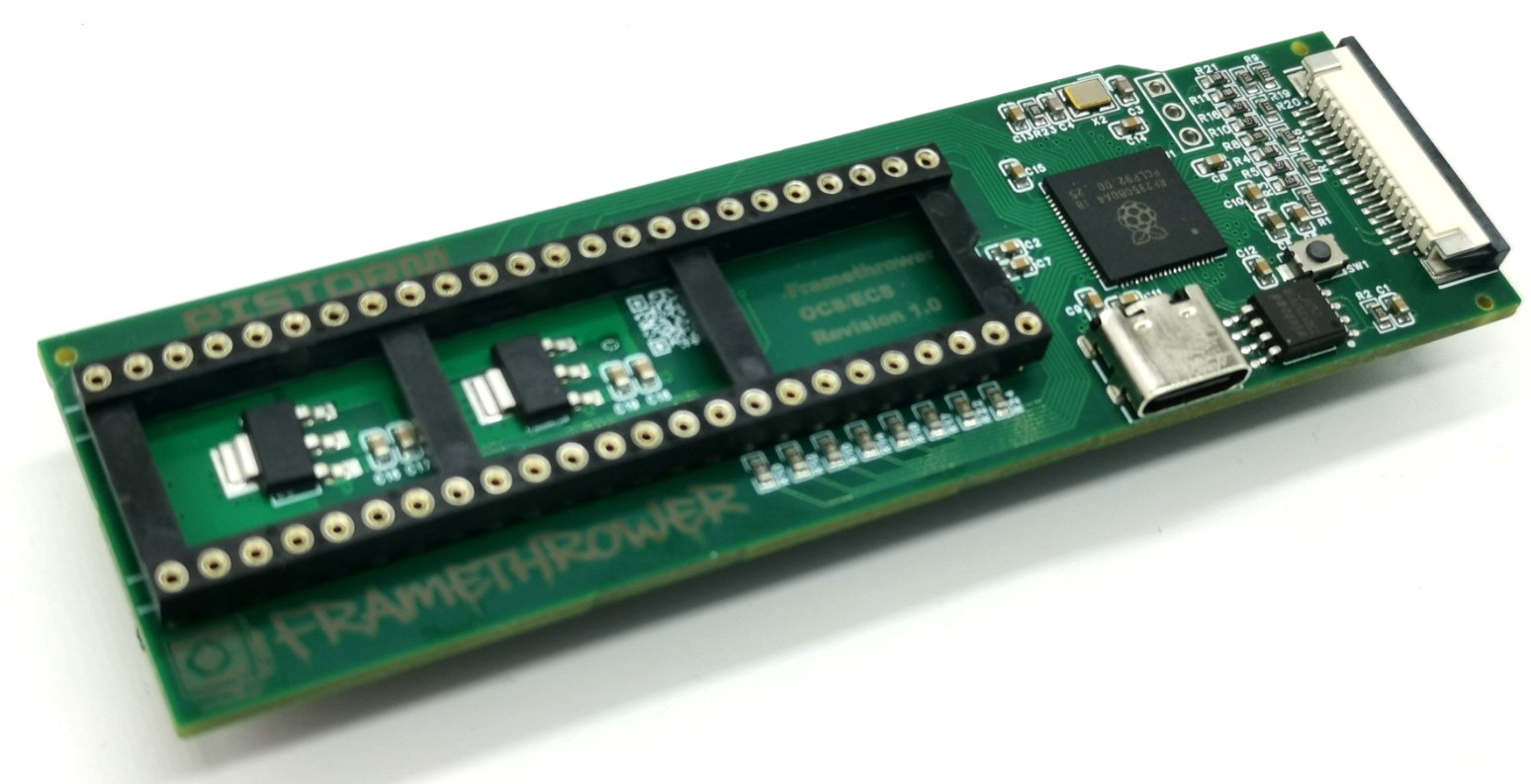

FRAMETHROWER 500 FOR AMIGA 500/500PLUS AND AMIGA 2000
FrameThrower 500 is designed to work with PiStorm 500 (NOT INCLUDED) the Amiga 500/500Plus and/or Amiga 2000 (A2000), acting as a scandoubler/flicker fixer that allows native Amiga video modes and Retargetable Graphics (RTG) to output through a single HDMI port, integrated with the PiStorm accelerator board. It installs by plugging into the A500/A2000's Denise socket, allowing direct access to the video chip for pure output, and connects to the Raspberry Pi3.
HOW TO INSTALL FT500:
Remove Denise from the SocketPlace Framethrower into the Denise SocketPlace Denise into the Framethrower Denise SocketConnect the FPC Cable to Framethrower (metallic FPC contacts facing down)Connect the FPC Cable to the Raspberry Pi/PiStorm "Camera" connector
A line needs to be added in your CMDLINE.TXT file:unicam.boot unicam.smooth unicam.b=0 unicam.c=0 unicam.phase=90 unicam.mode=720,576,34,16Please note, we do no take any responsibility for your mistakes during installation.If you have any doubts, feel free to ask.
WHAT YOU WILL GET:1x Framethrower 5001x Connection Tape for RPi3A+ or RPi3B
PLEASE NOTE:Claude Schwarz is the developer of PiStorm 500 and FT500. Please, support him by donating on his website.
