Description:
Fiberdyne Labs

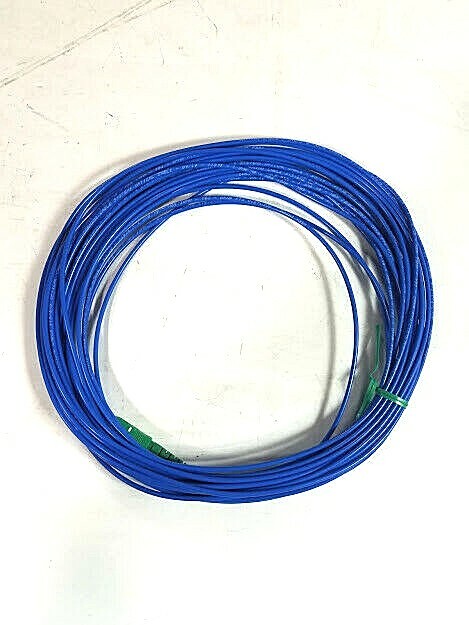

Sm Simplex B/I 3.0mm SC/APC-SC/APC, 14meters; OFNR
Sm Simplex-Singlemodeis typicallyused inlong-haul network connections spread out over extended areas--longer than a few miles. For example, telcosuseit for connections between switching offices.Singlemodecable features a 9-micron glass core.Asimplex fibercable consists of a single strand of glass of plasticfiber.Simplex fiberis most often used where only a single transmit and/or receive line is required between devices or when a multiplex data signal is used (bi-directional communication over a singlefiber).
B/I- Bi-Directional-Opticalfiberis sensitive to stress, particularlybending. ... An optical "trench" - the term used for a ring of lower index of refraction material - was built into thefiberto basically reflect the lost light back into the core of thefiber. This particular fiber holds up better under stress. As a result, it holds up much better under stress and is able to be bent or stapled inplace. This makes it very good at applications as part of the fiber framework in buildings, etc...
OFNR- Optical Fiber Nonconductive Riser-OFNRrefers to thefiberrating of thecablejacketing.OFNRis the designation given by the National Fire Protection Association (NFPA) to interiorfiber-optic cableswhich contain no electrically conductive component, and which are certified for use in Riser applications.
SC/APC-SC/APC-SCis a type offiber optic connectorwith snap (push-pull coupling) coupling type and a 2.5 mm diameter ferrule, which is popularly used in single mode duplex system for its high performance and accurate alignment. APC stands for Angled Polished Connector.This angle prevents back-reflections which will seriously degrade the performance of any analog fiber optic system, such as CATV and Satellite. Sc/apc connectors are green incolor with white jacketed boots.
*Note- This is a newly posted item. Please take a look at the pictures of the item to make sure it is the product you want to purchase. If you have any questions, feel free to contact us for more information. Thank you for your business!
Part and Used Items: -All Items listed as new and used are eligible for returns within 30 days -Items must be unused(upon receiving item) and in the same condition it was received -All returns must be in original packaging -Customer is responsible for cost of shipping *Items Listed As "For Parts/Not Working" Are Untested And May Work* *Any Items Sold "For Parts/Not Working" or "AS IS" Not Eligible For Returns*
