Fully Compatibility 10GBase-T Module SFP-10G-T SFP+ to RJ45 Copper 30M For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

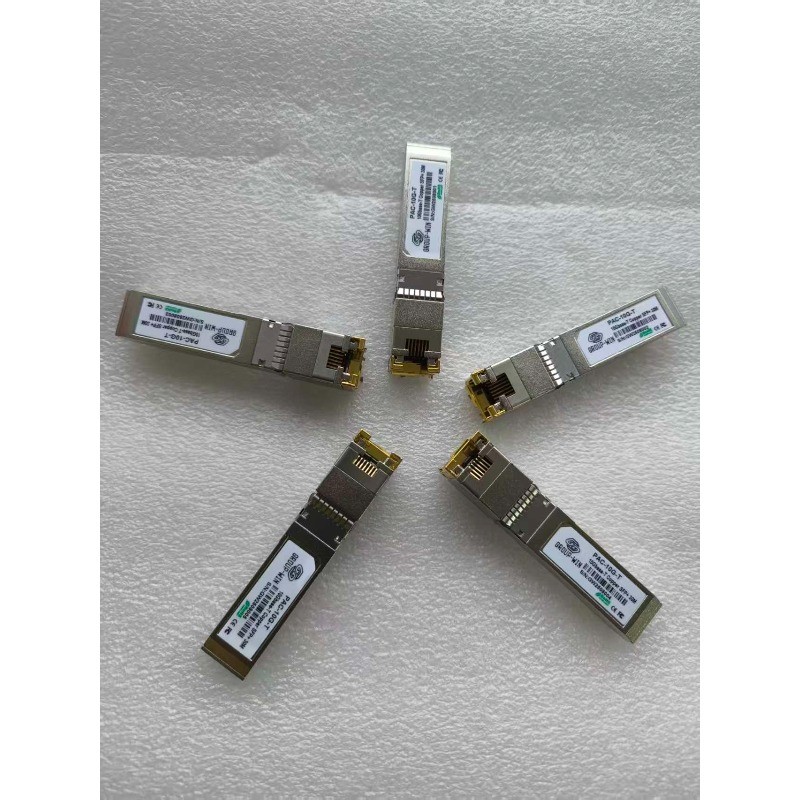

Fully Compatibility 10GBase-T Module SFP-10G-T SFP+ to RJ45 Copper 30M
Price: CN $25.96
PAC-10G-T : 10G Copper SFP 30M
If your equipment brand is not in the list ,Please leave us a message about which brand is your equipment. We Will send compatible SFP modules as your request. Thanks you very much!If you leave message
Features: Supports Links up to 30m using Cat 6a/7 Cable SFF-8431 and SFF-8432 MSA Compliant IEEE 802.3az Compliant Low Power Consumption (2.5W MAX @ 30m) Fast Retrain EMI Cancellation Algorithm Low EMI Emissions I2C 2-Wire Interface for Serial ID and PHY Register Access Auto-negotiates with other 10GBase-T PHYs Supports 100/1000Base-T using Cat 5e cable or better MDI/MDIX Crossover Multiple Loopback Modes for Testing and Troubleshooting Built-in Cable Monitoring and Link Cable Length Measurements Opens/Shorts Robust Die Cast Housing Bail Latch Style ejector mechanism
Unshielded and Shielded cable support1.PRODUCT FEATURES Support 10Gbase-T / 1000base-T Hot-pluggable SFP footprint Compact RJ-45 connector assembly RoHS compliant and lead-free Single +3.3V power supply 10 Gigabit Ethernet over Cat 6a cable AmbientOperatingtemperature: 0°C to+65°CPRODUCT DESCRIPTION SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible withthe10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-Tstandards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS(must bepulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.
Features:
10GBase-T
Data Rate: 10G
Interface: RJ-45
80 meters transmission over CAT.6a/CAT.7
Low Power Consumption (1.6W 110Gbps 30m，2.0W 110Gbps 80m)
