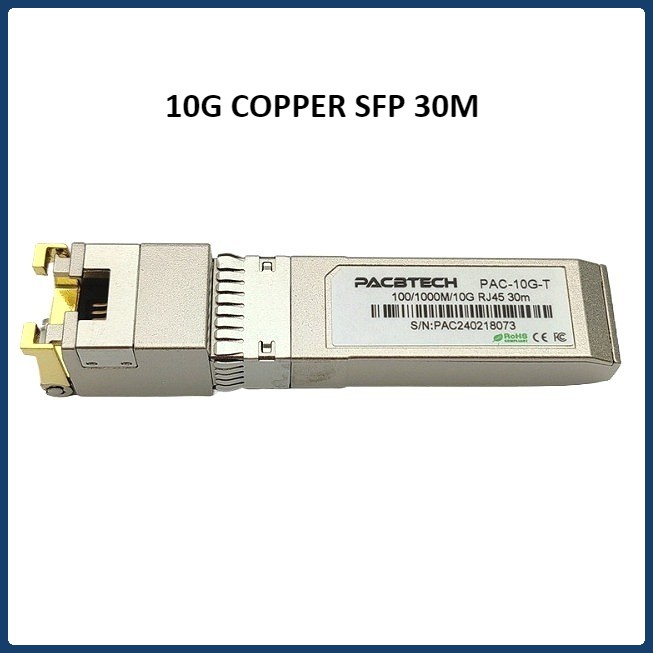

PAC-10G-T : 10G Copper SFP 30M

Features:
Supports Links up to 30m using Cat 6a/7 Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3az Compliant
Low Power Consumption (2.5W MAX @ 30m)
Fast Retrain EMI Cancellation Algorithm
Low EMI Emissions
I2C 2-Wire Interface for Serial ID and PHY Register Access
Auto-negotiates with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Cable Length Measurements Opens/Shorts
Robust Die Cast Housing
Bail Latch Style ejector mechanism

Unshielded and Shielded cable support1.PRODUCT FEATURES
Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable
AmbientOperatingtemperature: 0°C to+65°CPRODUCT DESCRIPTION
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible withthe10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-Tstandards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS(must bepulled up on host) pin for link indication. If pull up or open SFP's TX_DISABLE pin, PHY IC be reset.

PAC-10G-T80 : 10G Copper SFP 80M

Features:

10GBase-T

• Data Rate: 10G

• Interface: RJ-45

• 80 meters transmission over CAT.6a/CAT.7

• Low Power Consumption (1.6W 110Gbps 30m，2.0W 110Gbps 80m)

• Compliant with 10G Base-T IEEE 802.3an/az

• Compliant with 1000Base-T IEEE 802.3ab

• Compliant with 100Base-TX IEEE 802.3u

• Temp. Range(℃): 0~60

• RoHS

10GBase-T

If your equipment brand is not in the list ,Please leave us a message about which brand is your equipment.
We Will send compatible SFP modules as your request.
Thanks you very much!If you leave message ,
All following brand can be compatible .
