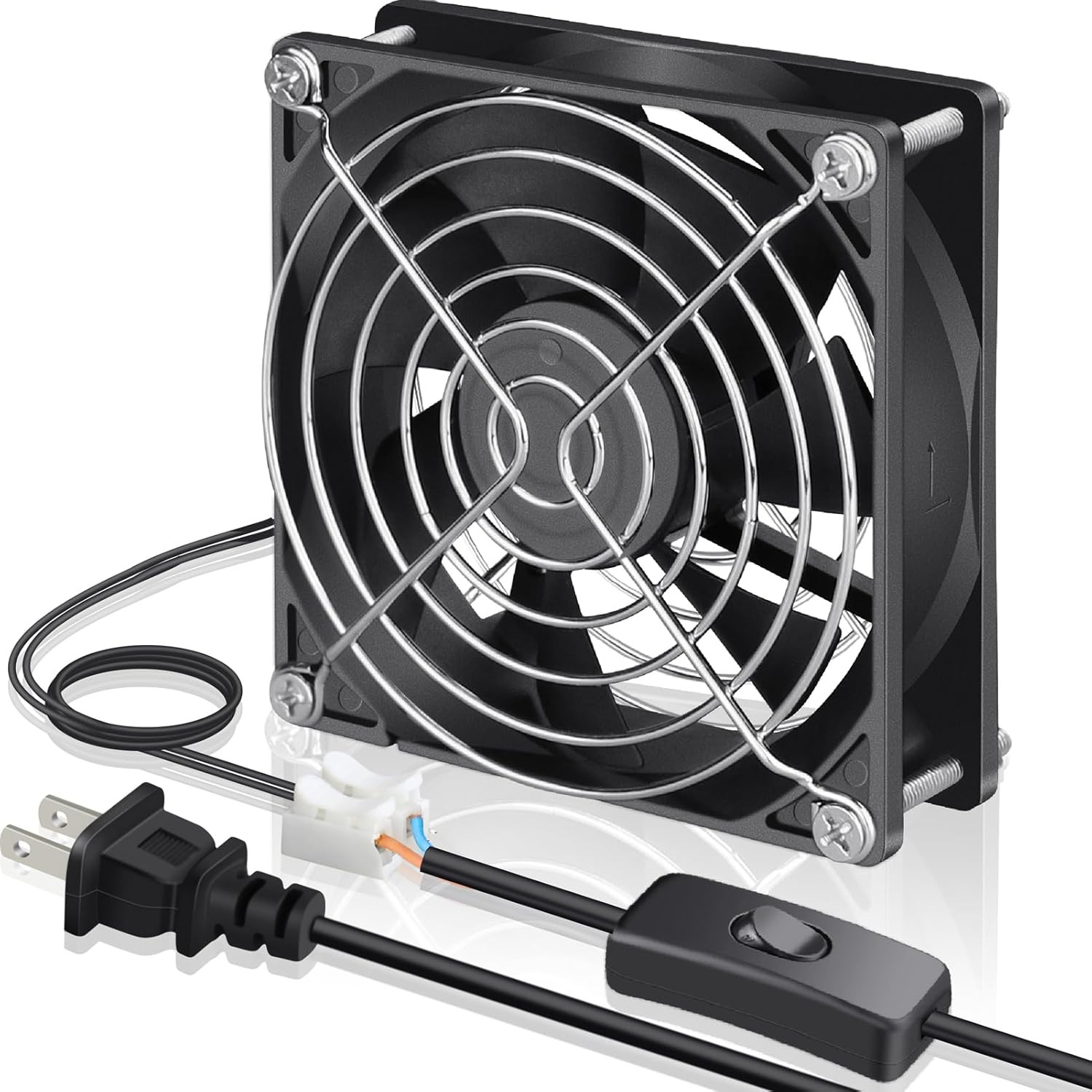

GDSTIME 90Mm EC Axial Cooling Fan 92Mm X 25Mm AC 110V 115V 120V 220V 240V Dual Ball Bearing Small Brushless Exhaust Fan AC Powered Cord with On/Off SwitchDescription Warranty Description One-year Warranty (Free Replacement) Number of Items 1 Noise Level 31 Decibels Material Type Plastic Unit Count 1.0 Count Power Connector Type 2-Pin Brand Name GDSTIME Brand GDSTIME Material Plastic Cooling Method Air Manufacturer GDSTIME Item Weight 3.1 Ounces Maximum Rotational Speed 2400 RPM Air Flow Capacity 54.8 Cubic Feet Per Minute Model EC9225B Part Number EC9225B Item Dimensions L x W x H 3.62"L x 3.62"W x 0.98"H Wattage 2 watts Compatible Devices Server Voltage 120 Product Dimensions 3.62"L x 3.62"W x 0.98"H Size 92x25mm
- Package include: 1 Piece fan include fan grill and mounting screws & nuts; 1x US Plug Power Cord; 1x Wire Clip
- This fan can easily run from 90 to 270VAC current without any trouble.
- 92x92x25mm AC 110V 115V 120V 220V 240V; Speed:2400rpm; 2.0W
- The motor runs on a DC voltage, but with a normal AC supply. DC motors already have low power consumption but if used in an AC application
- Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright.
Product description EC Axial Fans
EC fans/motors is highly regarded as the preferred choice for energy efficient motor and fan solutions.Available in 60mm,80mm,90mm,120mm size Run at 110V,115V,120V,220V,240V AC
90mm 110V 120V Fan
Why Choose an EC Fan?
GDSTIME’s EC fans are highly efficient, provide a more compact design, lower energy consumption and longer component life to reduce the costs of operation and maintenance.
What is EC Axial Fan? Do you know?
- EC stands for Electronically Commutated, and it combines AC and DC voltages bringing the best of both worlds.
- The motor runs on a DC voltage, but with a normal AC supply. The motor incorporates voltage transformation within the motor.
- The non-rotating part of the motor (stator) is extended to make room for an electronic PCB board which includes power transformation AC to DC, as well as the controls.
- Brushless DC motor / fan driven by AC source input.
- Energy efficient
- Simple connection
- Less power consumption
- Smaller-sized motor for the same level of performance
Key Features High Air Volume
Outstanding airflow performance with low static pressure. The air volume is 1.5-3 times higher than the same AC hood-level fan.
Low Energy Consumption
Efficiency EC motor, allowing EC fans to consume up to 80% less energy. Moved more air at less power consumption.
Dual Ball Bearings
Lightweight motor rotor design and low operating temperature rise, Dual-ball bearings works up to 50,000 hrs.
Global Universal Voltage
All EC axial fans run at 110V, 115V, 120V, 220V, 240V AC (Range from 90 to 270 VAC), include a power cord,wire connector,fan grill and screw set.
Product Description
Lightweight Compact Construction
This EC axial fan's operating temperature rise is very low, so the EC fan's housing can be constructed of PBT Material, its impeller and blades are one-time injecting molded with thermoplastic. It has 300 millimeter AWM 1007 24 AWG 80℃ 300V VW-1 wireleads. High precisious long life dual ball bearings and ec fan motor,the fans lifespan up to for 50,000 hours at 77℉. (The Operating Temperature is 14℉ to 167℉)
Applications
The EC axial fan widely used for ventilation of residential, office and industrial buildings or as a replacements fans. It can be mounted flat or upright.
Popular used in Air Handlers, Cabinet Cooling, Commercial Refrigeration, HVAC, Copiers & Projectors, Air Cleaners & Heaters, Server/Storage Devices, Vending Machines, Mobile Devices, Purifiers, and other electronics and components.
Package Contain:
1x EC axial fan
1x Metal fan grill
1x Spring wire connector
1x 4.9ft US 110V 120V AC power cord
4x Screws and nuts for quick mounting
