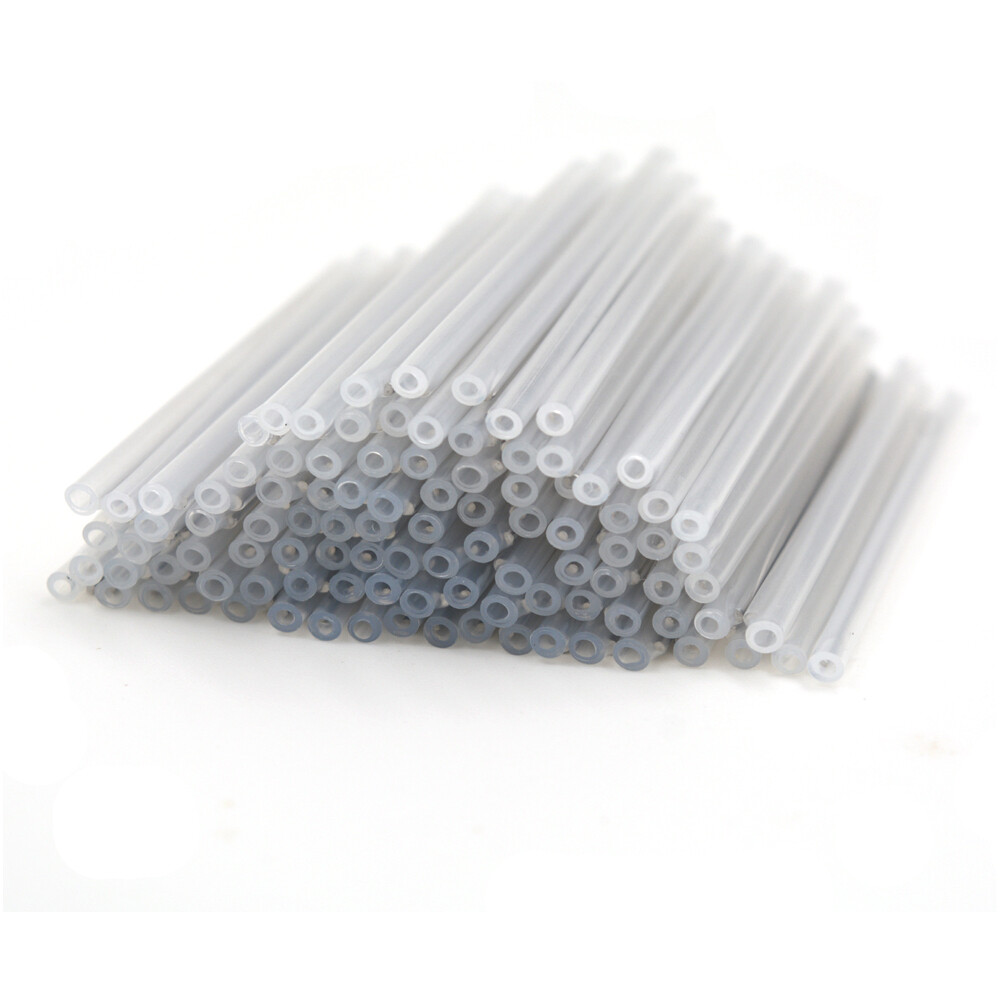

TOP Quality, PreshrinkFiber Fusion splice protection sleeve

Fast Delivery, 5 Years Warranty.

Don't Settel forLow Cost, Poor Quality sleeve, Choose Optimal, Choose us.

Features

1.Preshrunk type (Full shrinkable), Highest quality,Single holed ends eliminates improper fiber threading.

2. Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing.
3. Clear sleeve make it easy to detect splice before shrinkage.
4. Airproof structure keeping the splice point's good resistance of humidity and temperature.
5. Easily use and avoid any damages to the optical fiber during installation.
6. Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation.
7. Extended liner length prevents contact between the fiber and ther backbone.

Specifications

1. Whole length: 45mm+/- 1mm

2. Outer diameter after recovery: OD2.5 mm +/- 0.1mm

3. Hole diameter before recovery: OD1.4 mm

4. Stainless steel needles diameter: OD 1.2 mm

5. Minimum installation(shrinking) temperature: 110°C

6. Max installation time: 60 seconds

7. Standard color: Clear

8. Low Temperature property: No crackle at -55°C lasting 4 hours

9. RoHS compliant

10. Packing: 100 pcs per bag (Others for special order)

Packing Contents

• 2,500pcs x Preshrink Fiber fusion protection sleeve
