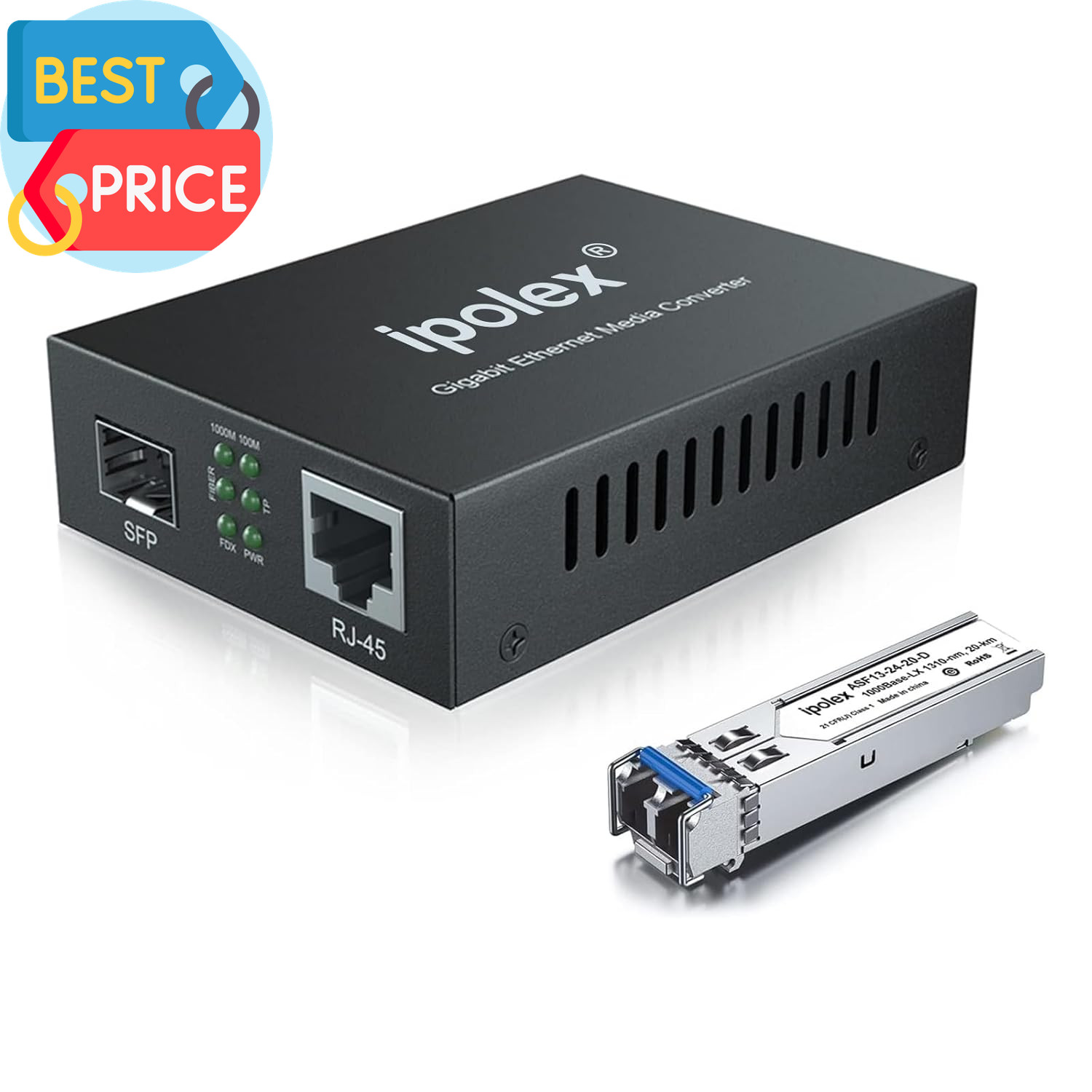

Gigabit Single-Mode LC Fiber to Ethernet Media Converter with a SFP LX Module, 1.25G SFP Fiber to Copper RJ45 Media Converter, 1000Base-Lx to 10/100/1000Base-Tx, 1310Nm, SMF, Transmission up to 20-KMDescription - Seamless Conversion of LC Fiber to Copper – This fiber optic to ethernet media converter kit includes a single mode 1000BASE-LX SFP module(1310nm), which enables you to convert 1000BASE-LX Duplex LC fiber to 10/100/1000 Base-T RJ-45 copper media or vice versa.
- Extend Your Transmission Distance – By using this ethernet fiber media converter, you can easily extend link distance up to 20 kilometers via OS1/OS2 single mode fiber (SMF, LC, Duplex).
- Plug and Play – No software installation or configuration is required. The hot-swappable design makes this ethernet fiber converter easy to install and troubleshoot.
- Reliable Auto-Negotiation Gigabit Connection – 10/100/1000Mbps Auto-Negotiation RJ45 Port supports Auto-MDI/MDIX Crossover and Half-Duplex / Full-Duplex Transfer Mode, bridging different network speeds and devices to a Gigabit fiber network.
- What You Get – 1* Gigabit Ethernet SFP to RJ45 media converter; 1* 1000Base-LX SFP Module; 1* Power Supply; 3-year Warranty, Technical Support.
Product Description UL Certified Power Supply - Input Voltage: AC100V~240V or DC36~72V, 50/60Hz
- Output Voltage: 5V1A
- Connector : DC Socket
LED Indicators - FX/TX: Light on when speed is 1000Mbps, else light off
- Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
- FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
- PWR: Light on when DC power on, else light off
Product Size - Compact size provide more flexible installation options.
- Dimensions: 93 x 71 x 27mm(D x W x H)
- Weight: 0.5kg
Item model number Kit#2,SFP Converter&20KM Transceiver Number of Items 1 Color SMF, 20KM Is Discontinued By Manufacturer No Package Dimensions 6.34 x 4.61 x 1.81 inches; 12.64 ounces Size 1.25G LC  |
|
