Item description

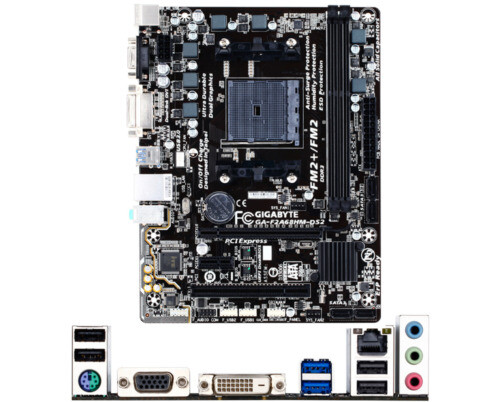

Gigabyte F2A68HM-DS2 GA-F2A68HM-DS2 AMD A68H FM2+ DDR3 Motherboard USB 3.0 M-ATX
APU
FM2+ slot:
Supports AMD A-series processors
Supports AMD Athlon™ series A68H
RAM
2 DDR3 DIMM slots, support up to 64 GB
* Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, the actual displayed memory capacity will be less than the actual installed memory capacity.
* To support the maximum system memory capacity*64 GB, a 16 GB (or above) memory module is required.
Supports dual-channel memory technology
Support DDR3 2400(OC)/2133/1866/1600/1333 MHz
Supports AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory
Display function
It needs to be used with APU with integrated graphics:
1 VGA interface, can support up to 1920x1200 resolution
1 DVI-D interface, can support up to 2560x1600 resolution
* To support 2560x1600 resolution, a monitor and monitor cable that supports DVI-D is required.
* This DVI-D interface does not support the function of converting to VGA.
Supports *Maximum Shared Display Memory*2 GB
Sound effect
Built-in Realtek® ALC887 chip
Support High Definition Audio
Support 2/4/5.1/7.1 channel
* To enable 7.1-channel audio output, you must use the audio output jack on the front panel of the HD (High Definition) audio module, and select the multi-channel audio function through the audio software.
Support digital audio output
The internet
Built-in Realtek® GbE network chip (10/100/1000 Mbit)
Expansion slot
1 PCI-E x16 slot, supporting x16 operation specification (PCI-E x16)
(PCI-E x16 slot supports PCI-E 3.0)
* FM2+ APU is required to support PCI-E 3.0.
1 PCI-E x1 slot
(PCI-E x1 slot supports PCI-E 2.0)
1 PCI slot
Multiple Display Technology
Supports AMD Hybrid Crossfire Technology
* AMD Hybrid Crossfire technology is only supported on A-series APUs.
Supports AMD Eyefinity Technology
Storage device interface
Built in Chipset:
4 SATA 3.0 ports
Supports RAID 0, RAID 1, RAID 10 and JBOD in Chipset:
2 USB 3.0 ports on the rear window of the motherboard
8 USB 2.0 ports (4 on the rear window of the motherboard, 4 need to be connected from the onboard USB socket of the motherboard via a flat cable)
Internal socket
1 24PIN motherboard power socket
1 8PIN CPU power socket
4 SATA 3.0 ports
1 CPU fan header
2 system fan sockets
1 chassis control jumper socket
1 front audio jack
1 onboard digital audio output socket
2 USB 2.0 sockets (each socket can be connected to up to two front ports)
1 onboard COM socket
1 clear CMOS data pin
1 chassis open detection socket
Rear panel unit connection socket
1 PS/2 keyboard/mouse interface
1 VGA interface
1 DVI-D interface
2 USB 3.0 ports
4 USB 2.0 ports
1 RJ-45 network cable interface
3 audio interfaces (audio in, audio out, microphone)
I/O Controller
Built-in iTE® I/O controller chip
BIOS
2 x 64 Mbit flash
Use an authorized AMI UEFI BIOS
GIGABYTE Graphical Dual BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
OS
Support Windows 8.1/7 32-bit/64-bit
Support Windows XP 32-bit
* To install Windows XP 32-bit, AMD FM2+ Kaveri series APU is required.
* You need Windows XP Service Pack 3 to support Windows XP driver installation.
Form factor
Micro ATX; 22.6 cm x 17.4 cm
Included
1 x motherboard.
2 x SATA II cables.
1 x I/O shield.
