Instructions

1. Please DO NOT use fake memory, because the motherboard maybe can't support.
2. Please DO NOT use single-side memory, because some motherboards can't support.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some Can't boot problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package included:
Please note only the following accessories come with the mobo:
1 x motherboard
2 x SATA cables
1 x I/O back panel

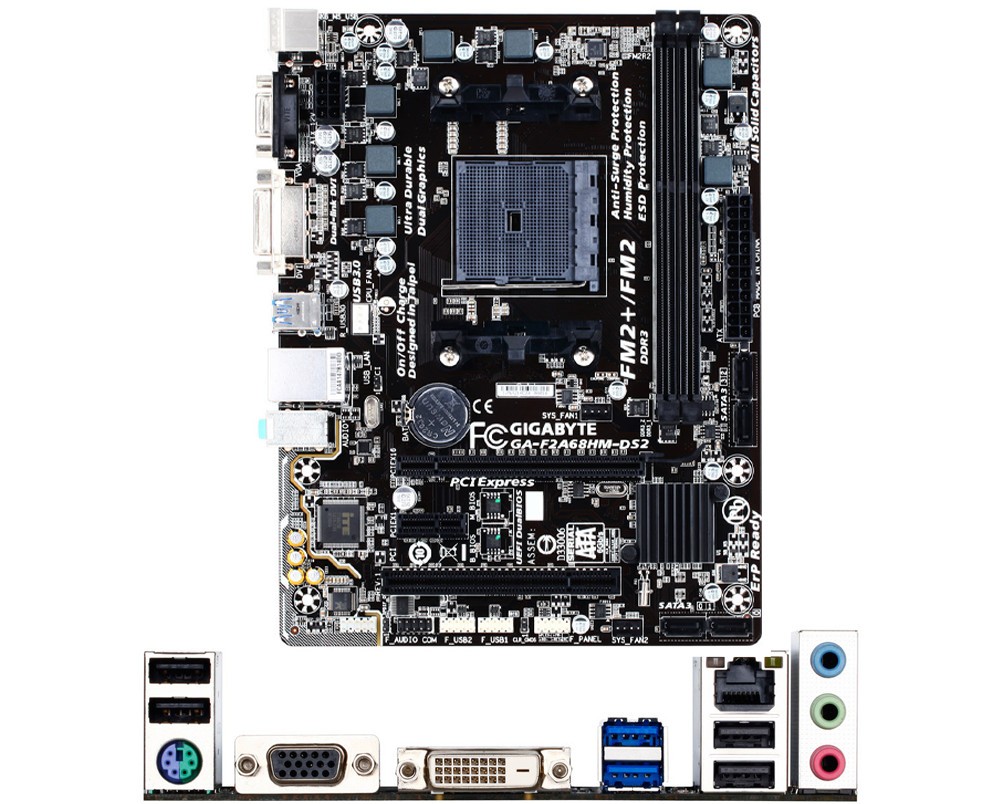

itemintroduction

APU

FM2+ slot:

Supports AMD A-series processors

Supports AMD Athlon™ series A68H

RAM

2 DDR3 DIMM slots, support up to 64 GB

* Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, the actual displayed memory capacity will be less than the actual installed memory capacity.

* To support the maximum system memory capacity*64 GB, a 16 GB (or above) memory module is required.

Supports dual-channel memory technology

Support DDR3 2400(OC)/2133/1866/1600/1333 MHz

Supports AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory

Display function

It needs to be used with APU with integrated graphics:

1 VGA interface, can support up to 1920x1200 resolution

1 DVI-D interface, can support up to 2560x1600 resolution

* To support 2560x1600 resolution, a monitor and monitor cable that supports DVI-D is required.

* This DVI-D interface does not support the function of converting to VGA.

Supports *Maximum Shared Display Memory*2 GB

Sound effect

Built-in Realtek® ALC887 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

* To enable 7.1-channel audio output, you must use the audio output jack on the front panel of the HD (High Definition) audio module, and select the multi-channel audio function through the audio software.

Support digital audio output

The internet

Built-in Realtek® GbE network chip (10/100/1000 Mbit)

Expansion slot

1 PCI-E x16 slot, supporting x16 operation specification (PCI-E x16)

(PCI-E x16 slot supports PCI-E 3.0)

* FM2+ APU is required to support PCI-E 3.0.

1 PCI-E x1 slot

(PCI-E x1 slot supports PCI-E 2.0)

1 PCI slot

Multiple Display Technology

Supports AMD Hybrid Crossfire Technology

* AMD Hybrid Crossfire technology is only supported on A-series APUs.

Supports AMD Eyefinity Technology

Storage device interface

Built in Chipset:

4 SATA 3.0 ports

Supports RAID 0, RAID 1, RAID 10 and JBOD in Chipset:

2 USB 3.0 ports on the rear window of the motherboard

8 USB 2.0 ports (4 on the rear window of the motherboard, 4 need to be connected from the onboard USB socket of the motherboard via a flat cable)

Internal socket

1 24PIN motherboard power socket

1 8PIN CPU power socket

4 SATA 3.0 ports

1 CPU fan header

2 system fan sockets

1 chassis control jumper socket

1 front audio jack

1 onboard digital audio output socket

2 USB 2.0 sockets (each socket can be connected to up to two front ports)

1 onboard COM socket

1 clear CMOS data pin

1 chassis open detection socket

Rear panel unit connection socket

1 PS/2 keyboard/mouse interface

1 VGA interface

1 DVI-D interface

2 USB 3.0 ports

4 USB 2.0 ports

1 RJ-45 network cable interface

3 audio interfaces (audio in, audio out, microphone)

I/O Controller

Built-in iTE® I/O controller chip

BIOS

2 x 64 Mbit flash

Use an authorized AMI UEFI BIOS

GIGABYTE Graphical Dual BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS

Support Windows 8.1/7 32-bit/64-bit

Support Windows XP 32-bit

* To install Windows XP 32-bit, AMD FM2+ Kaveri series APU is required.

* You need Windows XP Service Pack 3 to support Windows XP driver installation.

Form factor

Micro ATX; 22.6 cm x 17.4 cm
