Package Included:

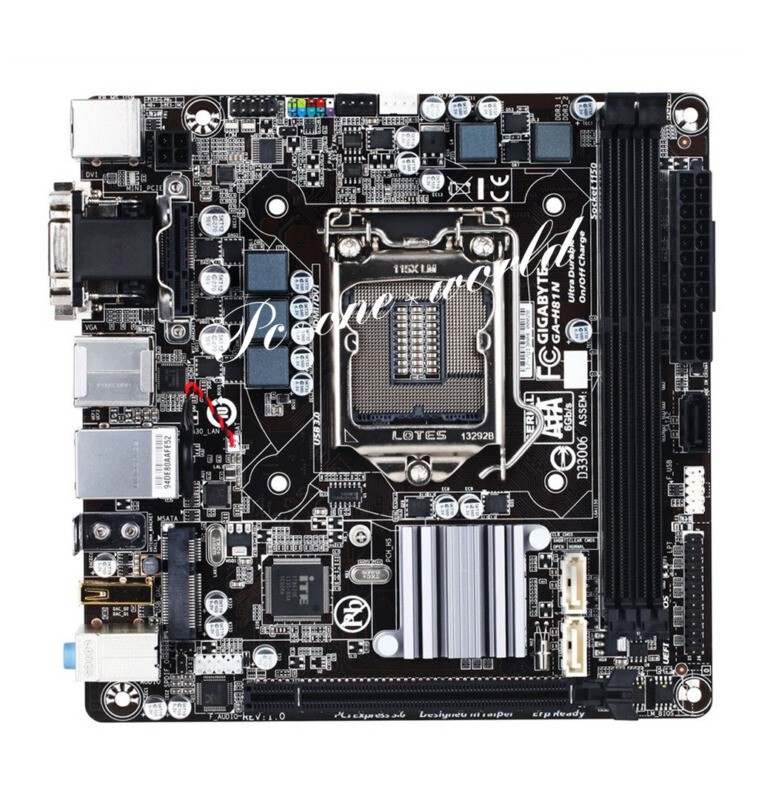

1 x motherboard
1 x I/O back panel
2 x SATA II cable
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.
Parts style="font-family: Arial; font-size: 18px; white-space: normal;">CPU
Support LGA1150 socket processors: Intel® Core™ i7 processor / Intel® Core™ i5 processor / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor
L3 cache depends on CPU
Chipset
Intel® H81 Express Chipset
RAM
2x1.5V DDR3 DIMM slots, support up to 16 GB
* Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, the actual displayed memory capacity will be less than the actual installed memory capacity.
Supports dual-channel memory technology
Support DDR3 1600/1333 MHz
Support non-ECC memory
Supports Extreme Memory Profile (XMP) memory
Display function
Built-in Graphics Capable Processor - Supports Intel® HD Graphics:
1 D-Sub socket, can support up to 1920x1200 resolution
1 DVI-D socket, can support up to 1920x1200 resolution
* This DVI-D socket does not support the function of converting to D-Sub.
1 HDMI socket, can support up to 4096x2160 resolution
* Support HDMI 1.4a version.
Supports *Maximum Shared Display Memory*1 GB
Sound effect
Built-in Realtek® ALC887 chip
Support High Definition Audio
Support 2/4/5.1/7.1 channel
* To enable 7.1-channel audio output, you must use the audio output from the front panel of the HD (High Definition) audio module, and select the multi-channel audio function through the audio software.
Support S/PDIF output
The internet
Built-in Realtek® GbE network chip (10/100/1000 Mbit)
Expansion slot
1 PCI Express x16 slot, supporting x16 operation specification (PCIEX16)
(PCI Express x16 slot supports PCI Express 2.0)
1 mini-PCI Express slot for wireless communication module
* After the wireless communication module is installed, please use the provided screws to fix it.
Storage device interface
Built into the chipset:
2 SATA 6Gb/s sockets (SATA3 0/1)
1 SATA 3Gb/s socket (SATA2)
1 mSATA 3Gb/s socket
USB
Built into the chipset:
2 USB 3.0/2.0 ports on rear panel
7 USB 2.0/1.1 ports (5 on the rear panel, 2 need to be connected to the USB socket on the motherboard via a cable)
Internal socket
1 24-pin ATX main power socket
1 x 4-pin ATX 12V power socket
2 SATA 6Gb/s sockets
1 SATA 3Gb/s socket
1 mSATA 3Gb/s socket
1 CPU fan header
1 system fan socket
1 front control panel socket
1 front audio socket
1 S/PDIF output socket
1 USB 2.0/1.1 socket
1 serial port socket
1 parallel port socket
1 clear CMOS data function pin
1 case open detection socket
Rear panel unit connection socket
1 PS/2 keyboard/mouse socket
1 D-Sub socket
1 DVI-D socket
1 HDMI socket
2 USB 3.0/2.0 ports
5 USB 2.0/1.1 ports
2 Wi-Fi antenna header holes
1 RJ-45 port
3 audio connectors (audio input, audio output, microphone)
I/O Controller
Built-in iTE® I/O controller chip
BIOS
2 x 64 Mbit flash
Use an authorized AMI UEFI BIOS
DualBIOS™ support
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating system
Support Windows 8.1/8/7
Form Factor
Mini-ITX ; 17.0cm x 17.0cm
