please make sure this item is the correct one your wanted before purshasing.

Motherboard Description:

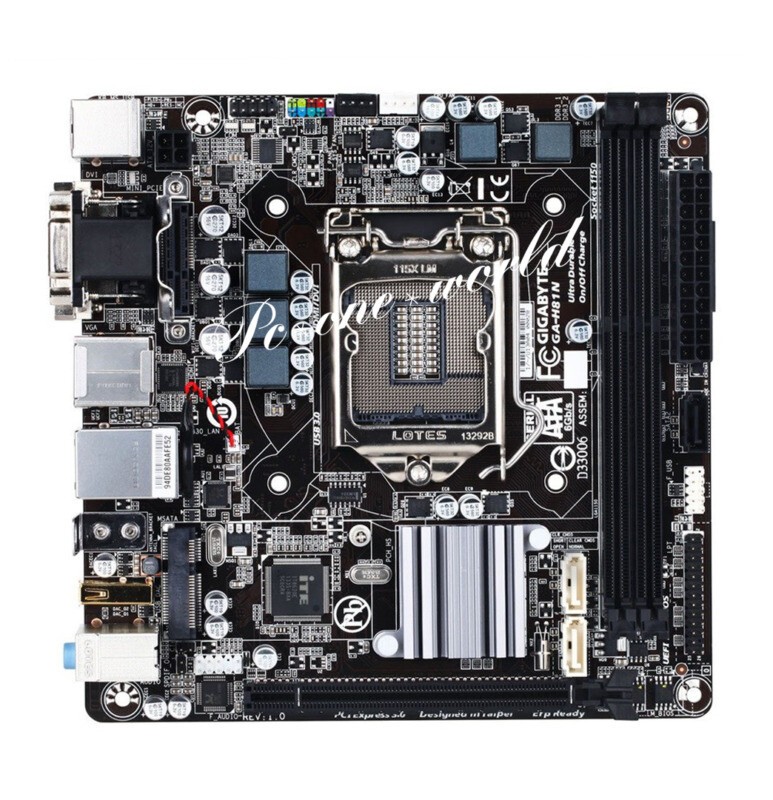

Gigabyte GA-H81N Motherboard LGA 1150 DDR3 DIMM Intel H81 USB3.0 SATA3 Please DO NOT use fake memory, because the motherboard maybe can't support.

Please DO NOT use single-side memory, because some motherboards can't support.

Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.

Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.

Package Included:

1 * motherboard

2 * sata cable

1 x I/O back panel

Product information

CPU

Support LGA1150 socket processors: Intel® Core™ i7 processor / Intel® Core™ i5 processor / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor

L3 cache depends on CPU

Chipset

Intel® H81 Express Chipset

RAM

2x1.5V DDR3 DIMM slots, support up to 16 GB

* Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, the actual displayed memory capacity will be less than the actual installed memory capacity.

Supports dual-channel memory technology

Support DDR3 1600/1333 MHz

Support non-ECC memory

Supports Extreme Memory Profile (XMP) memory

Display function

Built-in Graphics Capable Processor - Supports Intel® HD Graphics:

1 D-Sub socket, can support up to 1920x1200 resolution

1 DVI-D socket, can support up to 1920x1200 resolution

* This DVI-D socket does not support the function of converting to D-Sub.

1 HDMI socket, can support up to 4096x2160 resolution

* Support HDMI 1.4a version.

Supports *Maximum Shared Display Memory*1 GB

Sound effect

Built-in Realtek® ALC887 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

* To enable 7.1-channel audio output, you must use the audio output from the front panel of the HD (High Definition) audio module, and select the multi-channel audio function through the audio software.

Support S/PDIF output

The internet

Built-in Realtek® GbE network chip (10/100/1000 Mbit)

Expansion slot

1 PCI Express x16 slot, supporting x16 operation specification (PCIEX16)

(PCI Express x16 slot supports PCI Express 2.0)

1 mini-PCI Express slot for wireless communication module

* After the wireless communication module is installed, please use the provided screws to fix it.

Storage device interface

Built into the chipset:

2 SATA 6Gb/s sockets (SATA3 0/1)

1 SATA 3Gb/s socket (SATA2)

1 mSATA 3Gb/s socket

USB

Built into the chipset:

2 USB 3.0/2.0 ports on rear panel

7 USB 2.0/1.1 ports (5 on the rear panel, 2 need to be connected to the USB socket on the motherboard via a cable)

Internal socket

1 24-pin ATX main power socket

1 x 4-pin ATX 12V power socket

2 SATA 6Gb/s sockets

1 SATA 3Gb/s socket

1 mSATA 3Gb/s socket

1 CPU fan header

1 system fan socket

1 front control panel socket

1 front audio socket

1 S/PDIF output socket

1 USB 2.0/1.1 socket

1 serial port socket

1 parallel port socket

1 clear CMOS data function pin

1 case open detection socket

Rear panel unit connection socket

1 PS/2 keyboard/mouse socket

1 D-Sub socket

1 DVI-D socket

1 HDMI socket

2 USB 3.0/2.0 ports

5 USB 2.0/1.1 ports

2 Wi-Fi antenna header holes

1 RJ-45 port

3 audio connectors (audio input, audio output, microphone)

I/O Controller

Built-in iTE® I/O controller chip

BIOS

2 x 64 Mbit flash

Use an authorized AMI UEFI BIOS

DualBIOS™ support

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating system

Support Windows 8.1/8/7

Form Factor

Mini-ITX ; 17.0cm x 17.0cm
