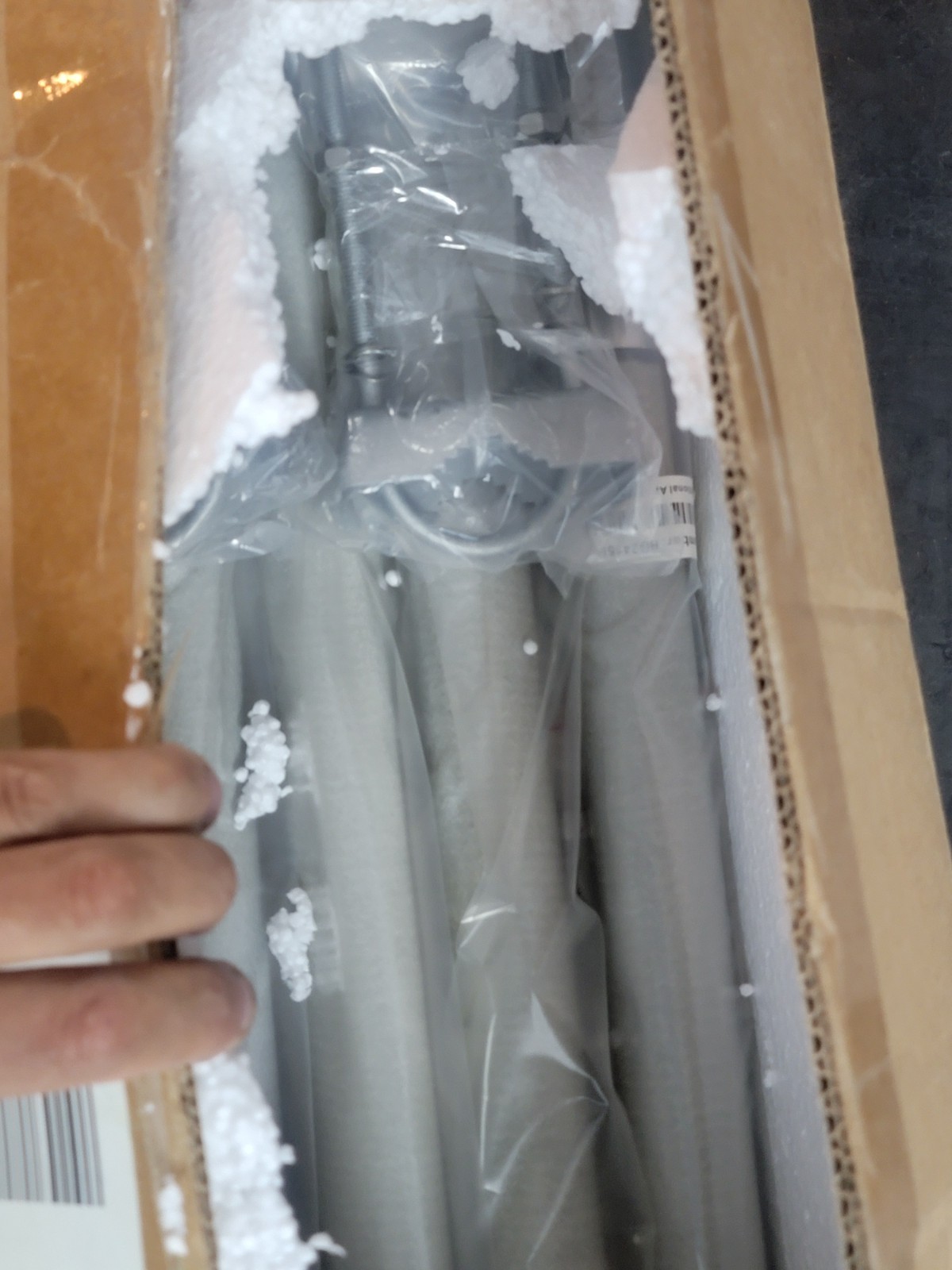

HyperLink HG2415U-PRO 2.4GHz 15dBi Omni Antenna Lot of 5 New w/ Mount HyperLink HG2415U-PRO 2.4GHz 15 dBi Outdoor Omni Antenna — Lot of 5, New in Bag w/ Mounting Brackets HyperGain PRO Series | 2400–2500 MHz | Center-Fed Collinear | New / Unused | Ships from Vancouver, WA 💰 New retail: ~$182 each at L-com / DigiKey — currently on backorder. This lot of 5 saves you hundreds vs. buying new, with the same professional-grade hardware. Ideal for WISP deployments, campus rollouts, or resale. What you're getting: A lot of 5 brand-new HyperLink Technologies HG2415U-PRO 2.4 GHz, 15 dBi outdoor omnidirectional antennas, individually poly-bagged in original manufacturer packaging with foam/peanut padding. Mounting brackets included. These are unused, new-old-stock (NOS) units — never installed or deployed. The HG2415U-PRO is a commercial-grade center-fed collinear dipole array antenna trusted by WISPs, integrators, and enterprise wireless deployments worldwide. Antenna Specifications (Each Unit) ManufacturerHyperLink Technologies (now L-com) ModelHG2415U-PRO (HyperGain PRO Series) Frequency Range2400–2500 MHz (2.4 GHz ISM band) Gain15 dBi Antenna TypeOmnidirectional — 360° horizontal coverage DesignCenter-fed collinear dipole array with internal copper hard-line ConnectorN-Female (integral, at base) Impedance50 Ohm Max Power100W RadomeWhite fiberglass — all-weather / UV rated BaseBrushed aluminum housing PolarizationVertical StandardsIEEE 802.11b/g/n, Bluetooth, ISM band CE CertifiedYes Quantity5 antennas + mounting brackets What's Included
- 5 × HG2415U-PRO antennas — individually poly-bagged, new/unused
- Mounting brackets included — for pole/wall/mast installation
- Original manufacturer packaging (bulk box with foam/peanut packing)
- No cables included — N-female connector at base accepts standard N-type coax
Why the HG2415U-PRO Is the Professional's Choice
- Center-fed collinear design — internal copper hard-line feeds the central phasing element, ensuring all radiating segments receive proper signal amplitude and phase. Outperforms typical bottom-fed designs where upper elements contribute little gain.
- True 15 dBi gain — commercial-grade construction and factory tuning deliver real measured performance, not inflated marketing specs
- 100W power handling — rated for high-power commercial deployments with external amplifiers
- All-weather fiberglass radome — UV-stable construction rated for permanent outdoor installation in any climate
- Integral N-female connector — direct connection at the aluminum base; no pigtail to degrade or fail
- Superior VSWR — factory tuned for minimal reflected power and maximum efficiency at 2.4 GHz
- New / unused — full service life ahead; no weathering, no prior deployment
Applications WISP / Rural ISP Point-to-Multipoint Campus WiFi Deployment Outdoor 802.11b/g/n Meshtastic / LoRa Helium Hotspot 4G LTE Booster Ubiquiti airMAX Mikrotik Public WiFi Hotspot Amateur Radio 2.4GHz HSMM-Mesh IoT Gateway Wireless Video Systems 💡 Deployment tip: At 15 dBi, these antennas have a very flat vertical beamwidth — exceptional horizontal range but limited vertical coverage. Best on elevated masts, towers, or rooftops for maximum line-of-sight reach across flat terrain, campuses, or hilltop WISP nodes. For mixed-elevation client environments, consider pairing with a lower-gain omni on secondary radios. Condition
- New / unused — new-old-stock (NOS), never installed or deployed
- Individually poly-bagged in original manufacturer packaging
- Shipped in original bulk box with foam/peanut packing
- All 5 units have intact radomes and connectors
- Mounting brackets included
- No coax cables included
Shipping & Handling 📦 Ships from Vancouver, WA.
Lot of 5 long antennas — ships in original bulk box via UPS Ground or USPS Priority Mail. Calculated shipping based on buyer location.
Will be carefully repacked to protect all units during transit.
Combined shipping available on multiple purchases from our store. Sold by RETADIT | Vancouver, WA | Questions? Message us before purchasing.
