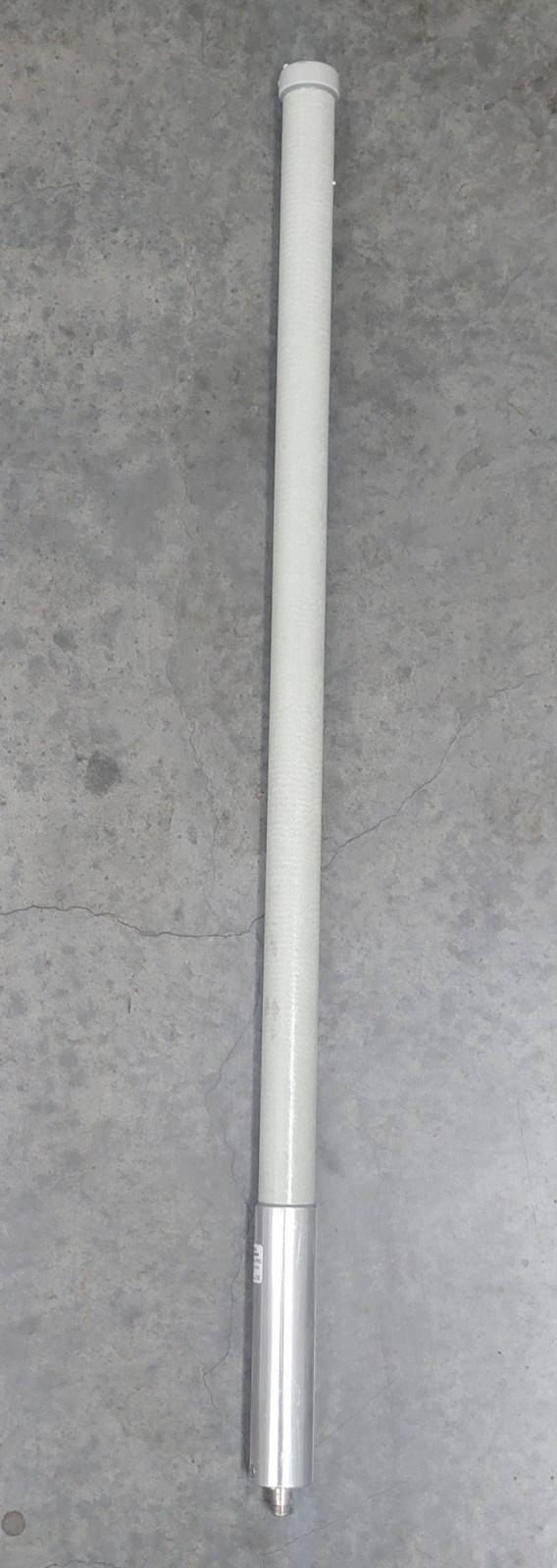

HyperLink HG2415U-PRO 2.4GHz 15dBi Outdoor Omni Antenna HyperLink HG2415U-PRO 2.4GHz 15 dBi Outdoor Omni Antenna — N-Female | WiFi / WISP / Meshtastic HyperGain PRO Series | 2400–2500 MHz | Center-Fed Collinear | Pulled / Used | Ships from Vancouver, WA 💰 New retail price: ~$182 (L-com / DigiKey) — currently on backorder. Buy used and save significantly while getting the same professional-grade antenna. What you're getting: A professional-grade HyperLink Technologies HG2415U-PRO — one of the most respected 2.4 GHz outdoor omni antennas ever made. 15 dBi gain, center-fed collinear dipole array design, weatherproof fiberglass radome, N-female connector at the base. Used/pulled from a working outdoor installation in good condition. This is the same unit currently sold new by L-com for ~$182 and listed as backordered — an excellent opportunity to get a quality commercial antenna at a fraction of the cost. Antenna Specifications ManufacturerHyperLink Technologies (now L-com) ModelHG2415U-PRO (HyperGain PRO Series) Frequency Range2400–2500 MHz (2.4 GHz ISM band) Gain15 dBi Antenna TypeOmnidirectional — 360° horizontal coverage DesignCenter-fed collinear dipole array with internal copper hard-line ConnectorN-Female (integral, at base) Impedance50 Ohm Max Power100W RadomeWhite fiberglass — all-weather / UV rated BaseBrushed aluminum housing PolarizationVertical StandardsIEEE 802.11b/g/n, Bluetooth, ISM band CE CertifiedYes Why the HG2415U-PRO Stands Out
- Center-fed collinear design — unlike cheaper bottom-fed omnis, the PRO uses an internal copper hard-line to feed the central phasing element, ensuring all radiating segments receive proper amplitude and phase. Upper elements contribute full gain instead of degraded signal.
- True 15 dBi gain — commercial-grade construction achieves real measured gain, not inflated marketing specs common in generic antennas
- 100W power handling — built for commercial/WISP deployments with amplifiers, not just consumer routers
- All-weather fiberglass radome — UV-stable, rated for permanent outdoor installation
- Integral N-female connector — no pigtail to fail; direct connection at the aluminum base
- Superior VSWR — factory tuned for minimal reflected power and maximum efficiency
- Made by HyperLink Technologies — now part of L-com, a brand trusted by WISPs, integrators, and ham radio operators worldwide
Applications WISP / Rural ISP Point-to-Multipoint Outdoor WiFi 802.11b/g/n Meshtastic / LoRa Helium Hotspot 4G LTE Booster Ubiquiti airMAX Mikrotik Wireless Video Systems Public WiFi Hotspot Amateur Radio 2.4GHz HSMM-Mesh IoT Gateway Distributed Antenna System 💡 Buyer's tip: At 15 dBi, this antenna has a very flat, narrow vertical beamwidth — exceptional horizontal range but limited coverage directly above or below. Best deployed on elevated masts, towers, or rooftops for maximum line-of-sight reach. Ideal for flat terrain, campuses, or hilltop WISP nodes. Not recommended for indoor use or environments where clients are at varying elevations close to the antenna. Condition
- Pulled / used — removed from a working outdoor wireless installation
- Fiberglass radome is structurally intact — no cracks, breaks, or delamination
- N-female connector at base is clean and undamaged
- Aluminum base housing shows light scratches/scuffing consistent with outdoor mounting
- Some weathering on radome surface — typical for an outdoor-deployed antenna
- No mounting hardware or cables included
- No original packaging or documentation
Shipping & Handling 📦 Ships from Vancouver, WA.
Oversized item — requires a long box or tube. Ships via USPS Priority Mail or UPS Ground; calculated shipping based on buyer location.
Will be carefully packed to protect the radome and connector during transit.
Combined shipping available on multiple purchases. Sold by RETADIT | Vancouver, WA | Questions? Message us before purchasing.
