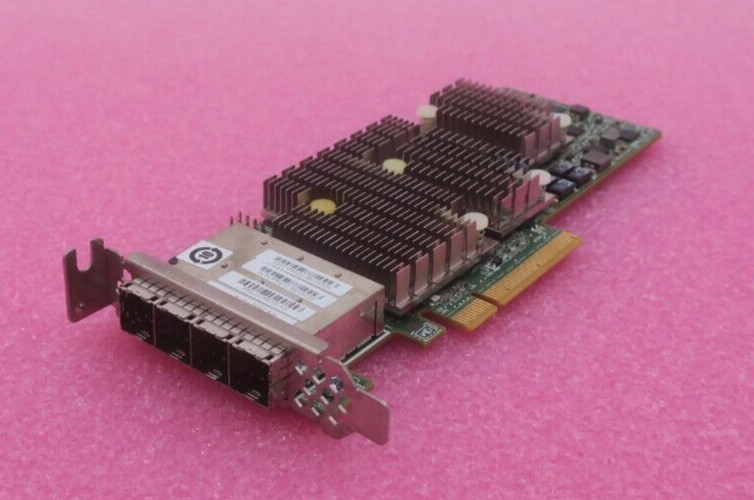

IBM LSI Quad-Port 9206-16e 4x Mini-SAS HD 6Gb/s SAS Host Bus Adapter HBA 00Y7062IBM P/N:00Y7062Model:9206-16e
In Good Condition, Full Working OrderTested2 Year WarrantyLow Profile Card With Half Height BracketIncluded

• 1 x IBM LSI Quad-Port 9206-16e 4x Mini-SAS HD 6Gb/s SAS Host Bus Adapter HBA 00Y7062

Overview

• IO Controller: Two, LSISAS2308/ Fusion MPT 2.0
• Storage Connectivity Data Transfer Rates: 16 ports; 6Gb/s SAS 2.1 compliant
• SAS Bandwidth:
• Half Duplex
• 2400MB/s, x4, 6Gb/s SAS lanes
• Port Configurations:
• 16 ea, x1 ports (individual drives)
• 4 ea, x4 wide ports
• 2ea , x8 wide ports
• Host Bus: x8 lane, PCI Express 3.0 compliant
• PCI Data Burst Transfer Rates:
• Half Duplex
• 8000MB/s, x8, PCIe 3.0
• Physical Dimensions: 68.90 x 167.65 mm
• Connectors: Four (x4) mini-SAS HD external connector(SFF8644)
• Brackets: Half height and low profile card
• Cable Support: Passive Copper, Active Copper, Active Optical
• Operating Voltage: +12V +/-8%; 3.3V +/-9%
• PCI Power (Nominal): 25.8W
• Device Support: 1024-SAS/SATA devices

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£80 excluding VATVAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKCS 310865
