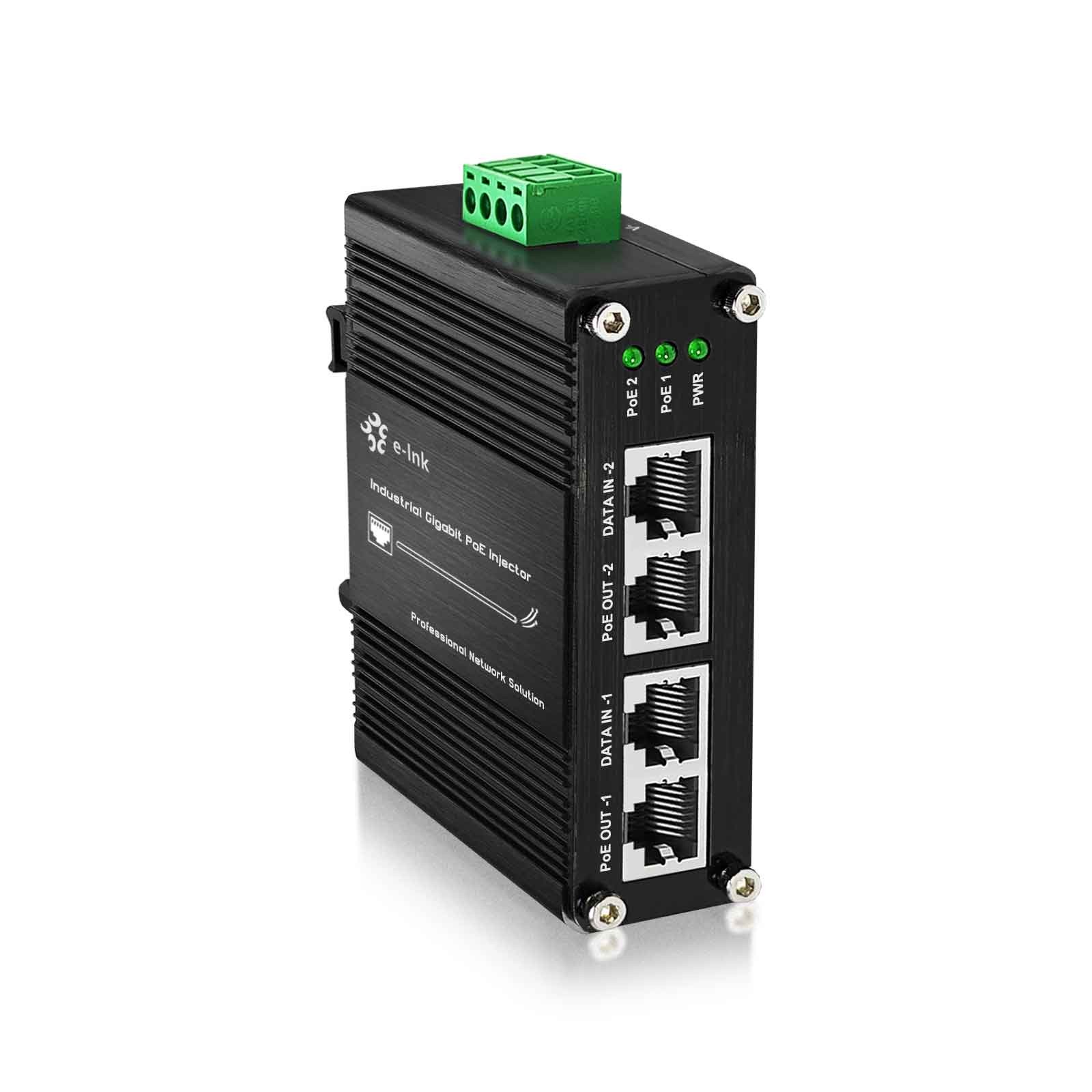

Industrial 2Port Gigabit 60W PoE Injector Harsh Environment Network ApplicationsE-link 60W Gigabit PoE Injector
The LNK-INJ302product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Key Features
- 12~48VDC Power Input
- 2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port(Data + Power)
- Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment
- Max 60W PoE at one port, total POE power less than 60W
- Support 10/100/1000Base-TX
- Support DIN-Rail & Wall-mount installation.Gigabit Injector
- Extensive LED indicators for PoE diagnostics
Overview
The LNK-INJ302 represents an industrial-gradeGigabit PoE injectorspecifically engineered for demanding networking environments. This hardened2-port Gigabit PoE injectordelivers robust performance through its dual-port configuration, supporting IEEE 802.3at standards while maintaining full backward compatibility with IEEE 802.3af devices. The versatiledual-port Gigabit PoE injectorenables seamless integration of multiple PoE-enabled devices into existing non-PoE network infrastructure, providing a cost-effective solution for network expansion.
This high-performanceindustrial Gigabit PoE injectormaintains complete network functionality across all connections, supporting 10/100/1000Base-T transmission standards while extending both data and power connectivity up to 100 meters. Featuring a wide 12-48V DC input range, thisreliable Gigabit PoE injectoraccommodates various power systems in commercial and industrial settings where uninterrupted operation is essential. The rugged construction of thisprofessional Gigabit PoE injectorensures consistent performance in challenging conditions where conventional equipment might fail.
The advancedpower sourcing Gigabit PoE injectorincorporates intelligent detection technology that automatically identifies compatible powered devices while safeguarding non-PoE equipment from accidental power activation. Thishigh-availability Gigabit PoE injectoris particularly suitable for powering multiple network devices including IP surveillance cameras, wireless access points, and VoIP communication systems that require stable PoE+ power delivery. The unit’s efficient thermal management and industrial-grade components make thishardened Gigabit PoE injectorideal for installations demanding continuous, reliable operation.
Engineered for flexible deployment, thisenterprise-grade Gigabit PoE injectorenables multi-device connectivity while maintaining full Gigabit Ethernet performance across all ports. The wide input voltage compatibility and advanced protection mechanisms ensure secure operation in diverse environmental conditions. Thisindustrial-strength Gigabit PoE injectorprovides organizations with a scalable power solution for expanding their network capabilities while maximizing existing infrastructure investments, making it an optimal choice for commercial security systems, industrial automation networks, and telecommunications applications requiring dependable multi-device power distribution.
Wide-Range DC Input Compatibility
Accepts 12-48V DC power input for flexible integration with various industrial and vehicle power systems.
Dual-Port Network Connectivity
Features two independent RJ45 data inputs and two PoE output ports for simultaneous multi-device power and data transmission.
Application
- Industrial Automation Networks
Deployed infactory control systemsandmanufacturing facilities, thisindustrial PoE injectorpowersmultiple sensors,motor controllers, andHMI panelswithdual-port outputandwide voltage inputformachine automation systems. - Outdoor Surveillance Systems
Supportingextended temperature operation, thishardened PoE injectordelivers60W PoE+ powertoPTZ camerasandoutdoor wireless APsinharsh environmentswithrobust environmental protection. - Transportation Infrastructure
Utilizing12-48V DC input, thevehicle PoE injectorenablesstable power deliveryforonboard surveillanceandpassenger information systemsinfleet managementandpublic transportation networks. - Smart Building Deployments
Integrated intobuilding automation systems, thisdual-port injectorsupportsaccess control systems,digital signage, andlighting controllerswithDIN-rail mountingforelectrical cabinet installation.
Why Choose Us
- High-Efficiency PoE+ Standard Support
Compliant with IEEE 802.3at Power over Ethernet Plus standard, delivering enhanced power delivery capabilities. - Advanced Power Management
Supports maximum 60W output on single port with intelligent total power management under 60W capacity. - Gigabit Network Performance
Maintains full 10/100/1000Base-TX network speeds across all ports while providing stable PoE+ power delivery. - Flexible Installation Options
Compatible with both DIN-rail and wall-mount installation methods for versatile deployment in various environments. - Comprehensive Status Monitoring
Multiple LED indicators provide real-time diagnostics for power status, network activity, and PoE operation conditions.
Technical Indexes
Ethernet
Standards:
IEEE802.3af Power over Ethernet
IEEE802.3atPower over Ethernet
Processing Type:
Forward
Half-duplex, Full-duplex
Forward Filter Rate:
1,488,000pps (1000Mbps)
Cabling:
10/100/1000Base-T: Cat5 or above
Maximum Distance:
Cat5 UTP up to 100m
Connector:
4x RJ45
Environmental
Operating Temperature:
-40°C to 80°C (-40°F to 176°F)
Storage Temperature:
-40°C to 85°C (-40°F to 185°F)
Relative Humidity:
5% to 95% non-condensing
MTBF:
>200,000hrs
Electrical and Mechanical
Input Power:
12~48VDC (Terminal Block)
Power Consumption:
70W Max.
PoE (Power over Ethernet)
Standard:
IEEE802.3af/at
Port:
RJ45
Power Pin Assignment
4/5(+), 7/8(-)
Max. Power per Port:
60W Max (Alternative B Mode)
LED Indicators:
Power:
Power Status
PoE:
PoE Status
Dimensions (WxDxH):
95 x 70 x 30mm
Weight:
0.26Kg
Casing:
Aluminum Case
Mounting Options:
DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
CE-EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV
Ordering Information
Model
Description
LNK-INJ302
12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector
Mounting Options
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options
► Power Supply is to be purchased usPaymentWe accept
