Overview:

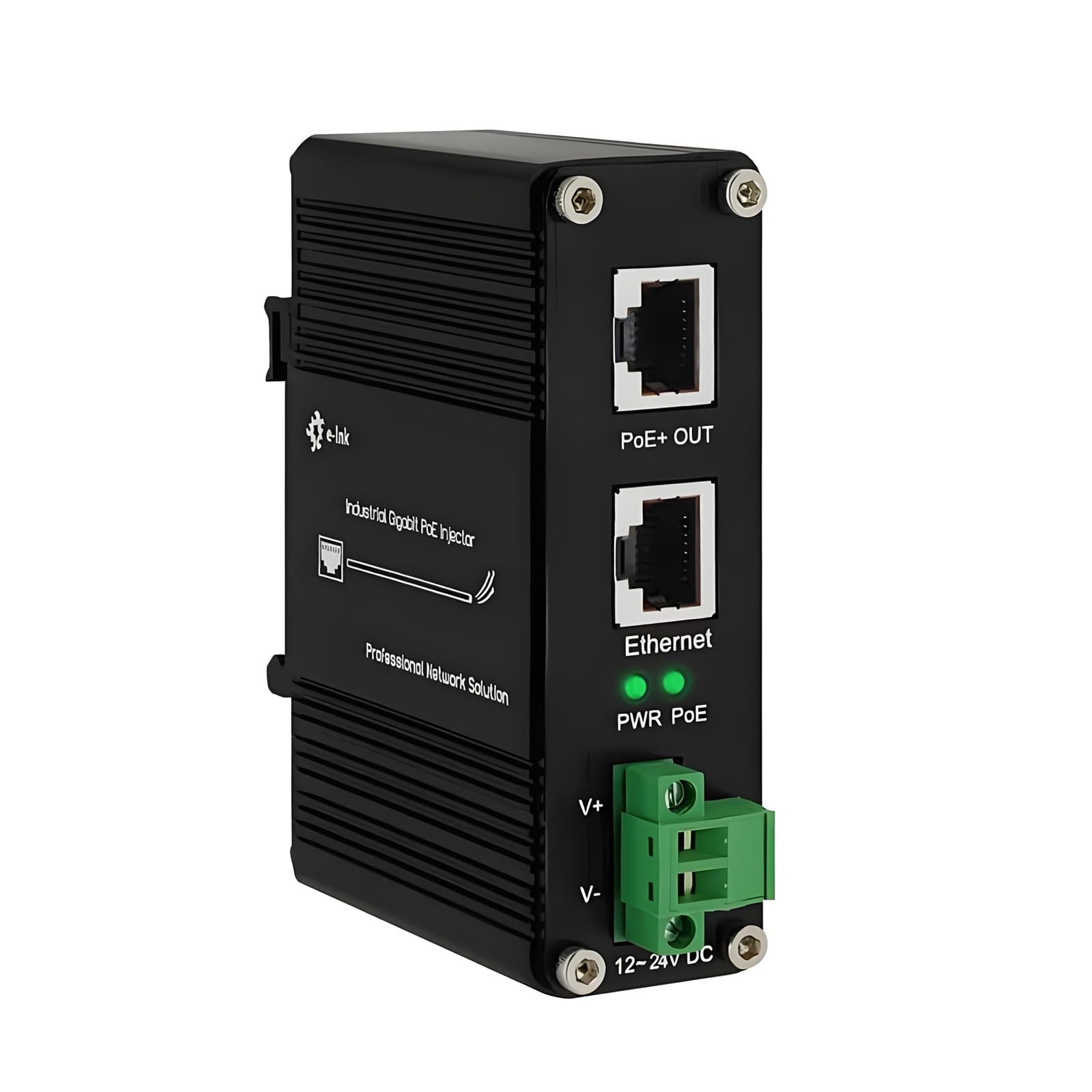

The itemis an industrial hardened gigabit passivePoE injector allows you to connect the24v passivePoE devicessuch as and access point with a non PoE LAN switch within the distance of100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device), support10/100/1000Base-TX.The PoE injector provides an integrated power solution with a wide range voltage of12~24VDCfor high availability applications.
Features:
1 RJ45 Ethernet Data Input Port + 1 RJ45 Powerover Ethernet Output Port(Data + Power)
Support 24VPower over Ethernet (PoE) Power Sourcing Equipment
Support 12~24V DC input and boost to 24V PoE output
Support10/100/1000Base-TXRJ45
SupportDIN-Rail & Wall-Mountinstallation
Extensive LED indicators for PoE diagnostics
Specifications:
Interface:2 x RJ-45 (Data-In, Data-PoE Out)
Ethernet Data Rate:10/100/1000MbpsPower
Input:12~24VDC (Terminal Block)
Power Pin Assignment:4,5(+); 7,8(-)Mode-B
Support Mode A-1,2(+);36(-) customization
Transmission Distance: 100m (328 feet)
CasingMaterial: Aluminum alloy
Operating Temperature:-40°C to 80°C(-40°F to 176°F)
Dimensions (WxDxH):95*70*30 mm (3.74*2.76*1.18 inch)
Weight:0.25Kg (0.55Ib)
:3-Year
Package:
1 * 24V PassivePoE Injector
1 * POE injector User Manual
1 * L-Shaped Wall Mount bracket
【12~24V DC Input】- The passive PoE injector supports 12~24V DC input and boost to 24V PoE output. It will solve the problem that you only have 12V centralized power supply.
【Industrial Quality】- The PoE adapter uses industrial components and aluminum housing. -40℃ to 80℃ operating temperature and you can use it in outdoor harsh environment.
【3.74x2.76x1.18in Small Size】- The 24V PoE injector has compact design and need small space to install. Plug and play, convenient to operate.
【Din-Rail & Wall Mount】- The gigabit PoE injector comes with 35mm Din-rail clip and wall mount accessories. You have more choices to install it.
【Matters Needing Attention】- This device outputs 𝐩𝐚𝐬𝐬𝐢𝐯𝐞 𝐏𝐨𝐄 (forced power) without IEEE negotiation. Please ensure the connected device supports passive PoE.
