If 12/24/36V PoE output is required, please choose passiveswitch

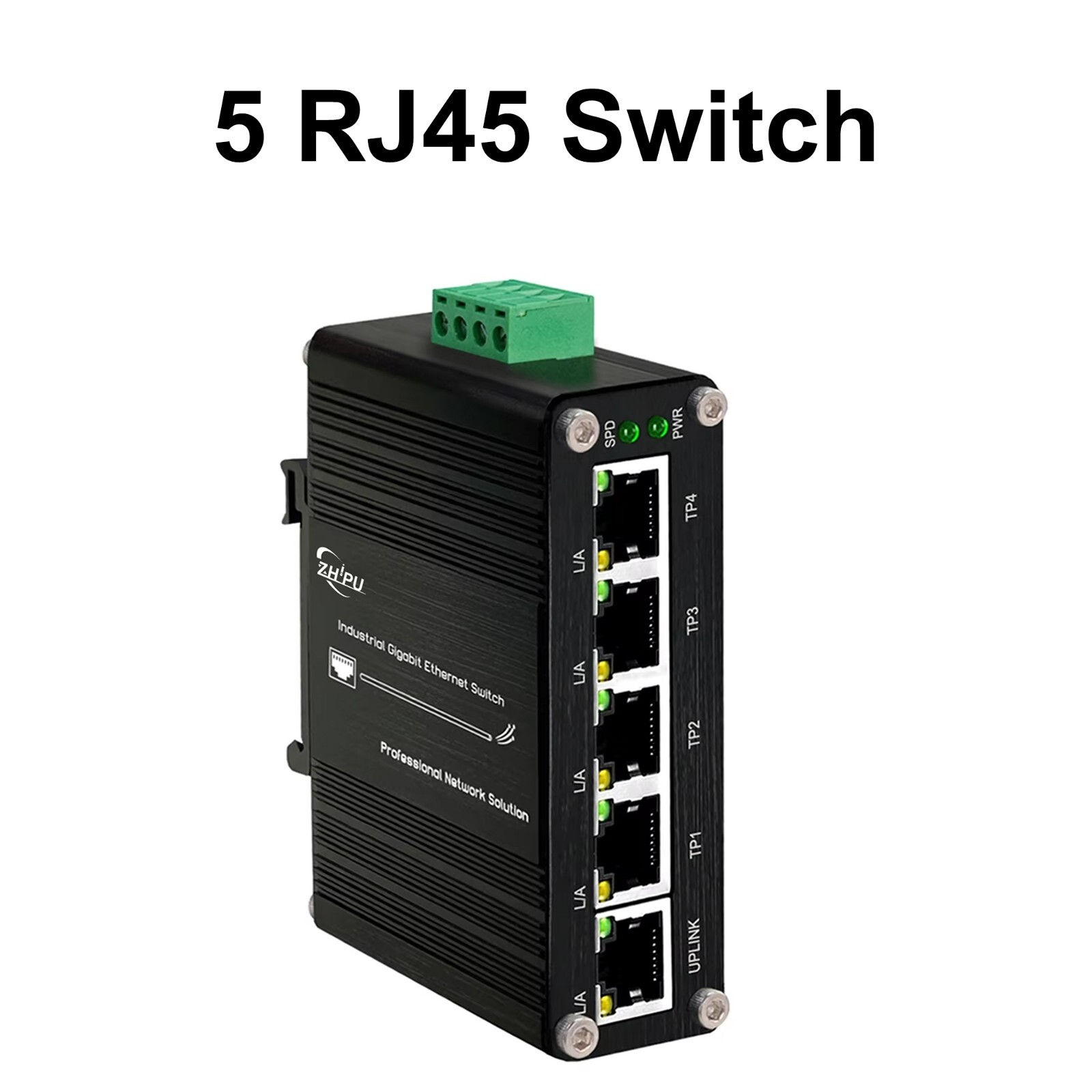

5 RJ45

►5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
►Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
►12~48VDC wide range power input
►Supports 802.3x Flow control
►PoE Optional
►Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
►Supports DIN-Rail and Wall-mount installation
►Industry standard design, dustproof and close design IP40, rugged high-strength metal case
►-40°C to 80°C (-40°F to 176°F) operating temperature

Passive PoE

►5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
►Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
►12~24VDC wide range power input and redundant power input, 24V PoE Output
►Supports 802.3x Flow control
►Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
►Supports DIN-Rail and Wall-mount installation
►Industry standard design, dustproof and close design IP40, rugged high-strength metal case
►-40°C to 80°C (-40°F to 176°F) operating temperature

PoE

►5 x 10/100/1000BASE-T ports
►5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
►12~48VDC wide range power input
►Supports 802.3x Flow control
►Supports DIN-Rail and Wall-mount installation
►Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
►Industry standard design, dustproof and close design IP40, rugged high-strength metal case
►-40°C to 80°C (-40°F to 176°F) operating temperature

ZP-IMC005G-Plus Series

The Plus version comes with upgraded chips and casing, ensuring more stable and continuous performance in harsh environments.

·5 10/100/1000Base-TXRJ45 with Auto-MDI/MDIX

·Supports IEEE 802.3af/at PoE+ (TP1-TP4 ports), PoE optional

·Supports12~48VDC wide voltage Redundant Power Inputand boost to 48V PoE output

·Supportsup to 120wPoE budget (48VDC), 90wPoE budget (24VDC), 60wPoE budget (12VDC)

·Support WEB management (managed switch optional), Port Management, VLAN, QoS etc. basic functions

·Support DIN-Railinstallation; Design of brushed oxidized aluminum alloy housing

·Environmentally hardened -40℃ to 75℃ (-40℉ to 167℉) operating temperature

·Extensive LED indicators for network diagnostics
