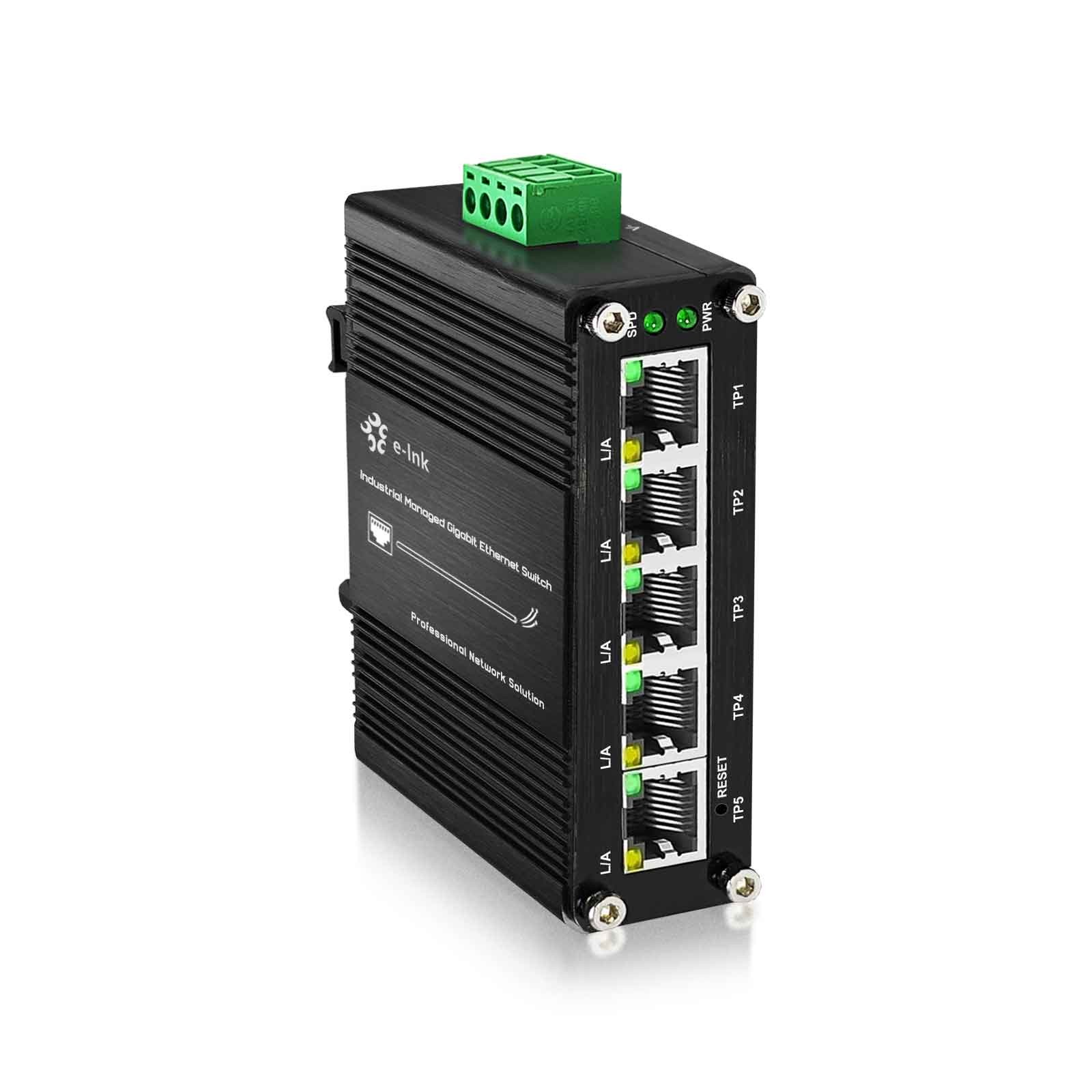

Managed Mini Industrial 5 Ports Gigabit Ethernet Switch Hardened 1000Mbps 12~48VSimple 5-Port Managed Gigabit Switch

5-Port Managed Switch, Entry-Level Gigabit Series is a Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48V DC wide range power input. This managed industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

LNK-IMC005GPM can also operate at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

• 5 x 10/100/1000BASE-Tports
• 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
• 12~48VDC wide range power input
• Supports 802.3x Flow control
• Supports WEB Management
• Supports DIN-Rail and Wall-mount installation
• Up to 120-watt PoE budget (48VDC)
• Up to 90-watt PoE budget (24VDC)
• Up to 60-watt PoE budget (12VDC)
• -40°C to 80°C (-40°F to 176°F) operating 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3x Full-Duplex Flow ControlIEEE 802.3az Energy Efficient Ethernet (EEE)IEEE 802.3at Power over Ethernet Plus PSEIEEE 802.3af Power over Ethernet PlusForward & FilteringRate:14,880pps (10Mbps)148,800pps (100Mbps)1,488,000pps (1000Mbps)Packet Buffer:1MbitsPacket Length:10KbytesMAC Address Table:8KSwitch Fabric:10Gbps/non-blockingExchange PropertyBackplane bandwidth: 20Gbps; Packet forwarding rate:14.88MppsConnector:5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

  4 ports with 802.3at PoE+ (Ports 1 to 4)

  PoE (Power over Pin Assignment1/2/4/5(+), 3/6/7/8(-)PoE Budget:Up to 120-watt PoE budget (48VDC),

  90-watt PoE budget (24VDC),

  60-watt PoE budget (12VDC)

  EnvironmentalOperating Temperature:-40°C to 80°C (-40°F to 176°F)Storage Temperature:-40°C to 85°C (-40°F to 185°F)Relative Humidity:5% to 95% non-condensingMTBF> 200,000 hrsElectrical and MechanicalInput Power:12~48VDC(Terminal Block)Power Input Overload:Automatic ResettableReverse Polarity:PresentReset ButtonSupportDimensions (WxDxH):95x 70 x 29 mmWeight:0.25KGCasing:Aluminum CaseMounting Options:DIN-Rail / Wall-mountLED IndicatorsPWRPowerSPDData rateL/ALink/ActivityPoEPoE StatusWEB ManagementFeaturesSystem SettingsDevice Info; Account Settings; Restoring; Reboot; UpgradePort ManagementPort Settings; Port Mirroring; Port Statistics; Rate LimitVLANSettings802.1Q VLAN; PVID Settings; Hybrid ModeLoop DetectionSupportSaving SettingsGet Configuration; Restore Configuration; Saving ConfigurationDefault IP192.168.40.253Default User NameadminDefault PasswordadminRegulatory ApprovalsISO9001EN55022:2010+AC: 2011, Class AEN 61000-3-2: 2006+A1: 2009+A2: 2009EN 61000-3-3: 2013EN55032:2017IEC 61000-4-2: 2008 (ESD)1IEC 61000-4-3: 2010 (RS)IEC 61000-4-4: 2012 (EFT)IEC 61000-4-5: 2014 (Surge)IEC 61000-4-6: 2013 (CS)

  Ordering Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet SwitchMounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.Power Options► Power Supply is to be purchased separately
