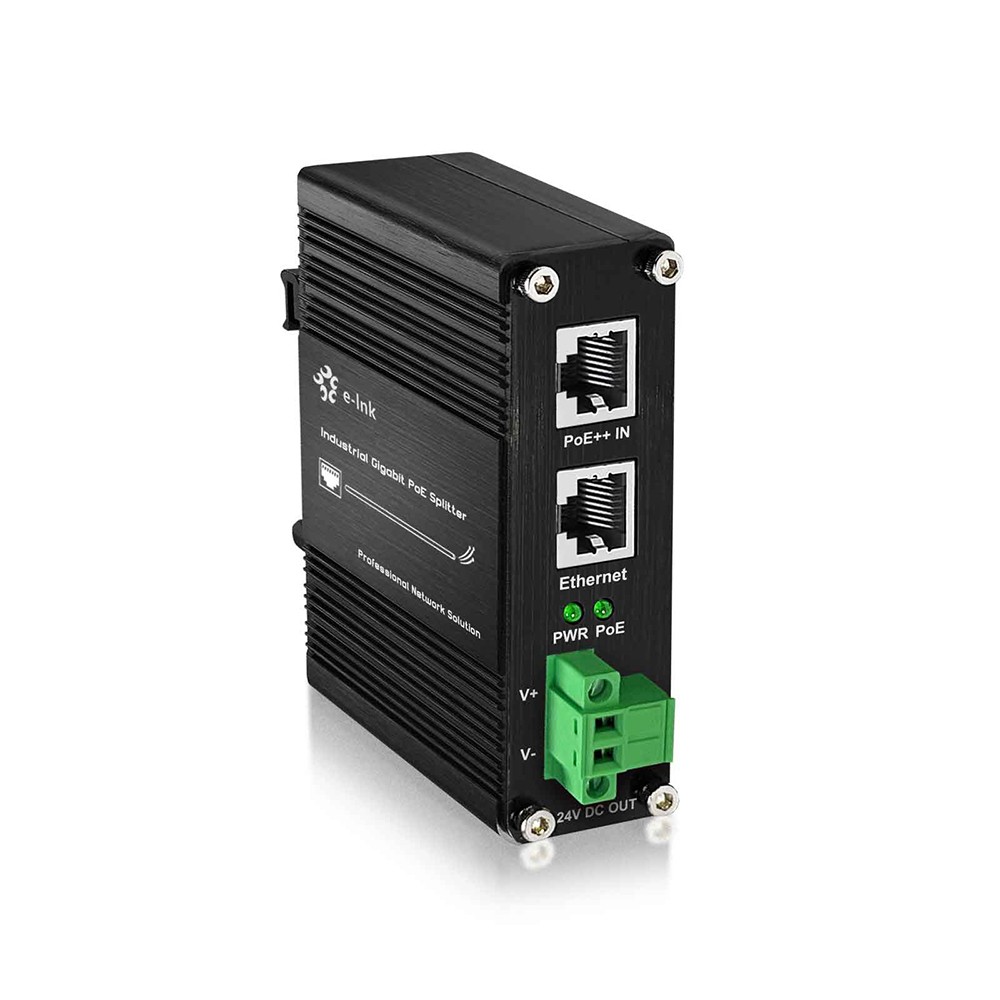

Industrial PoE Splitter IEEE 802.3bt Compatible 24VDC Output DIN Rail MountE-lnk Industrial PoE Splitter with Gigabit Speed

Supporting fullIEEE 802.3af/at/btPoE++ standardsand10/100/1000Base-TEthernet, this 24V PoE Splitter works seamlessly with various PoE switches and network devices. The versatile power output configuration accommodates diverse 24VDC equipment including IP cameras, access points, and industrial controllers without requiring separate power supplies.

Robust Industrial-Grade Protection

Featuringshort-circuit protectionandIP40-rated metal housing, this fanless PoE Splitter ensures safe operation in demanding environments. The rugged construction provides excellentheat dissipationand EMI shielding while maintaining stable performance across-40°C to 80°Ctemperature range, ideal for factory automation and outdoor applications.

Intelligent Installation & Monitoring

Equipped with comprehensiveLED diagnostic indicatorsand dual mounting options forDIN-railorwall installation, this PoE 24V Splitter simplifies deployment and maintenance.

Application

• Legacy Device Network Integration:Connects conventional 24VDC industrial equipment including access control systems, analog cameras, and sensor arrays to modern PoE network backbones, eliminating separate AC wiring requirements.
• Outdoor and Harsh Environment Deployments:Supports installation of non-PoE devices in extreme conditions through its wide temperature operation and robust IP40 protection rating.
• Distributed IoT Network Expansion:Extends network connectivity to remote edge computing nodes and IoT sensors.
• Industrial Automation Retrofitting:Facilitates migration of legacy automation equipment to IP-based networks by separating data and power from single Ethernet cable runs.
• Flexible Network Topology Implementation:Enables star, linear, and point-to-multipoint network architectures through 100-meter transmission capability and flexible mounting options.

Overview

The LNK-INS901 series is a high-performance industrial-grade Gigabit PoE splitter engineered to deliver both data connectivity and reliable power to non-PoE devices in demanding environments. By converting standardPower over Ethernet (PoE)fromIEEE 802.3af/at/btcompliant switches or midspan injectors into separate data and power outputs, this device eliminates the need for expensive electrical wiring while maintaining full Gigabit Ethernet speeds over distancesup to 100 meters. Featuring a robust RJ-45 Ethernet input and secure screw terminal block for power output, the splitter supports24VDCoutput ideal for powering various edge devices including access points, IP cameras, and IoT sensors.

Designed for seamless integration into industrial networks, the LNK-INS901 operates as a powered device (PD) that works seamlessly with standard PoE switches or can be paired with high-power PoE injectors like the LNK-INJ-48-95W for enhanced flexibility. Its industrial-grade construction ensures reliable performance in harsh conditions, featuring wide operating temperature tolerance and protection against vibration and electrical interference. The splitter’s plug-and-play design requires no software configuration or specialized tools, significantly reducing installation time and maintenance costs while providing immediate operation upon connection.

This versatile PoE splitter provides an ideal solution for expanding network connectivity to remote locations where electrical infrastructure is limited or unavailable. By combining data transmission and power delivery over a single Ethernet cable, it substantially reduces deployment complexity and costs associated with separate power supplies and data connections. The LNK-INS901’s rugged design and reliable performance make it particularly suitable for industrial automation, smart city deployments, security systems, and outdoor applications where both network connectivity and stable power are essential for continuous operation of edge devices and sensors.

Why Choose Us

• Universal PoE Compatibility– Full IEEE 802.3af/at/bt support converts standard PoE++ input to 24VDC output for non-PoE devices
• Certified Industrial Quality– ISO9001 & FCC certified with 100% aging testing, ensuring 99.9% reliability in harsh environments
• Advanced Safety Protection– Integrated short-circuit protection and IP40 metal housing guarantee fail-safe operation
• Flexible Installation– DIN-rail and wall-mount design with diagnostic LEDs enables rapid deployment and real-time monitoring
• Extended Temperature Operation– Stable performance from -40°C to 80°C eliminates downtime in extreme conditions

Technical Indexes

Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3atPower over Ethernet Plus

IEEE 802.3bt 4-pair Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Interface:

“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T

“Data” Out Port: 1 x RJ-45 10/100/1000Base-T

DC Out Plug Connector: 1 removable 2-Pin terminal block

Power over Ethernet

PoE Standard:

IEEE 802.3af/at/bt Power over Ethernet

Number of devices that can be powered:

1 (24VDC)

(Vary on device’s power requirement; cannot be over 40 watts.)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Power Output:

40W 24VDC (Terminal Block)

Power Consumption:

45W Max.

LED Indicators:

PWR:

24VDC Power OUT

POE:

PoE Power IN

Dimensions (WxDxH):

95 x 70 x 30mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV

Ordering Information

Model

Description

LNK-INS901-24V

Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 40W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is usPaymentWe accept
