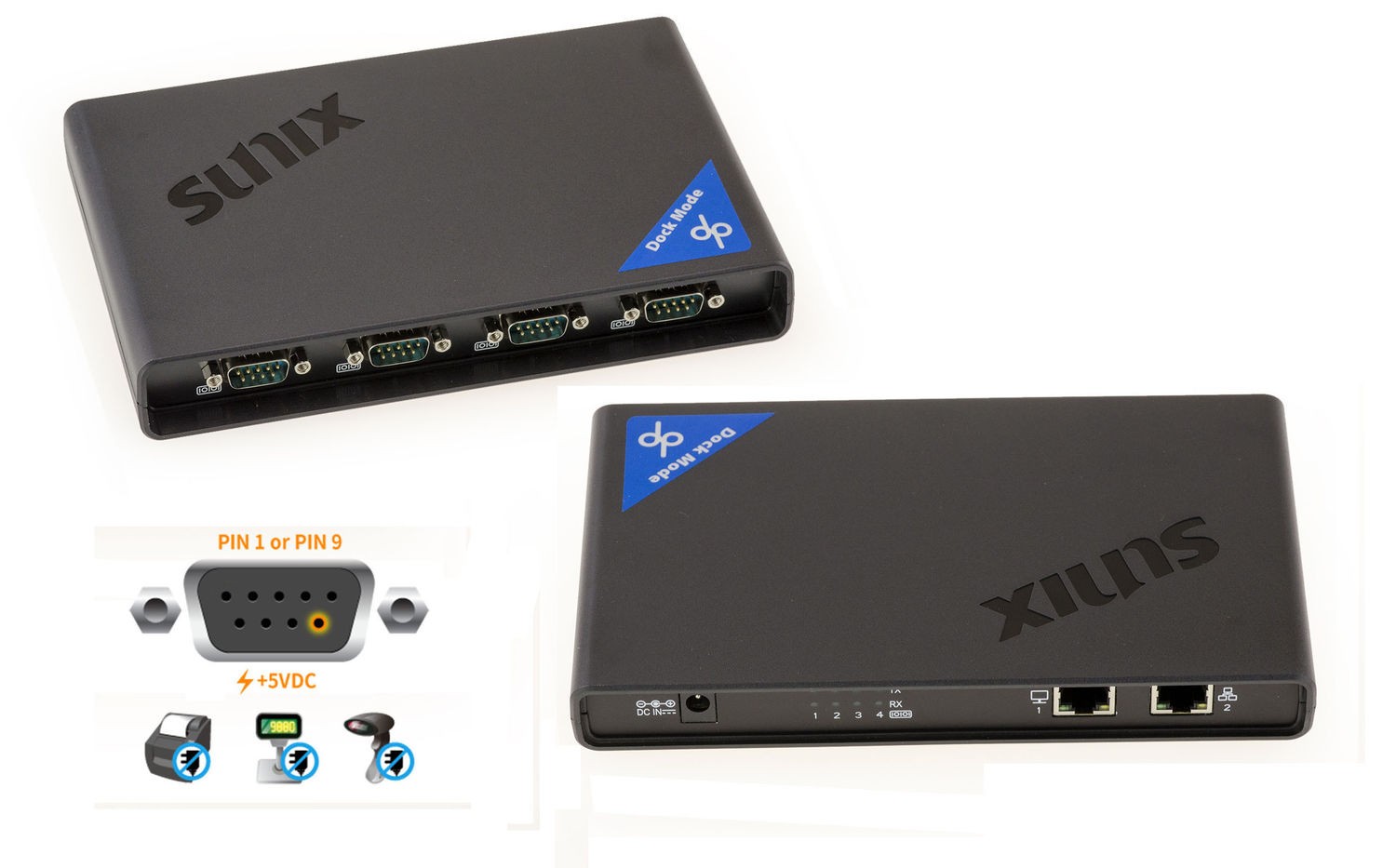

RS2324 Ethernet Replicator RS-232 ports Individual power supply of +5VDC ports
Features :
SUNIX manufacturing (Reference DPKS04HP0)
SUNIX DPL2000Q CHIPSET
SERIAL COMMUNICATION 4 RS-232 ports, male DB9 connectors.
FIFO 1Kbyte hardware per port.
DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI signals.
Transfer rate of 50bps ~ 115.2Kbps.
Stop Bit 1, 1.5, 2.
Parity even, odd, none, mark, space.
Flow Control None, Xon/Xoff (software)
Protections: ±15KV ESD IEC6000-4-2 Air Discharge / ±8KV ESD IEC61000-4-2 Contact Discharge / ±4KV ESD IEC61000-4-2 Level2 Line-to-Line.
Individual power supply of each serial port with 5V (750mA per port) on pin 9, 1.1A PTC fuse.
ETHERNET COMMUNICATION 2 RJ45 connectors: 1x “upstream” to the switch, 1x “downstream” to the PC.
Speed 10/100 Mbps, auto MDI/MDIX.
1.0K magnetic protection.
Drivers for: XP/Vista/7/8.x/10(X86/X64) - Server 2003/2008/2012 (x64).
Standards: EUR: CE EN55022 Class B, EN55024 / US: FCC Part 15 Class B / TAIWAN: BSMI: CNS13438 / JAPAN: VCCI.
Environment: 0 to 45°C (operation), 5 to 95% RH, -20 to 85°C (storage).
ABS and metal case, weight 283g, Dimensions 190x119.58x27.
Power supply from 5 to 12V, supplied with cords to power the box on a USB plug and 5V mains power supply. RS2324 Ethernet Replicator RS-232 ports Individual power supply of +5VDC ports Protections: ±15KV ESD IEC6000-4-2 Air Discharge / ±8KV ESD IEC61000-4-2 Contact Discharge / ±4KV ESD IEC61000-4-2 Level2 Line-to-Line. Individual power supply of each serial port with 5V (750mA per port) on pin 9, 1.1A PTC fuse. ETHERNET COMMUNICATION 2 RJ45 connectors: 1x “upstream” to the switch, 1x “downstream” to the PC. Drivers for: XP/Vista/7/8.x/10(X86/X64) - Server 2003/2008/2012 (x64). Standards: EUR: CE EN55022 Class B, EN55024 / US: FCC Part 15 Class B / TAIWAN: BSMI: CNS13438 / JAPAN: VCCI. Environment: 0 to 45°C (operation), 5 to 95% RH, -20 to 85°C (storage). ABS and metal case, weight 283g, Dimensions 190x119.58x27. Power supply from 5 to 12V, supplied with cords to power the box on a
