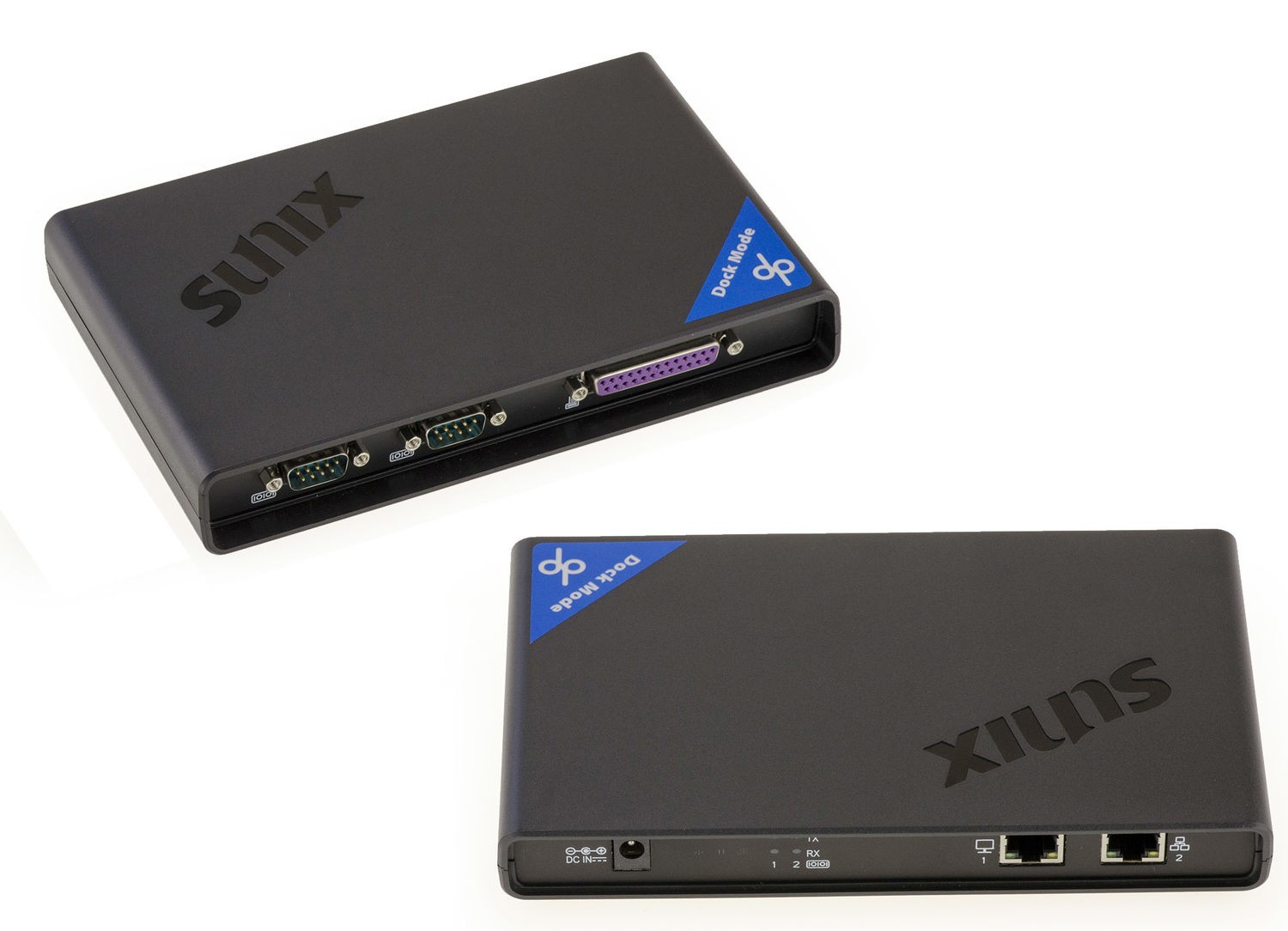

RS2322 Ethernet Replicator RS-232 Ports + 1 LPT Port Characteristics:
SUNIX manufacturing (Reference DPKM21H00)
SUNIX DPL2000Q CHIPSET SERIAL COMMUNICATION 2 RS-232 ports, male DB9 connectors
FIFO 1Kbyte hardware per port
Signals DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Transfer rate of 50bps ~ 115.2Kbps
Stop Bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff (software)
Protections: ±15KV ESD IEC6000-4-2 Air Discharge / ±8KV ESD IEC61000-4-2 Contact Discharge / ±4KV ESD IEC61000-4-2 Level2 Line-to-Line PARALLEL COMMUNICATION Printer support (will not support "Key lockers" and other devices on LPT port)
FIFO 1Kbyte hardware per port
Maximum speed 2.7Mbps
1 female DB25 port ETHERNET COMMUNICATION 2 RJ45 connectors: 1x “upstream” to the switch, 1x “downstream” to the PC.
Speed 10/100 Mbps, auto MDI/MDIX
Magnetic protection 1.0K Drivers for: XP/Vista/7/8.x/10(X86/X64) - Server 2003/2008/2012 (x64)
Standards: EUR: CE EN55022 Class B, EN55024 / US: FCC Part 15 Class B / TAIWAN: BSMI: CNS13438 / JAPAN: VCCI
Environment: 0 to 45°C (operation), 5 to 95% RH, -20 to 85°C (storage)
ABS and metal case, weight 283g, Dimensions 190x119.58x27
Power supply from 5 to 12V, supplied with cords to power the box on a USB plug and 5V mains power supply. RS2322 Ethernet Replicator RS-232 Ports + 1 LPT Port Characteristics: SUNIX DPL2000Q CHIPSET SERIAL COMMUNICATION 2 RS-232 ports, male DB9 connectors Protections: ±15KV ESD IEC6000-4-2 Air Discharge / ±8KV ESD IEC61000-4-2 Contact Discharge / ±4KV ESD IEC61000-4-2 Level2 Line-to-Line PARALLEL COMMUNICATION Printer support (will not support "Key lockers" and other devices on LPT port) 1 female DB25 port ETHERNET COMMUNICATION 2 RJ45 connectors: 1x “upstream” to the switch, 1x “downstream” to the PC. Magnetic protection 1.0K Drivers for: XP/Vista/7/8.x/10(X86/X64) - Server 2003/2008/2012 (x64) Standards: EUR: CE EN55022 Class B, EN55024 / US: FCC Part 15 Class B / TAIWAN: BSMI: CNS13438 / JAPAN: VCCI Power supply from 5 to 12V, supplied with cords to power the box on a USB plug and
