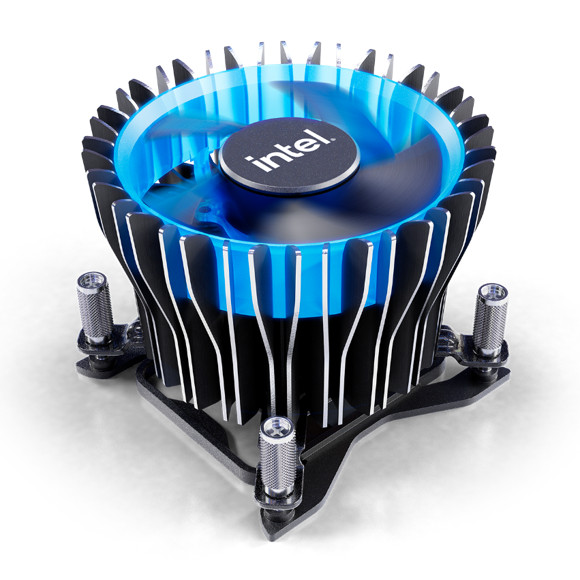

Intel Laminar RH1 Cooler for Intel 12th, 13th, 14th Processors | LGA 1700
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Intel Laminar RH1 Cooler for Intel 12th, 13th, 14th Processors | LGA 1700
Price: US $14.00
New, directly from its retail packaging.
CPU IS NOT INCLUDED. Only the CPU Heatsink.
---
Information from Intel's Website:

Intel® Laminar RH1 Cooler Heatsink Specifications

Heatsink fin materialAluminumHeatsink base/core materialCopper Heat ColumnHeatsink fastener (Attaches to supplied backplate) materialStainless Steel

Intel® Laminar RH1 Cooler Thermal Solution Specifications

Overall HeightUp to 69mm (top of fan to bottom of heatsink)Overall SizeUp to 103mm x 103mmMassUp to 450gSound Power Level2.6 BA (1600 RPM, 40C inlet, 65W); 4.5 BA (max RPM)Sound Pressure Level16 dBA (1600 RPM, 40C inlet, 65W)TDP SupportUp to 65W (12th Gen Intel® Core™ Desktop Processors)Fan TypePWM controlled variable speed fanLEDsARGB LED light ring and white LED Intel logoConnector Types4-pin and 5V ARGBOperating Voltage13.2V max, 12.0V rated, 10.8V minCurrent (peak)Up to 450mAMax RPM (+/- 5%)Up to 3000 RPMMin RPM (+/- 20%)1000 RPMOperating Temp0 to 70COperating Humidity85% relative humidity @ 55CFan ProtectionLocked-rotor/polarity protectedSense Frequency2 pulses/Rev, 12V pull-up with 10KohmPWM Frequency25KHz +/- 5KHzPWM Pull-up Voltage5.25V maxPWM Duty Cycle Range0–100%
