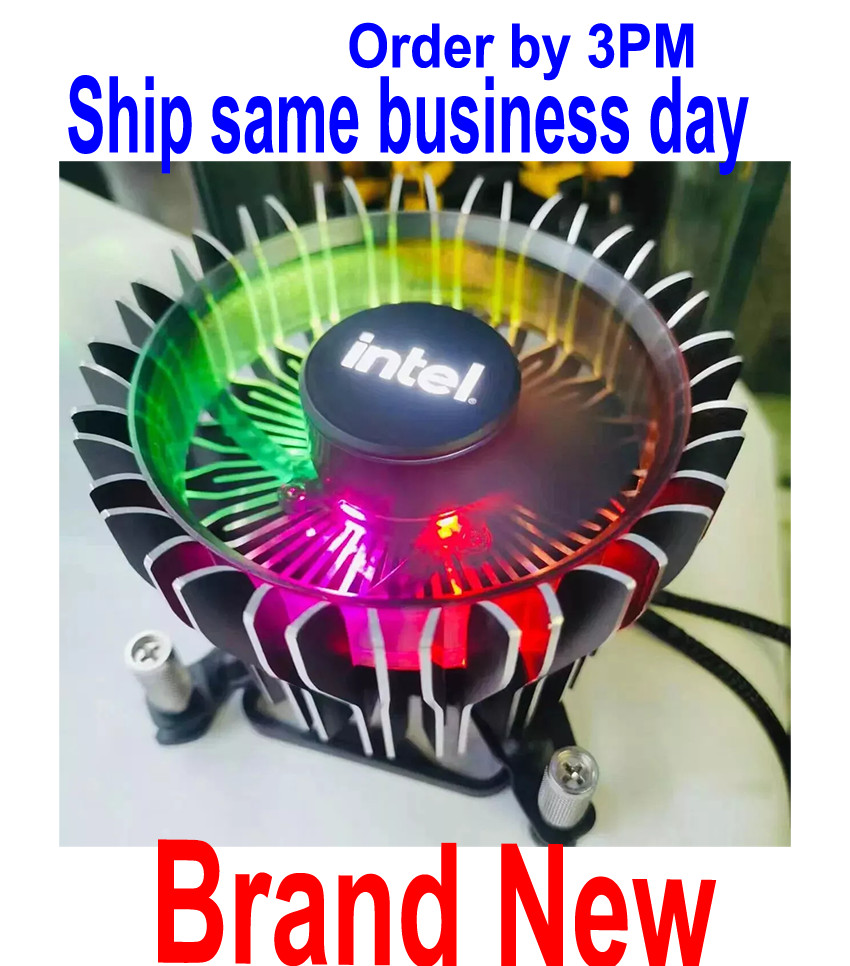

Intel Laminar RH1 Heatsink Cooler LED Cooling CPU Fan ARGB for LGA1700 / LGA1851
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Intel Laminar RH1 Heatsink Cooler LED Cooling CPU Fan ARGB for LGA1700 / LGA1851
Price: US $29.50
Laminar RH1 ARGB LGA1700 LGA1851 CPU Fan

This Intel Laminar RH1 Cooler comes in the box with i9-14900, i9-14900F, i9-13900, i9-13900F and i9-12900, i9-12900F processors. These are not sold separately either to end-users or Intel® Partner Alliance members. The cooler has three-year limited warranty.

Highlights of this cooler

  • Controllable ARGB Lighting
  • 2.6 BA Near-silent Performance
  • Larger / Copper Heat Column
  • Intel Validated Compatibility

Intel® Laminar RH1 Cooler Thermal Solution Specifications

Overall HeightUp to 69mm (top of fan to bottom of heatsink)Overall SizeUp to 103mm x 103mmMassUp to 450gSound Power Level2.6 BA (1600 RPM, 40C inlet, 65W); 4.5 BA (max RPM)Sound Pressure Level16 dBA (1600 RPM, 40C inlet, 65W)TDP SupportUp to 65W (12th Gen Intel® Core™ Desktop Processors)Fan TypePWM controlled variable speed fanLEDsARGB LED light ring and white LED Intel logoConnector Types4-pin and 5V ARGBOperating Voltage13.2V max, 12.0V rated, 10.8V minCurrent (peak)Up to 450mAMax RPM (+/- 5%)Up to 3000 RPMMin RPM (+/- 20%)1000 RPMOperating Temp0 to 70COperating Humidity85% relative humidity @ 55CFan ProtectionLocked-rotor/polarity protectedSense Frequency2 pulses/Rev, 12V pull-up with 10KohmPWM Frequency25KHz +/- 5KHzPWM Pull-up Voltage5.25V maxPWM Duty Cycle Range0–100%
