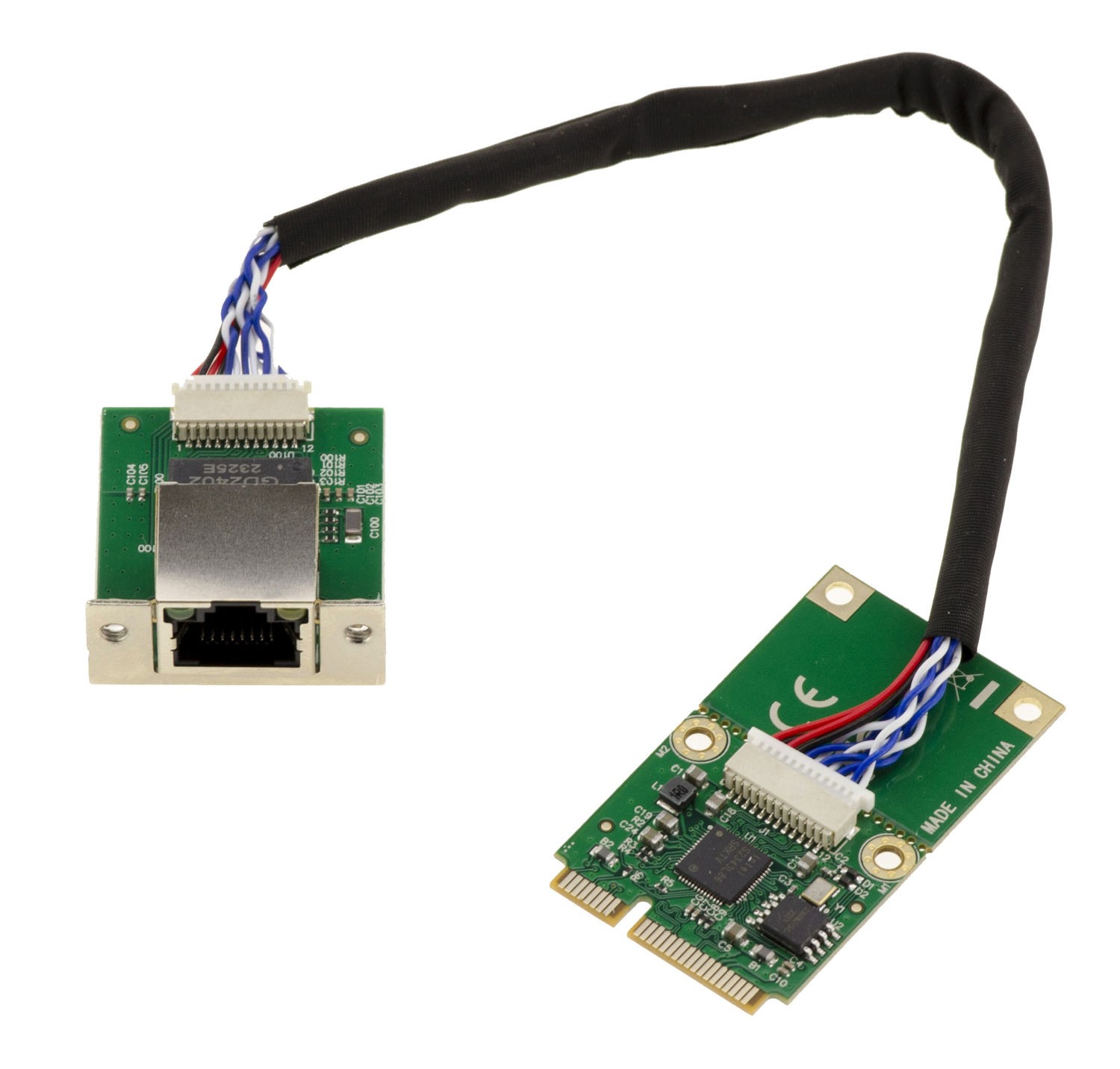

For MiniPCIe port of laptop PC (or mini PC). Compatible with all MAXI 2.5 Gigabit networks.
COMPATIBLE 10M 100M 1G ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC.
Features :
Intel I226 Chipset (SRKTV)
For MiniPCIe PCI Express 2.1 port, compatible with Mini Card Electromechanical specification revision 1.2.
Full size card with pre-cut to resize to half size.
IEEE802.3 standard MDI (copper) Ethernet interface up to 2.5 Gb/s.
MDI compliant IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3).
Flow control support compliant with IEEE802.3x and IEEE802.3z standards with software-controllable RX thresholds and TX pause frames.
Automatic crossing detection function (MDI/MDI-X).
IEEE 1588 protocol and 802.1AS implementation.
Support for time-sensitive networking (TSN) capabilities.
Support for IEEE802.3az-Energy Efficient Ethernet (EEE).
Full Wake-On-Lan support.
TCP/UDP, IPv4 checksum offloads (Rx/Tx).
Transmission Segmentation Offload (TSO) (IPv4, IPv6).
Support for packages up to 9.5 KB Jumbo Frames.
For MiniPCIe port of laptop PC (or mini PC). Compatible with all MAXI 2.5 Gigabit networks. Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC. For MiniPCIe PCI Express 2.1 port, compatible with Mini Card Electromechanical specification revision 1.2. IEEE802.3 standard MDI (copper) Ethernet interface up to 2.5 Gb/s. MDI compliant IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3). Flow control support compliant with IEEE802.3x and IEEE802.3z standards with software-controllable RX thresholds and TX pause frames. Support for time-sensitive networking (TSN) capabilities. Support for IEEE802.3az-Energy Efficient Ethernet (EE Recommended products Provided by Mini PCIE To PCI EXPRESS Converter - With Antenna View product KALEA-INFORMATIQUE MCIO 8i To PCIe Gen5 x8/x16 Extension Port PCI Express Pro View product PCI Controller Card To FireWire 400 IEEE1394A 3 Ports TI TSB43AB23 Chipset View product KALEA-INFORMATIQUE PCI Controller VIA 2x SATA 2x IDE RAID 0 1 0+1 VT6421A View product CFexpress Type B Memory Card Reader Recorder To USB 3.1 10G View product KALEA-INFORMATIQUE Oxford OXPCIe952 Dual RS232 Serial COM DB9 PCIe Card View product Pcie 1 Ports COM Serial Rs232 with DB9 Plugs Oxford Oxpcie952 Chipset View product KALEA-INFORMATIQUE PCIe 4.0 Switch Card 4x SFF-8654 8i For 2 Graphics Cards View product Related keywords pci intel i226 i226 ethernet card sfp+ rj45 pci network card mini pcie intel network card pci ethernet card pcie ethernet mini pc pcie pci express mini pcie adapter intel pcie network card mini pc with pcie slot mini pci wifi card gigabit ethernet card intel gigabit nic intel ethernet card ethernet card pci express intel 2.5 nic intel 226 pcie lan card pci lan card pci ethernet card intel pci gigabit ethernet card i226 v mini pci express lan intel gigabit pci intel i226 v Provided by
