Product Description
Connection the LCD Controller Board:
PIN #
SIGNAL NAME
Power for panel
2
VSEL
Power for panel
3
VSEL
Power for panel
4
GND
Ground
5
GND
Ground
6
GND
Ground
7
RXO0-
Negative LVDS differential data input
8
RXO0+
Positive LVDS differential data input
9
RXO1-
Negative LVDS differential data input
10
RXO1+
Positive LVDS differential data input
11
RXO2-
Negative LVDS differential data input
12
RXO2+
Positive LVDS differential data input
13
GND
Ground
14
GND
Ground
15
RXOC-
Negative LVDS differential clock input
16
RXOC+
Positive LVDS differential clock input
17
RXO3-
No Connection
18
RXO3+
No Connection
19
RXE0-
LVDS EVEN 0 - Signal
20
RXE0+
LVDS EVEN 0 + Signal
21
RXE1-
LVDS EVEN 1 - Signal
22
RXE1+
LVDS EVEN 1 + Signal
23
RXE2-
LVDS EVEN 2 - Signal
24
RXE2+
LVDS EVEN 2 + Signal
25
GND
Ground
26
GND
Ground
27
RXEC-
LVDS EVEN Clock - Signal
28
RXEC+
LVDS EVEN Clock + Signal
29
RXE3-
LVDS EVEN 3 - Signal
30
RXE3+
LVDS EVEN 3 + Signal
Connection the LCD Screen:
1
GND
Ground
2
VCC
Power Supply
3
VCC
Power Supply
4
VEDID
DDC Power
5
NC
No Connection
6
CLKEDID
DDC Clock
7
DATAEDID
DDC data
8
Negaive LVDS differential data input
9
Positive LVDS differential data input
10
GND
Ground
11
Negaive LVDS differential data input
12
Positive LVDS differential data input
13
GND
Ground
14
Negaive LVDS differential data input
15
Positive LVDS differential data input
16
GND
Ground
17
Negaive LVDS differential clock input
18
Positive LVDS differential clock input
19
GND
Ground
20
Negaive LVDS differential data input
21
Positive LVDS differential data input
22
GND
Ground
23
Negaive LVDS differential data input
24
Positive LVDS differential data input
25
GND
Ground
26
Negaive LVDS differential data input
27
Positive LVDS differential data input
28
GND
Ground
29
Negaive LVDS differential clock input
30
Positive LVDS differential clock input
LP141WP1
B150PN01
B154PW01
LP150E06
B154SW01
LP150E06 (A3)(K2)
B170PW01
LP150E07
B170PW02
LP171WU1
B170PW03
LP150U1
B170PW04
B170PW05
B170PW06
LP154WP1
B170UW01
LP154WU1 (A1)
B170UW02
LP171WX2
LTN141WD-L07 (B)
LP171W01
IASX12S
IAUX14
IAUX14P
LP171WP4
IAUX14S
QD17TL02
ITSX95C
ITSX95E
ITUX97H
Packing list :

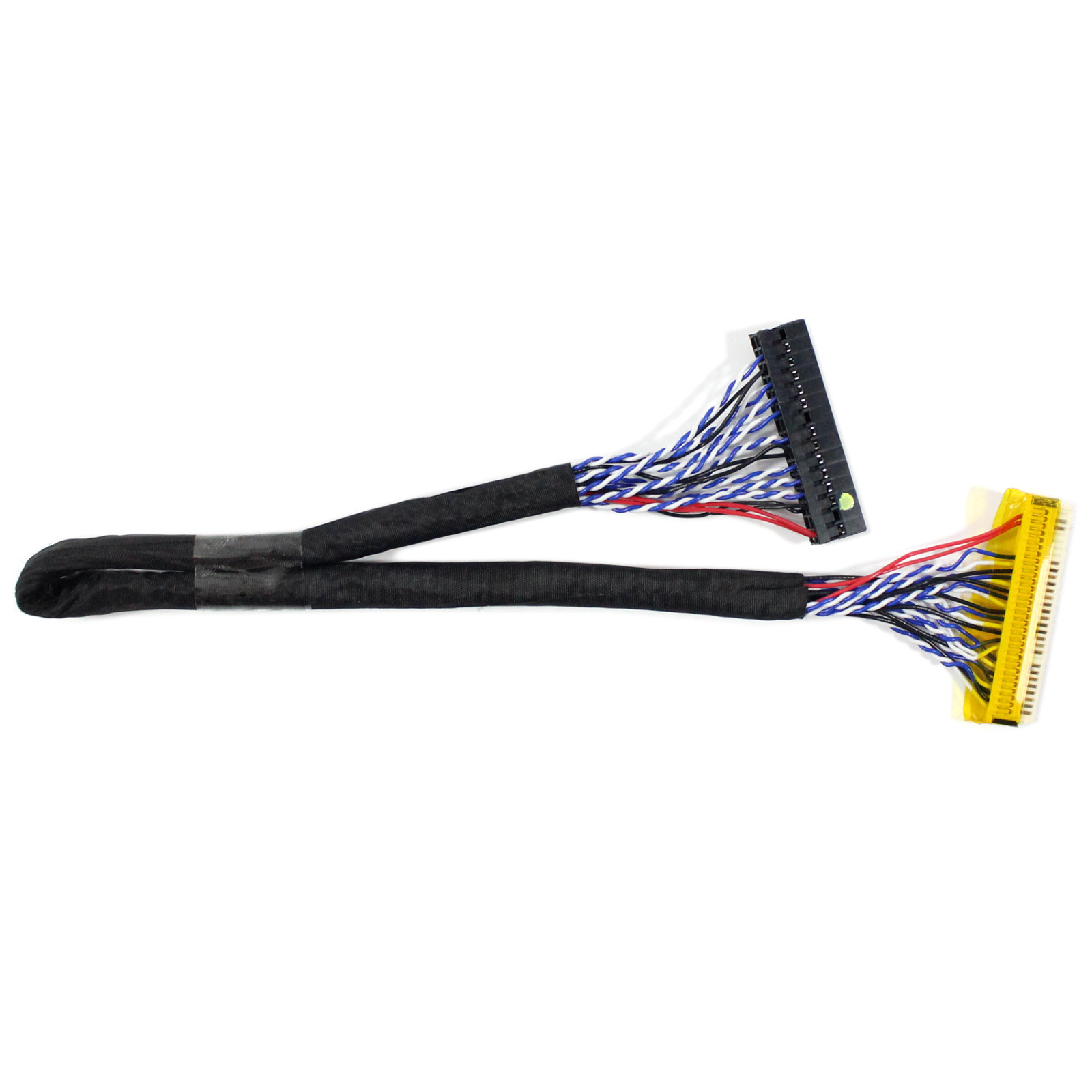

1×FIX-30P Double 2ch 6bit LVDS cable Length=250mm
