Product Description
Connection the LCD Controller Board:
PIN #
SIGNAL NAME
DESCRIPTION
1
VSEL
Power for panel
2
VSEL
Power for panel
3
VSEL
Power for panel
4
GND
Ground
5
GND
Ground
6
GND
Ground
7
RXO0-
Negative LVDS differential data input
8
RXO0+
Positive LVDS differential data input
9
RXO1-
Negative LVDS differential data input
10
RXO1+
Positive LVDS differential data input
11
RXO2-
Negative LVDS differential data input
12
RXO2+
Positive LVDS differential data input
13
GND
Ground
14
GND
Ground
15
RXOC-
Negative LVDS differential clock input
16
RXOC+
Positive LVDS differential clock input
17
RXO3-
No Connection
18
RXO3+
No Connection
19
RXE0-
LVDS EVEN 0 - Signal
20
RXE0+
LVDS EVEN 0 + Signal
21
RXE1-
LVDS EVEN 1 - Signal
22
RXE1+
LVDS EVEN 1 + Signal
23
RXE2-
LVDS EVEN 2 - Signal
24
RXE2+
LVDS EVEN 2 + Signal
25
GND
Ground
26
GND
Ground
27
RXEC-
LVDS EVEN Clock - Signal
28
RXEC+
LVDS EVEN Clock + Signal
29
RXE3-
LVDS EVEN 3 - Signal
30
RXE3+
LVDS EVEN 3 + Signal
Connection the LCD Screen:
1
GND
Ground
2
VCC
Power Supply
3
VCC
Power Supply
4
VEDID
DDC Power
5
NC
No Connection
6
CLKEDID
DDC Clock
7
DATAEDID
DDC data
8
Odd_RxIN0-
Negaive LVDS differential data input
9
Odd_RxIN0+
Positive LVDS differential data input
10
GND
Ground
11
Odd_RxIN1-
Negaive LVDS differential data input
12
Odd_RxIN1+
Positive LVDS differential data input
13
GND
Ground
14
Odd_RxIN2-
Negaive LVDS differential data input
15
Odd_RxIN2+
Positive LVDS differential data input
16
GND
Ground
17
Negaive LVDS differential clock input
18
Positive LVDS differential clock input
19
GND
Ground
20
Even_RxIN0-
Negaive LVDS differential data input
21
Even_RxIN0+
Positive LVDS differential data input
22
GND
Ground
23
Even_RxIN0-
Negaive LVDS differential data input
24
Even_RxIN0+
Positive LVDS differential data input
25
GND
Ground
26
Even_RxIN0-
Negaive LVDS differential data input
27
Even_RxIN0+
Positive LVDS differential data input
28
GND
Ground
29
Negaive LVDS differential clock input
30
Positive LVDS differential clock input
Compatible Work With:
B150PG03_V0
LP141WP1
LQ170M1LA2A
B150PN01
LQ170M1LA3C
B154PW01
LP150E06
LQ170M1LA4B
B154SW01
LP150E06 (A3)(K2)
LQ170M1LA4G
B170PW01
LP150E07
LTD121KM2M
B170PW02
LP171WU1
LTD141EM6K
B170PW03
LP150U1
LTD154EZ0D
B170PW04
LP150U1-A2
B170PW05
LP150X08-A2
B170PW06
LP154WP1
B170UW01
LP154WU1 (A1)
B170UW02
LP171WX2
LTN141WD-L07 (B)
HT14P12-100
LQ170M1LA04
N150P3-L01
LP171W01
N150U3-L01
IASX12S
LQ150U1LA03
N154Z1-L02
IAUX14
LQ150U1LH22
N170C2-L01
IAUX14P
LP171WP4
LQ150U1LW03
N170C2-L02
IAUX14S
LQ150U1LW22
QD17TL02
ITSX95C
LQ154M1LW02
ITSX95E
LQ154M1LW12
ITUX97H
Packing list :

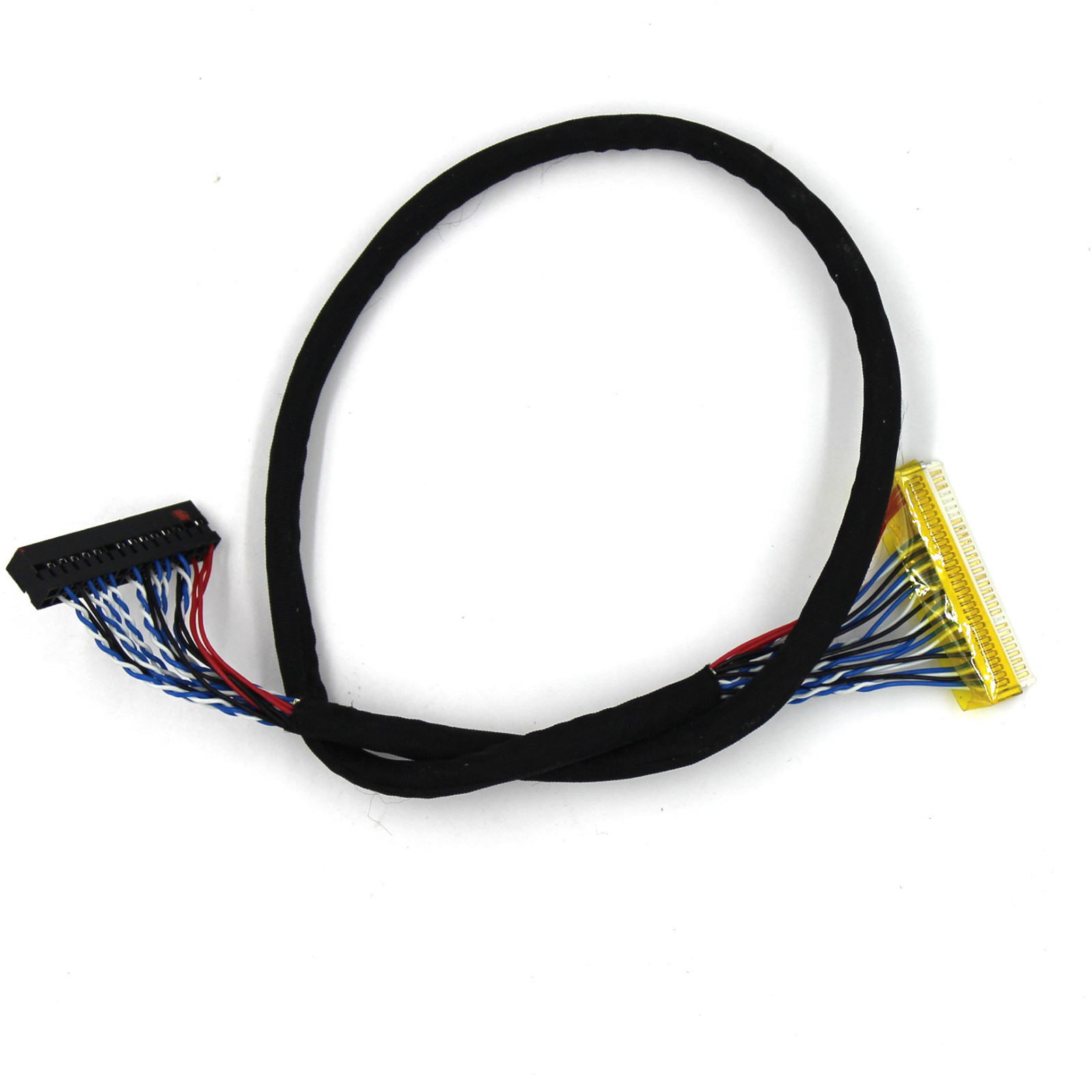

1×FIX-30P Double 2ch 6bit LVDS cable Length=400mm
