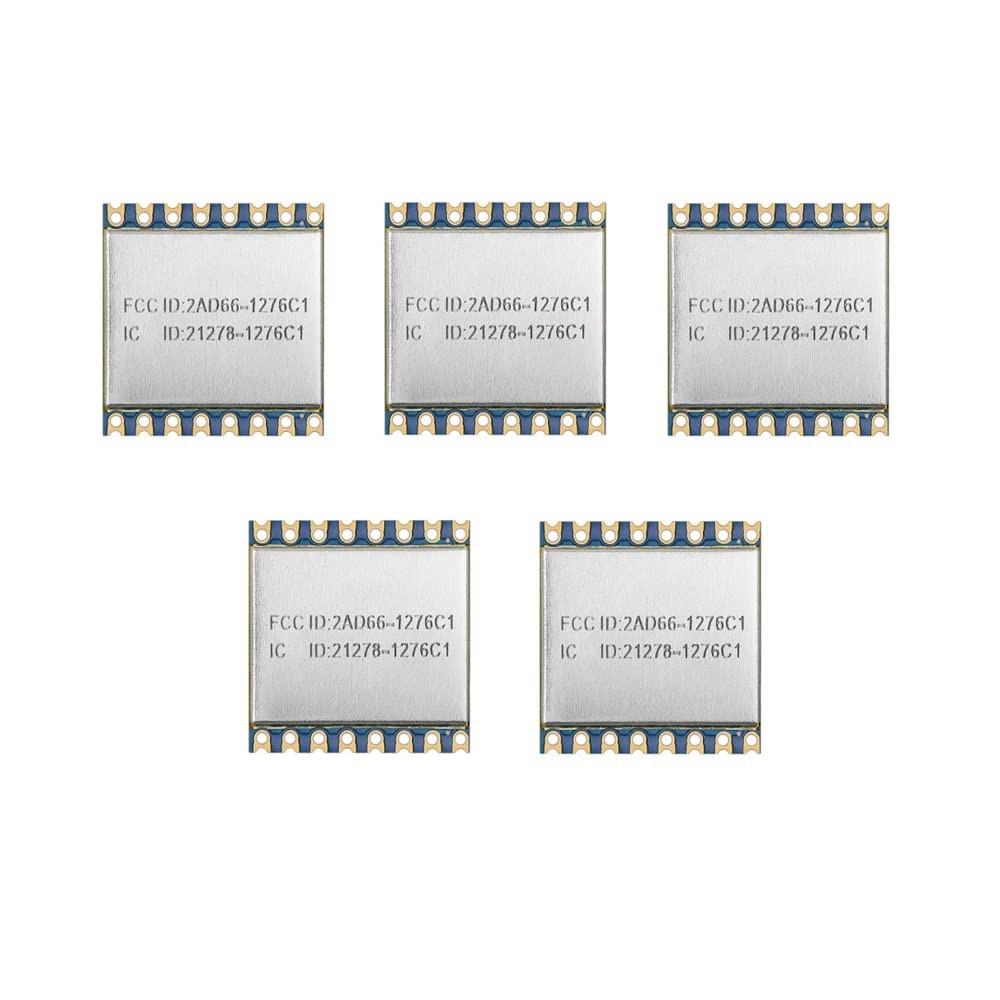

LoRa1276-C1 integrates Semtech RF transceiver chip SX1276, which adopts LoRa Spread Spectrum modulation frequency hopping technique.
Its communication distance and receiving sensitivity are much better than the current FSK and GFSK modulation.
Multi-signal won't affect each other even in crowd frequency environment. Exactly with HopeRF RFM95W, Size: 16*16*2.1mm
Features of SX1276 LoRa Module LoRa1276-C1
Frequency Range: 868MHz/ 915 MHz
Sensitivity: -139dBm @Lora
Maximum output power:20 dBm
Low RX current：10.8 mA
Sleep current< 1.5uA
Data transfer rate:@FSK,1.2-300 Kbps
@Lora, 0.018-37.5 Kbps
Excellent blocking immunity
Lora、FSK、GFSK Modulation mode
Built-in ESD Protection
127 dB Dynamic Range RSSI
Packet engine up to 256 bytes with FiFo and CRC
Built-in temperature sensor
Operating Temperature Range：-40 ~ +85 °CLoRa1276-C1 integrates Semtech RF transceiver chip SX1276, which adopts LoRa Spread Spectrum modulation frequency hopping technique.
Its communication distance and receiving sensitivity are much better than the current FSK and GFSK modulation.
Multi-signal won't affect each other even in crowd frequency environment.
Exactly with HopeRF RFM95W, Size: 16*16*2.1mm
