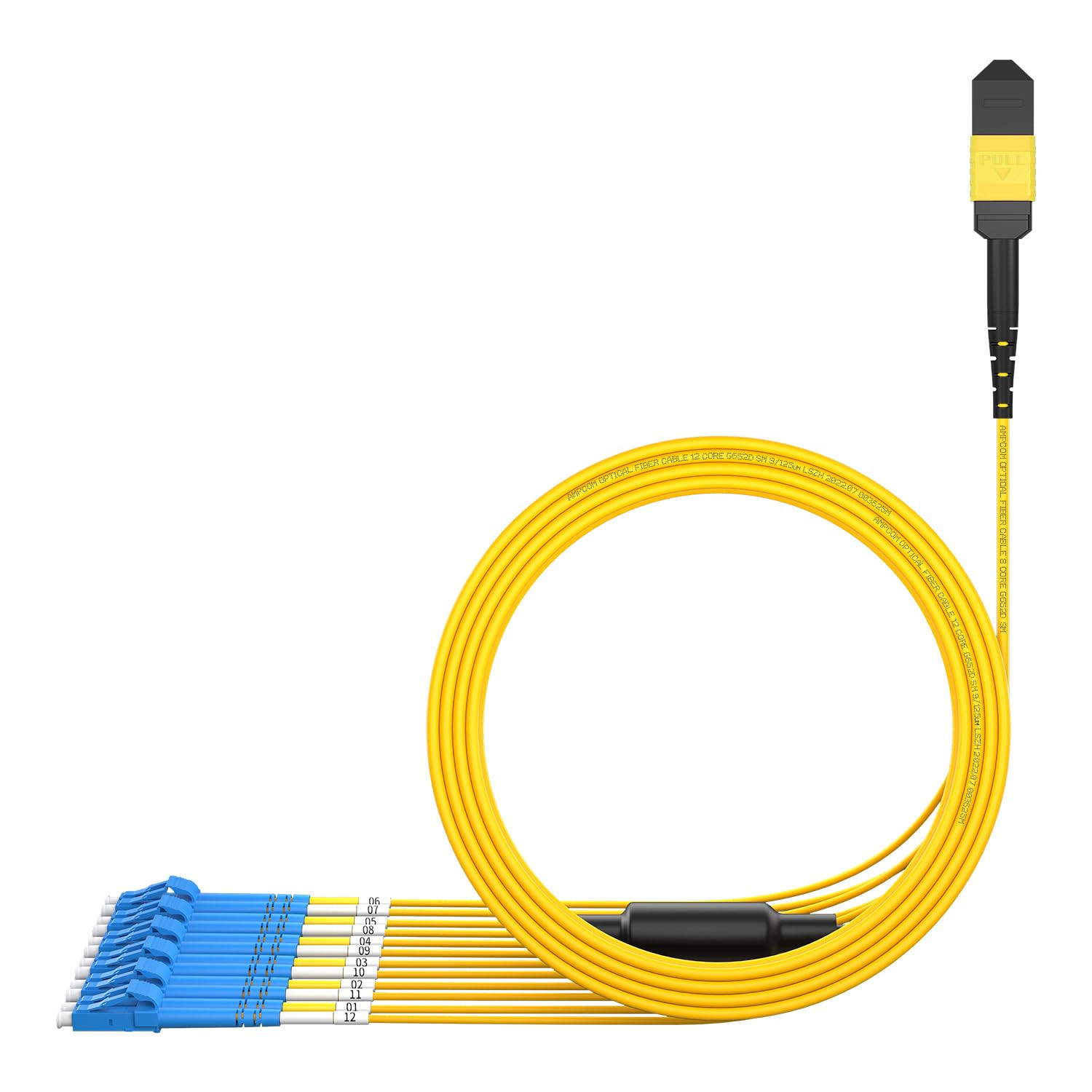

MPO to LC Breakout Cable 9/125Μm Singlemode OS1/OS2(8 Fiber, MPO to LC, Type B, For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

MPO to LC Breakout Cable 9/125Μm Singlemode OS1/OS2(8 Fiber, MPO to LC, Type B,

Price: US $52.06

MPO to LC Breakout Cable 9/125Μm Singlemode OS1/OS2(8 Fiber, MPO to LC, Type B, Lszh/Riser, UPC, Yellow) 2M (6Ft)Description Connector Type Component Cable Type Fiber Optic Compatible Devices Router Other Special Features of the Product light Ethernet Cable Category Cat 8 Connector Gender Male-to-Male Data Transfer Rate 1 gigabits_per_second Number of Pins 8 Recommended Uses For Product Cabling system project Specification Met ISO Indoor Outdoor Usage Indoor Color OS1/ OS2 Item Shape Round Model Name AMOSLC8002 Model AMOSLC8002 Item Length 2 meters Part Number AMOSLC8002 Number of Items 1 Special Feature light

Product description AMPCOM MPO Trunk Cable

About Our Products

AMPCOM's MPO Cable is a factory pre-terminated 9/125( Singlemode) or 50/125( Multimode) MPO trunk cable, offering the user the advantage of consistent quality, much faster installation, and simpler cable management. The MPO fiber optic trunk cable is manufactured with multiple, 8, 12, 24-strand Senko MPO female connectors and 8,12,24 cores laser-optimized fiber optic cables (Corning ClearCurve Fiber). This MPO trunk cable conforms to Type B (Cross-Connect) polarity, and the MTP connector is available upon request. This MPO fiber trunk cable is suitable for use in 1G SFP SR4, 10G SFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver optics connection. AMPCOM's MTP / MPO series of trunk cable solutions provide an efficient way to install a large amount of cables quickly, yet provide high flexibility on unplug and re-use. It is especially suitable for the areas that require high density, rapid deployment and high performance.

High Density Cabling for Various Environments Minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs. Multiple Application

Fits for MPO Coupler

Meet the demand for high-density fiber optic networks in IDC data centers

Matching MPO-24 Cassette

More flexible, more reliable, and more scalable data center networking solutions

Must Evolve to Enable 5G in Data Center Optical network equipment through the fiber optic patch cable to achieve high-speed data transmission and storage

5G Data Center Build

The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic patch cable manufacturer, AMPCOM supplies complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with the traditional fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space-saving while supporting very high data rates, such as 1-Gigabit, 10-Gigabit, 40-Gigabit Ethernet and 100-Gigabit Ethernet.

Key Facts AMPCOM MPO

Fully supports all optical fiber applications within the Ethernet family Modular solution with reusable modules and cables High-density cabling saves pathway space and gives improved airflow compared to traditional cable bundles Cables are pre-terminated in the factory to the correct length with high density connectivity

AMPCOM SMF 9/125 Singlemode MPO Fiber Optic Trunk Cable - OS1/ OS2 Item: MPO/MTP Trunk/ Breakout cable SMF/ Singlemode Type: 9/125μm(SMF) Wavelength: 1310/1550nm Connector: Low Insertion Loss Connector Glass Fiber: Corning ClearCurve Fiber Aramid Yarn: DuPont Kevlar Cable OD: 3MM Jacket: LSZH Insertion Loss: ≤0.3dB (MMF) (SMF) Return Loss: ≥55dB (SMF) Bend Radius (Fiber core): 10mm Min. Tensile Strength: 80N Operating Temperature: -10 to +70°C (14 to 158℉) Storage Temperature: -40 to +85°C (-40 to 185℉) Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE, EIA/TIA, Telecocordia GR-326-CORE Standards, TIA 605-4 (FOCIS 5) Color: Yellow AMPCOM MMF 50/125 Multimode MPO Fiber Optic Trunk Cable - OM3-300, OM4, OM5 Item: MPO/MTP Trunk/ Breakout cable MMF/ Multimode Type: 50/125μm (MMF) Wavelength: 850/1300nm Connector: Low Insertion Loss Connector Glass Fiber: Corning ClearCurve Fiber Aramid Yarn: DuPont Kevlar Cable OD: 3MM Jacket: LSZH Insertion Loss: ≤0.3dB (MMF) Return Loss: ≥30dB (MMF) Bend Radius (Fiber core): 10mm Min. Tensile Strength: 80N Operating Temperature: -10 to +70°C (14 to 158℉) Storage Temperature: -40 to +85°C (-40 to 185℉) Compliance: RoHS, CE (EN 50575 CPR), ISO9001, WEEE, EIA/TIA, Telecocordia GR-326-CORE Standards, TIA 605-4 (FOCIS 5) Color: OM3: Aqua, OM4: Magenta, OM5: Lime Green

High quality grade A fiber cable with 10mm Min. Bend Radius
LSZH OFNR rated outer jacket, fire resistance and low smoke to minimize damage
IEC-61754-7 and TIA-604-5 (FOCIS-5)
Ideal for 1G/10G/40G/100G Indoor Connections
High density cabling for various environments
