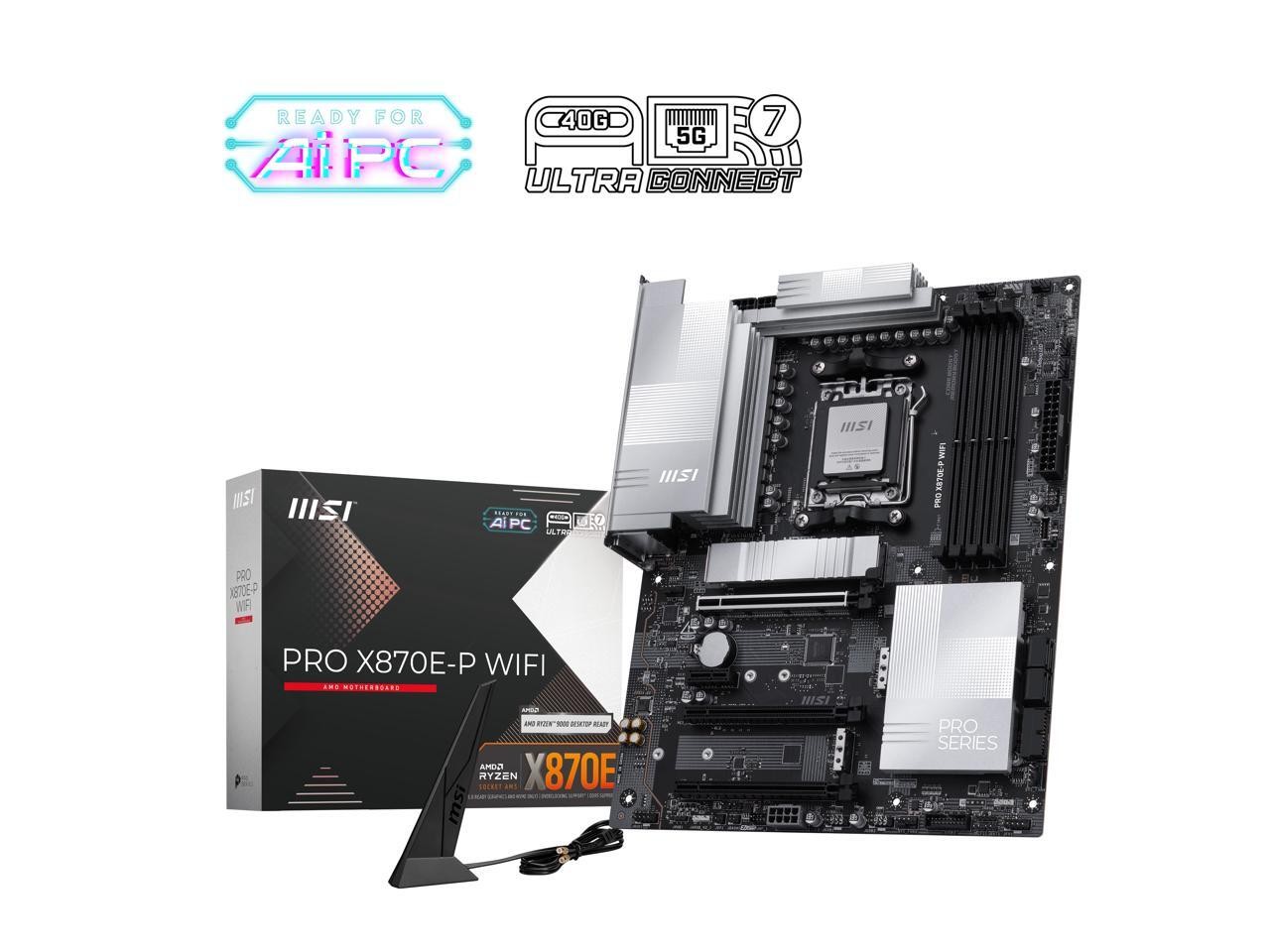

MSI PRO X870E-P WIFI Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX (prox870e-pwifi) MSI PRO X870E-P WIFI Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX (prox870e-pwifi)Package Contents: PRO X870E-P WIFI Gaming Desktop Motherboard European Union Regulatory Notice Quick Installation Guide EZ M.2 Clip II Remover 3 x EZ M.2 Clip II EZ Wi-fi Antenna 2 x SATA Cables 1 to 2 EZ Conn-cable (V1)

Brand Compatibility: AMD

Product Description

This item is brand-new, factory sealed.

PRO X870E-P WIFI
PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
READY FOR AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.Chipset
AMD X870ECPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
The DIMM slots on this motherboard have double-sided latches.
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit Graphics
1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)Audio
Realtek ALC897
7.1-Channel High Definition AudioStorage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
4x SATA 6G
M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
Please refer to the manual for M.2 SSD heatsink restrictions.RAID
Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
RAID 5 configuration is only supported by Ryzen 9000 series processors.USB
4x USB 2.0 (Rear)
6x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)LAN
Realtek 8126VB 5G LANInternal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C portsWIRELESS LAN AND BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
6GHz band support may depend on every countrys regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendors website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.LED FEATURE
4x EZ Debug LED
1x EZ Memory Detection LEDBACK PANEL PORTS
Clear CMOS Button
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI
USB 40Gbps Type-C
USB 10Gbps Type-A
USB 20Gbps Type-C
USB 5Gbps Type-AOPERATING SYSTEM
Support for Windows 11 64-bitPCB Info
ATX
243.84mmx304.8mmItem Dimension (L"xW"xH")
14 x 11 x 3

Weight
5.5 lbs

Warranty Information
3 years SpecificationPhysical CharacteristicsForm FactorATXProduct Color

• PCI Express 5.0
• PCI Express 4.0
• PCI Express 3.0

Number of PCI Express x16 Slots3Total Number of PCI Express Slots4MemoryMemory TechnologyDDR5 SDRAMNumber of Memory Slots4Memory Speed Supported

• 8200 MHz
• 6400 MHz
• 6000 MHz
• 5600 MHz

Memory Form Factor

• Ryzen 7
• Ryzen 9

Total Processor Supported1Processor SocketSocket AM5Chipset ModelX870ETechnical InformationAI-poweredYesOnboard InterfacesTotal Number of Onboard USB Ports11Number of M.2 Interfaces3Number of Onboard USB 2.0 of USB 2.0 Ports4Total Number of USB Ports10Number of Network (RJ-45) Ports1I/O ControllerRAID SupportedYesController TypeSerial ATA/600RAID Levels
