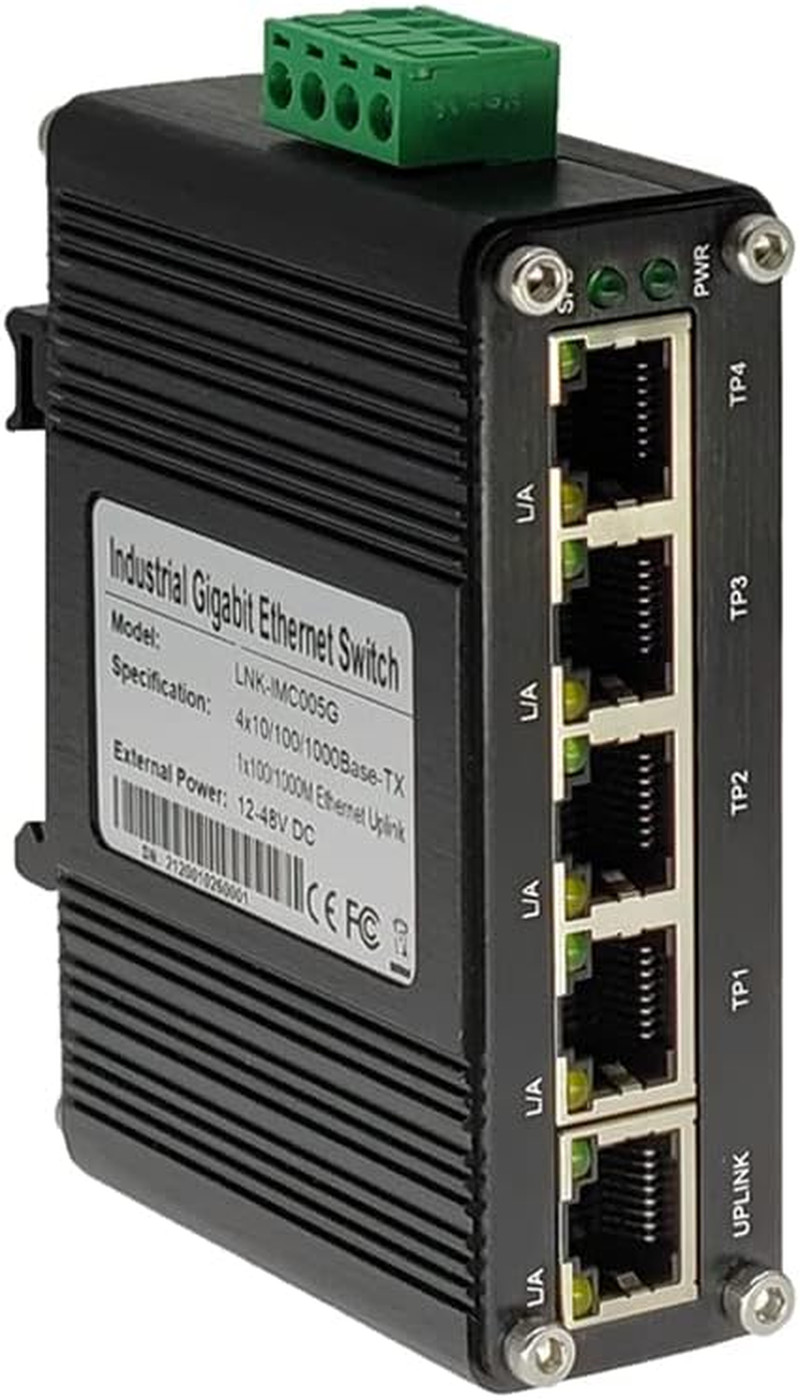

Mini 5-Port Gigabit Ethernet Switch - Rugged, Din Rail & Wall MountableDescription Item model number Cent-S-005 Data Transfer Rate 1000 Megabits Per Second Maximum Power 6 Watts Platform Not Machine Specific Color black Upper Temperature Rating 167 Degrees Fahrenheit Product Dimensions 3.74"L x 2.76"W x 1.15"H Compatible Devices Desktop Item Weight 11.7 ounces Number of Ports 5 Case Material Metal Switch Type Metal Interface Type RJ45 Voltage 12 Volts, 48 Volts Current Rating 1 Amps Model Cent-S-005 Included Components 5-Port Mini Industrial Ethernet Switch, Wall Mounting Kit, Gigabit Ethernet Switch User Manual

• 10/100/1000Mbps Ethernet – Experience lightning-fast data transfer with our Mini 5-Port Gigabit Ethernet Switch, featuring 5 RJ45 ports that support both half and full duplex modes. Perfect for high-speed networking needs.
• Small Size – Designed for versatility, this compact switch measures just 3.74x2.76x1.18 inches, allowing for easy installation in tight spaces without compromising performance.
• ELECTRO MAGNETIC COMPLIANT & Surge Protection – Built to last, this industrial-grade switch complies with CE EN 55022 Class A standards and includes built-in surge protection, ensuring reliable operation in demanding environments.
• Industrial Grade Quality – Engineered with robust industrial-grade components and a durable aluminum housing, this switch operates efficiently in extreme temperatures ranging from -40°C to 75°C (-40°F to 167°F), making it ideal for outdoor and harsh environments.
• Din-Rail & Wall Mount – Versatile installation options include a 35mm Din-rail clip and wall mount accessories, providing flexibility to fit your specific setup needs.

Product Description Features:

• 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function for seamless connectivity.

• Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex for optimal performance.

• Supports 802.3x Flow control to ensure smooth data transmission.

• Industry standard design with dustproof and IP40 rating, encased in a rugged high-strength metal case for durability.

• Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control, ensuring compatibility with various network devices.

Regarding the choice of power supply:

The wattage of the 5 ports switch during operation is relatively small, with a recommended power supply of 12V/1A and above for stability. Suitable power supplies can range from 12V/0.5A to 48V, ensuring flexibility in your setup. We also offer compatible power supplies for your convenience.

Compact Size:

Mini switch is 20% smaller than other switches, requiring minimal space for installation.

Casing Material:

Constructed with industrial-grade components and aluminum housing, featuring an IP40 waterproof rating for added protection.

Voltage Range:

Designed to operate within a 12~48V DC power input range, making it adaptable to various power supply conditions.

Installation Method:

Easy to install with both Din-Rail and Wall Mount options, allowing for straightforward integration into your existing setup.

Applications: This Mini Industrial 5-Port Gigabit Ethernet Switch is perfect for applications in video surveillance and network solutions, ensuring seamless connectivity in various Mini Industrial Ethernet Switch x1

Wall Mounting Kit x1

Gigabit Ethernet Switch User Manual
