Please select the product you need based on the parameter table in the picture

Note: Power Input: No PoE and PoE 30W model is 12~48V, PoE 90W model is 48~57V

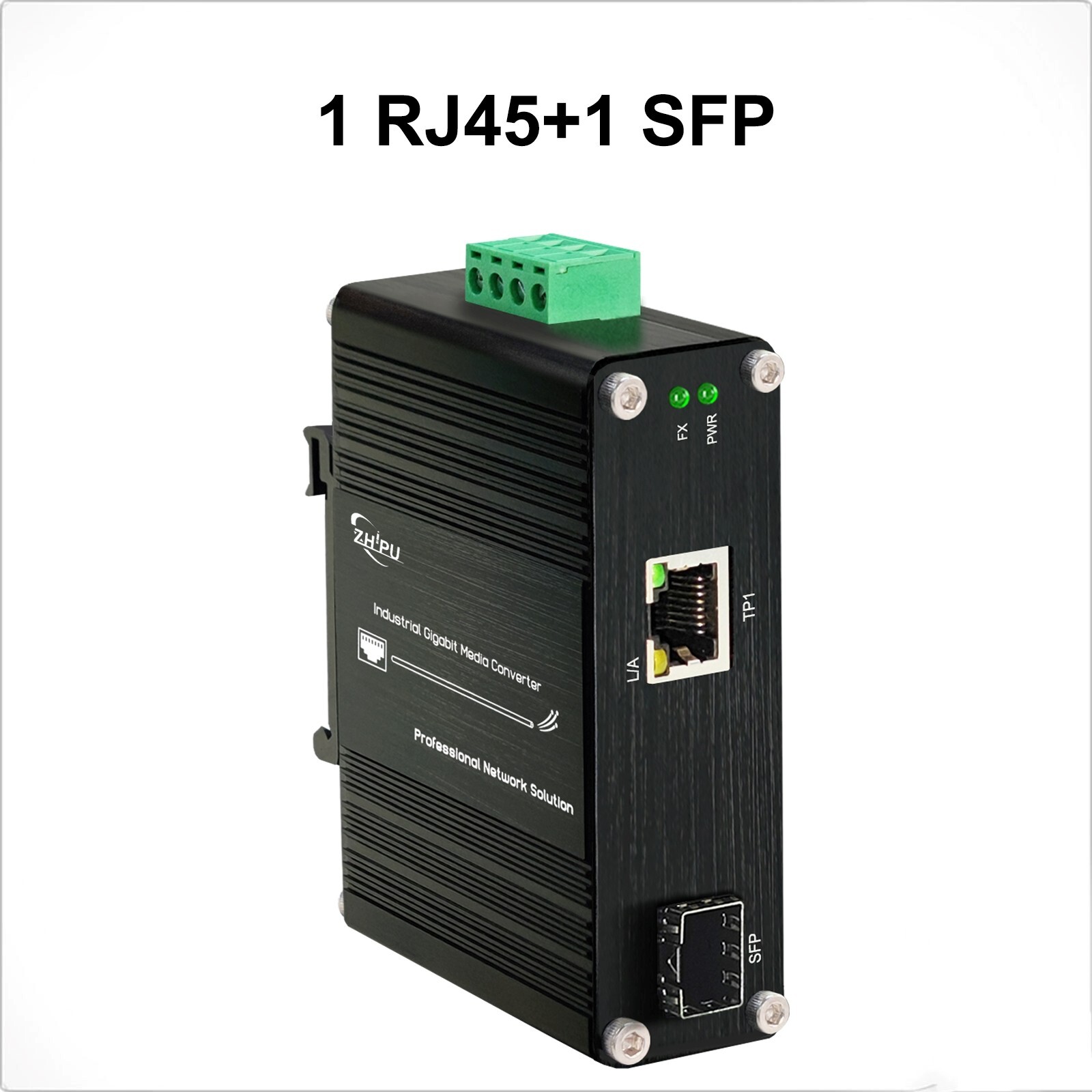

ZP-IMC3012-SFP (1RJ45 1SFP)

►1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
►1 SFP Port,100Base-FX or 1000Base-X dual mode (auto detection)
►Supports Full/Half-duplex, Auto-negotiation
►IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
►Extensive LED indicators for network diagnostics
►12~48VDC Terminal Block Power Input
►Supports DIN-Rail & Wall-mount installation
►Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

ZP-IMC3012P-SFP (1RJ45 1SFP 30W)

►1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
►1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
►Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
►IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
►Supports Full/Half-duplex, Auto-negotiation
►12~48VDC Terminal Block Power Input
►Supports DIN-Rail & Wall-mount installation
►Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

ZP-IMC3012P90-SFP (1RJ45 1SFP 90W)

►1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
►1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
►Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
►IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
►Supports Full/Half-duplex, Auto-negotiation
►48~57VDC Terminal Block Power Input
►Supports DIN-Rail & Wall-mount installation
►Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

ZP-IMC10G-SFP+ (10G Converter)

►100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
►IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
►Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
►IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
►Extensive LED indicators for network diagnostics
►12~48VDC Terminal Block Power Input
►Supports DIN-Rail & Wall-mount installation
►Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

ZP-IMC10GP90-SFP+ (10G Converter 90W)

►【RJ45 to 10G SFP+】Fiber media converter supports 10G fiber data rate switching and 10G/5G/2.5G/1G/100Base-T RJ45 to 10GBASE-X SFP+ slot.
►【Redundant Power Input】The industrial 10G SFP+ fiber converter supports 2-group industrial grade power interface input, one set of power supplies fails, and the other set can still work.
►【IEEE802.3bt 90W】Mini 10G fiber optic transceiver is equipped with 90w PoE++ RJ45 port, Compliant with IEEE802.3af/at/bt protocol. Power PIN Assignment 1,2,4,5(+);3,6,7,8(-).
►【Industrial Grade Quality】The DIN-Rail 10G PoE media converter with industrial grade aluminum alloy casing can work in a wide temperature range from -40°C to 80°C and lightning protection which make it can adapt to various harsh environments.
►【Din-Rail & Wall Mount】The cooper to SFP+ Fiber media converter comes with 35mm Din-rail Clip and Wall mount accessories.

ZP-IMC2402-OEO (10G Converter OEO)

►Transparent Transport and very low delay
►3R function (Regeneration, Reshaping, Re-timing)
►Support hot plugging, full state led display, easy installation
►Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
►Support Loop-back and Jumbo Frame
►DIP Switch supports 1.25G/10G fiber data rate switching
►Can be as 1G Ethernet Media Converter if using Ethernet
►IP40 Aluminum Case
►Supports DIN-Rail/Wall-Mount installation
►-40°C to 80°C (-40°F to 176°F) operating temperature
