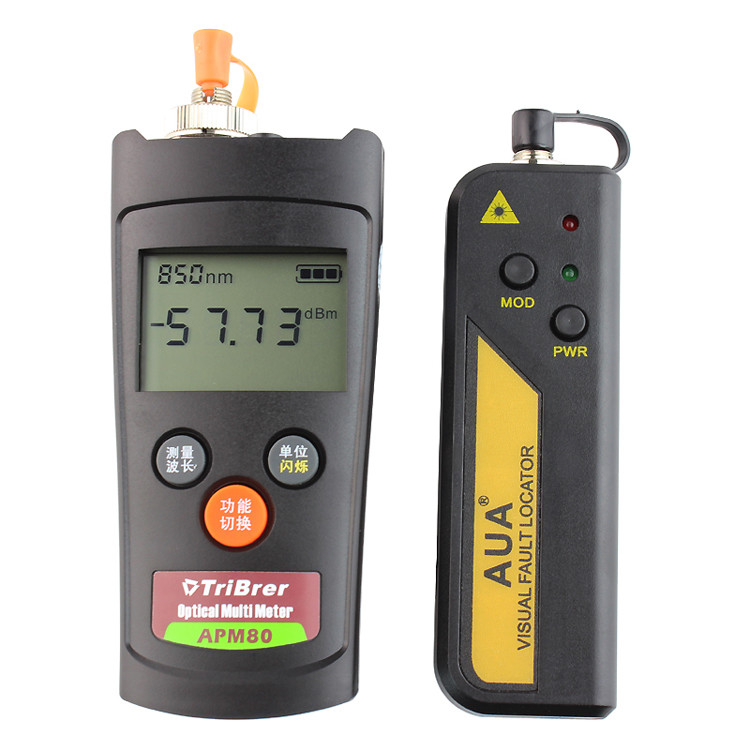

Store Categories Store Categories Mini Optic Power Meter Tester and 20mw Visual Fault Locator 10-20km Fiber Pen
Product Description
Optic Power Meter
Measuring range: -70~+6dBm
Calibration of wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
The display precision: +6~-60dBm (0.01dB) /-60~-70dBm (0.1dB)
Accuracy: + 0.02dB
Optical fiber connector: FC/PC 2.5mm
20mw Fiber Optic Visual Fault Locator
1 Features:
MQW LD optical source
Operating mode: CW and GLINT
FC, SC, ST,LC General interface
Long inspection distance
Steady power output
2 Function:
Locate the fiber failure, such as fracture and bend
Failure inspection in OTDR blind zone
Fiber recognition from head face to end face
Mechanical transition point optimization
3 Application:
Telecom, CATV project
PDS construction and maintenance
Optical component manufacture and research
Other fiber project
4Specifications:
Wavelength: 650nm
Output Power: 20mw
Connecter: general 2.5mm connecter( The available interface SC/FC/ST)
FC-LC fiber adapter The available interface LC
Frequency: 1Hz
Power: AA 1.5V
Working Temperature: -10 to +45
Range:15-20Km The product does not contain battery
tube.
