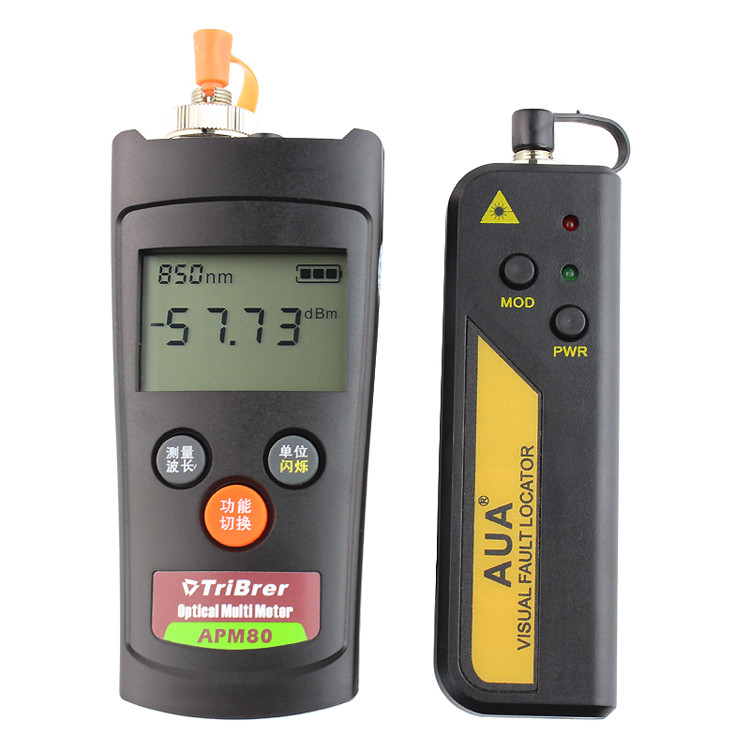

Mini Optic Power Meter Tester and 30mw Visual Fault Locator 10-30km Fiber Pen

Product Description

Optic Power Meter
Measuring range: -70~+6dBm
Calibration of wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
The display precision: +6~-60dBm (0.01dB) /-60~-70dBm (0.1dB)
Accuracy: + 0.02dB
Optical fiber connector: FC/PC 2.5mm
30mw Fiber Optic Visual Fault Locator
1 Features:
MQW LD optical source
Operating mode: CW and GLINT
FC, SC, ST,LC General interface
Long inspection distance
Steady power output


2 Function:
Locate the fiber failure, such as fracture and bend
Failure inspection in OTDR blind zone
Fiber recognition from head face to end face
Mechanical transition point optimization

3 Application:
Telecom, CATV project
PDS construction and maintenance
Optical component manufacture and research
Other fiber project

4Specifications:
Wavelength: 650nm
Output Power: 30mw
Connecter: general 2.5mm connecter( The available interface SC/FC/ST)
FC-LC fiber adapter The available interface LC
Frequency: 1Hz
Power: AA 1.5V
Working Temperature: -10 to +45
Range:20-30Km The product does not contain battery
tube.
