TESTING & COSMETIC NOTES:
This is a NEW item in EXCELLENT cosmetic condition that IS IN ITS ORIGINAL PACKAGING and is GUARANTEED WORKING
The Switches are brand new in sealed OEM packaging.

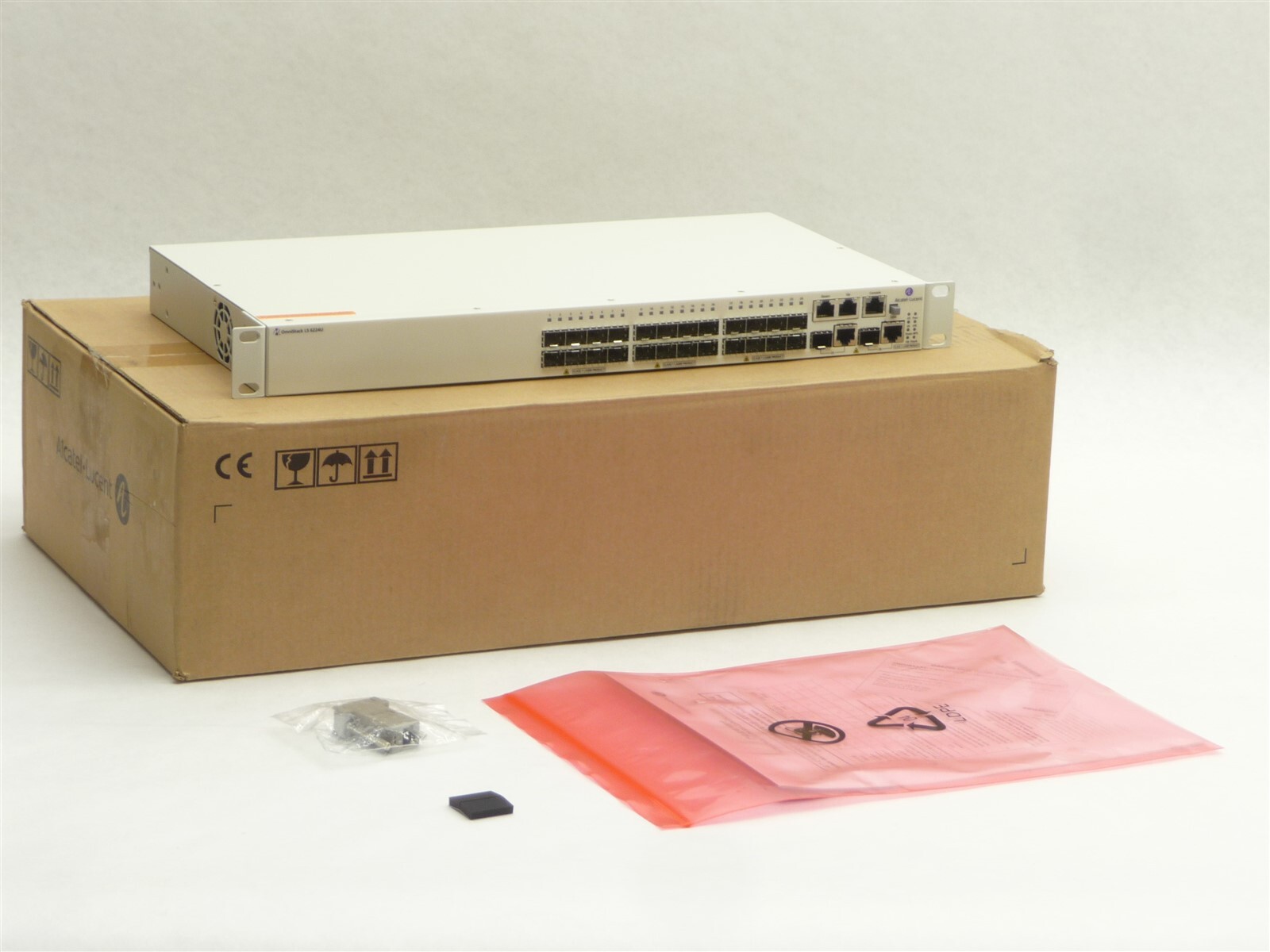

COMPONENTS INCLUDED IN THIS sale:• (1) - NEW ALCATEL-LUCENT OMNISTACK OS-LS-6224U 902667-90 24 SFP PORT 2 GIGABIT SFP PORT 2 ETHERNET PORT MANAGED SWITCH
• (2) - RACK EARS
• (1) - DOCUMENTATION PACKAGE
• (1) - MANUFACTURER ORIGINAL BOX AND PACKAGING
• (1) - POWER CORD
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:The following information is supplied by the Manufacturer and describes this product in general:
General
Ports
24 x SFP + 2 x combo Gigabit SFP + 2 x 10/100/1000
Max Units In A Stack
6
Authentication Method
RADIUS, Secure Shell (SSH), TACACS+
MAC Address Table Size
16K entries
Max Units In A Stack
6
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Status Indicators
Link activity, port transmission speed, power, temperature
Encryption Algorithm
SHA, MD5, SSL
Manufacturer
Nokia
Power Device
Nominal Voltage
AC 120/230 V
Frequency Required
50/60 Hz
Power Consumption Operational
54 Watt
Type
internal power supply
Networking
MAC Address Table Size
16K entries
Subcategory
network hubs and switches
Form Factor
desktop
Type
switch
Stackable
stackable
Connectivity Technology
wired
Max Units In A Stack
6
Features
ARP support, Access Control List (ACL) support, Weighted Round Robin (WRR) queuing, auto-negotiation, auto-uplink (auto MDI/MDI-X), flow control, layer 2 switching, port mirroring, store and forward, trunking, BOOTP support, Broadcast Storm Control, DHCP support, IGMP snooping, MAC address filtering, Quality of Service (QoS), Syslog support, VLAN support
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u
Manageable
Yes
Switching Protocol
Ethernet
Remote Management Protocol
HTTP, HTTPS, Telnet, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3
Communication Mode
full-duplex, half-duplex
Miscellaneous
Rack Mounting Kit
included
Encryption Algorithm
MD5, SHA, SSL
Height (Rack Units)
1 m
Power
Features
Redundant Power System (RPS) connector
Features
Redundant Power System (RPS) connector
Interface Provided
Type
network stack device
Interface
Ethernet 10Base-T/100Base-TX/1000Base-T, RS-232
Qty
1, 2, 26
Connector Type
RJ-45, SFP (mini-GBIC)
Comments
management
Environmental Parameters
Min Operating Temperature
32 F
Max Operating Temperature
122 F
Humidity Range Operating
5 - 95%
Header
Brand
Alcatel
Product Line
Alcatel OmniStack
Model
LS 6224U
Country Kits
United States
Packaged Quantity
1
Compatibility
PC
Cable Details
Type
serial adapter
Included Qty
1
Form Factor
external
Ports
Type
SFP (mini-GBIC)
Qty
24
Ports (2nd)
Type
combo Gigabit SFP
Qty
2
Ports (3rd)
Type
10/100/1000
Qty
2
Slot Required
Type
none
Dimensions & Weight
Width
17.3 in
Depth
9.1 in
Height
1.7 in
Weight
7.72 lbs
General
Manufacturer
