TESTING & COSMETIC NOTES:
This is a NEW item in EXCELLENT cosmetic condition that IS IN ITS ORIGINAL PACKAGING and is GUARANTEED WORKING
The Switches are brand new in sealed OEM packaging.

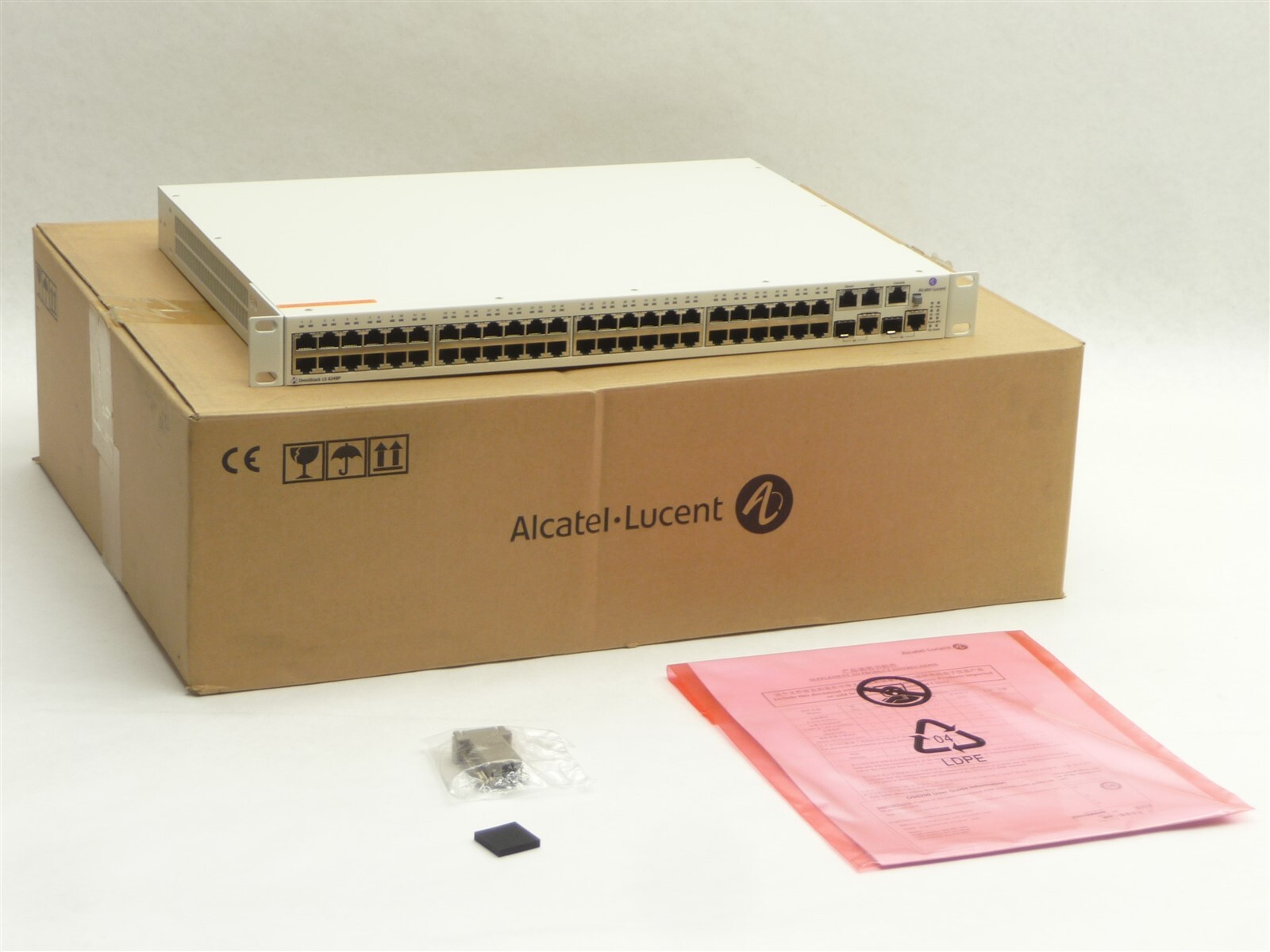

COMPONENTS INCLUDED IN THIS sale:• (1) - NEW ALCATEL-LUCENT OMNISTACK OS-LS-6248P OS-LS-6200 48 ETHERNET PORT 2 SFP 2 GIGABIT SFP POE MANAGED GIGABIT SWITCH
• (2) - RACK EARS
• (1) - DOCUMENTATION PACKAGE
• (1) - MANUFACTURER ORIGINAL BOX AND PACKAGING
• (1) - POWER CORD
REPLACEMENT or MONEY BACK GUARANTEE:When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:The following information is supplied by the Manufacturer and describes this product in general:
General
Device Type
Switch - 48 ports - managed - stackable
Enclosure Type
Desktop 1U
Subtype
Fast Ethernet
Ports
48 x 10/100 (PoE) + 2 x combo Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE)
PoE
Authentication Method
RADIUS, TACACS+
MAC Address Table Size
8K entries
Authentication Method
RADIUS, TACACS+
Power Over Ethernet (PoE)
PoE
Status Indicators
Link activity, power, link OK
Encryption Algorithm
SSL
Manufacturer
Nokia
Power Device
Nominal Voltage
AC 120/230 V
Frequency Required
50/60 Hz
Power Consumption Operational
465 Watt
Type
internal power supply
Networking
Cabling Type
Ethernet 100Base-TX, Ethernet 10Base-T
MAC Address Table Size
8K entries
Subcategory
network hubs and switches
Subtype
Fast Ethernet
Form Factor
desktop
Type
switch
Stackable
stackable
Connectivity Technology
wired
Features
Access Control List (ACL) support, BOOTP support, Syslog support, VLAN support, auto-negotiation, auto-uplink (auto MDI/MDI-X), event log, layer 2 switching, port mirroring, power over Ethernet (PoE), Broadcast Storm Control, DHCP support, Dynamic ARP Inspection (DAI), High Availability, IGMP snooping, MAC address filtering, Quality of Service (QoS), SNTP support
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
Ports Qty
48
Manageable
Yes
Switching Protocol
Ethernet
Remote Management Protocol
HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 3, Telnet
Power Over Ethernet (PoE)
PoE
Miscellaneous
Compliant Standards
FCC Class A certified, TUV GS, EN 60950, EN50081-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-6, VCCI Class A ITE, EN55022 Class A, UL 60950, EN50082-1, CB, CSA C22.2 No. 60950-00, CSA NRTL/C, EN 60555-3, EN 60555-2, RoHS, WEEE, IEC 60068-2-32, IEC 60068-2-6
Rack Mounting Kit
included
Encryption Algorithm
SSL
Localization
United States
MTBF
50000 sec
Height (Rack Units)
1 m
MTBF
50,000 hours
Power
Features
Redundant Power System (RPS) connector
Features
Redundant Power System (RPS) connector
Interface Provided
Qty
1, 2, 48
Connector Type
SFP (mini-GBIC)
Comments
PoE, management
Environmental Parameters
Min Operating Temperature
32 F
Max Operating Temperature
122 F
Humidity Range Operating
5 - 95%
Header
Brand
Alcatel
Product Line
Alcatel OmniStack
Model
LS 6248P
Country Kits
United States
Packaged Quantity
1
Compatibility
PC
Cable Details
Type
serial adapter
Included Qty
1
Form Factor
external
Ports
Type
10/100 (PoE)
Qty
48
Ports (2nd)
Type
combo Gigabit SFP
Qty
2
Ports (3rd)
Type
10/100/1000
Qty
2
Slot Required
Type
none
Dimensions & Weight
Width
17.3 in
Depth
13 in
Height
1.7 in
Weight
12.13 lbs
General
Manufacturer
