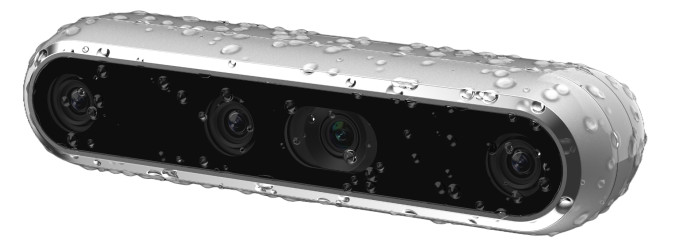

The RealSense™ Depth Camera D457 is their first GMSL/FAKRA high bandwidth stereo camera. The D457 has an IP65 grade enclosure protecting it from dust ingress and projected water. D457 has an on-board Maxim serializer chip. A Maxim de-serializer is needed at host side to decode the streams.
New, unused and in bulk packaging.
Includes USB-C cable but no tripod or GMSL cable.Note: When connected via USB-C the camera is able to perform as a D455 and all three streams can be received.Note: D457 has an on-board Maxim serializer chip. A Maxim de-serializer is needed at host side to decode the streams.Use EnvironmentIndoor/OutdoorImage Sensor TechnologGlobal ShutterIdeal Range.6 m to 6 mDepth TechnologyStereoscopicMinimum Depth Distance (Min-Z) at Max Resolution~52 cmDepth Accuracy<2% at 4 mDepth Field of View (FOV)87° × 58°Depth Stream Output ResolutionUp to 1280 × 720Depth Stream Output Frame RateUp to 90 fpsRGB Frame Resolution1280 × 800RGB Frame Rate30 fpsRGB Sensor TechnologyGlobal ShutterRGB Sensor FOV90° × 65°RGB Sensor Resolution1 MPCamera ModuleRealSense Module D450Vision Processor BoardRealSense Vision Processor D4Form factorCamera PeripheralCamera Dimension
(Length × Height × Depth)124 mm × 29 mm × 36 mmConnectorsGMSL/FAKRAMounting Mechanism– One 1/4‑20 UNC thread mounting point
– Two M4 thread mounting points
– Tripod
