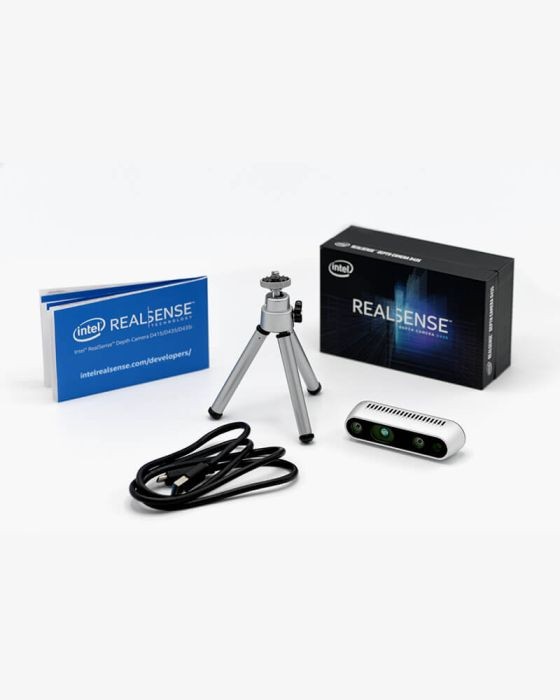

New Intel RealSense AI Depth Camera D435 Retail Boxed 82635AWGDVKPRQ 961448Brand new in retail packaging with USB-C cable and tripod.
The RealSense™ Depth Camera D400 Series uses stereo vision to calculate depth. The D435 is a USB-powered depth camera and consists of a pair of depth sensors, RGB sensor, and infrared projector. It is ideal for makers and developers to add depth perception capability to their prototype.
- A powerful vision processor that uses 28 nanometer (nm) process technology and supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output.
- New advanced stereo depth algorithm for accurate depth perception.
- A set of image sensors that enable capturing of disparity between images up to 1280 x 720 resolution.
- Support for the cross-platform, open-source RealSense™ SDK 2.0.
- Dedicated color image signal processor for image adjustments and scaling color data.
- Active infrared projector to illuminate objects to enhance the depth data.
RealSense™ Depth Camera D435 is designed to best fit your prototype. With the global image shutter and wide field of view (85.2° x 58° x 94°), RealSense™ Depth Camera D435 offers accurate depth perception when object is moving or device is in motion, and it covers more area, minimizing “blind spots”.
Use EnvironmentIndoor/OutdoorImage Sensor TechnologGlobal ShutterIdeal Range.3 m to 3 mDepth TechnologyStereoscopicMinimum Depth Distance (Min-Z) at Max Resolution~28 cmDepth Accuracy<2% at 2 mDepth Field of View (FOV)87° × 58°Depth Stream Output ResolutionUp to 1280 × 720Depth Stream Output Frame RateUp to 90 fpsRGB Frame Resolution1920 × 1080RGB Frame Rate30 fpsRGB Sensor TechnologyRolling ShutterRGB Sensor FOV69° ×42°RGB Sensor Resolution2 MPCamera ModuleRealSense Module D430 + RGB CameraVision Processor BoardRealSense Vision Processor D4Form factorCamera PeripheralCamera Dimension
(Length × Depth × Height)90 mm × 25 mm × 25 mmConnectorsUSB-C* 3.1 Gen 1*Mounting Mechanism– One 1/4‑20 UNC thread mounting point
– Two M3 thread mounting points
