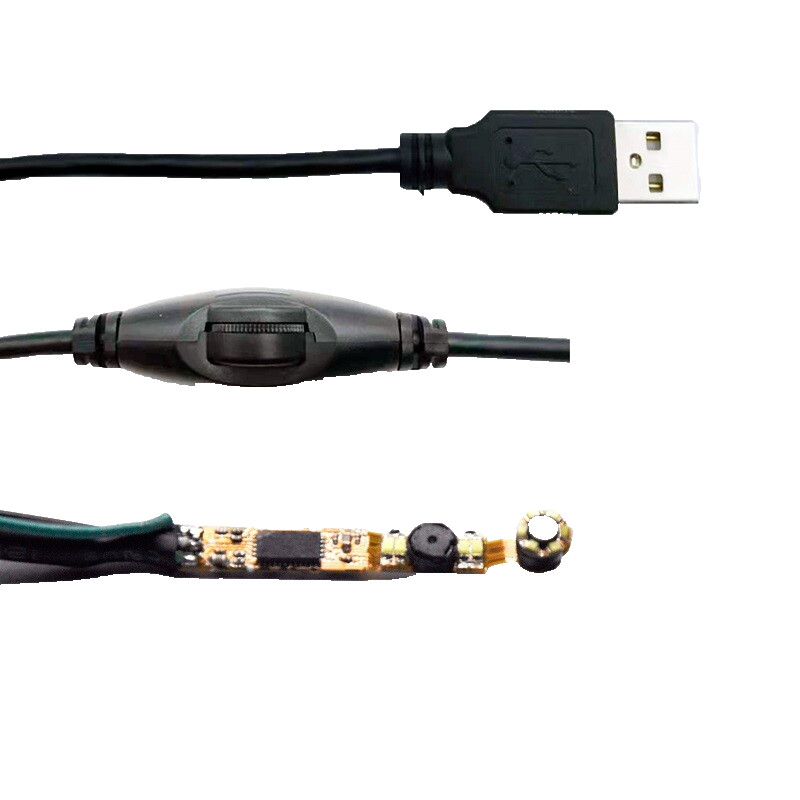

OV9734 USB Endoscope Borescope Inspection Camera Module for Phone Android PC
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
OV9734 USB Endoscope Borescope Inspection Camera Module for Phone Android PC
Price: CN $40.99
Product Parameters:·Module Size: 30.11*3.9mm·Pixel Size: 1.4*1.4μm·Sensor:1/9 Inch OV9734 CMOS Sensor·Max. Resolutions: 1280H*720V·Frame Rate: 30fps·Output Format: MJPEG, YUY2·Field of View: 62°·Focus Mode: Fixed Focus·Shutter Mode: Electronic Rolling Shutter·Compatibility: UVC-compliant, Plug and Play·Cable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure·Supported OS:Windows, Android, Linux, Wince, Mac OS

Supported Resolution and Frame Rate

Format

Resolution

Frame Rate (USB2.0)

MJPEG

1280x720 (720P)

30FPS

640x480 (VGA)

30FPS

YUY2

1280x720 (720P)

10FPS

640x480 (VGA)

25FPS

PIN Definition

Pin No.

Signal Name

Description

1

GND

GND

2

DM

USB2.0 Data-

3

DP

USB2.0 Data+

4

VCC

5V

5

LED

LED+

6

SWITCH

Short-circuit with GND

Working Condition

Operating Voltage

USB DC +5V Supply

Operating Current

90mA

Operating Temperature

-20℃~ 70℃

Storage Temperature

-20℃~ 85℃

Humidity

80 ~85%
